F2000 10 Wheels Water Tank Truck

F2000 10 Wheels Water Tank Truck

Need Any Help?

For any further inquiries, please don’t hesitate to get in touch. We’re here and eager to provide any assistance you may need.

Email us

Truck Details

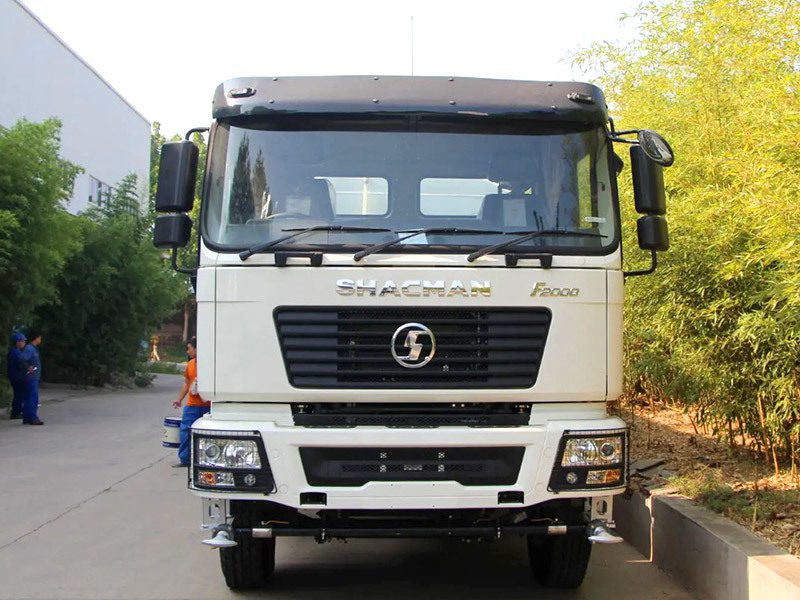

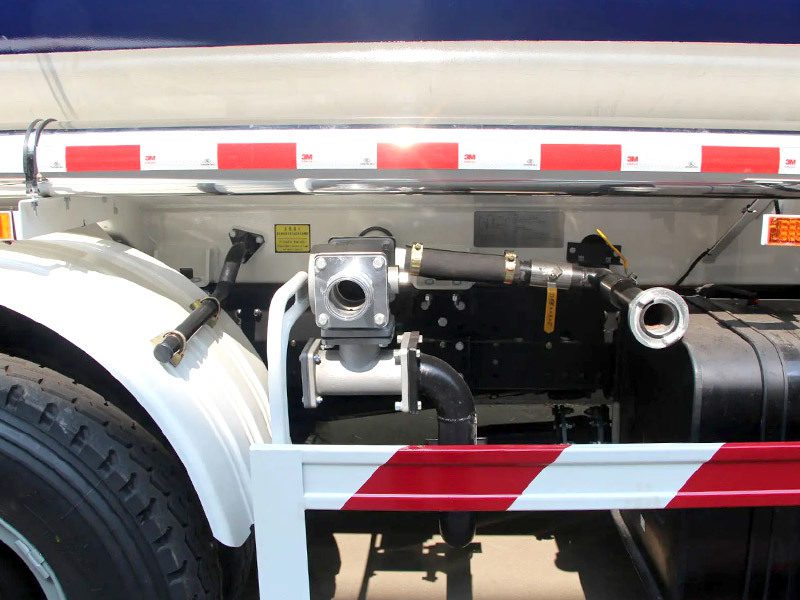

Shacman F2000 6×4 Sprinkler Truck has forward flushing, rear sprinkling, side spraying, a working platform behind the tank, and a green sprinkling anti-aircraft gun installed on the platform. The sprinkler can rotate 360 ° in all directions. It can be continuously adjusted to direct impact, heavy rain, moderate rain, light rain, drizzle, etc. A special high-power sprinkler pump with a fire connector, gravity valve, self-priming, and self-drainage functions is selected.

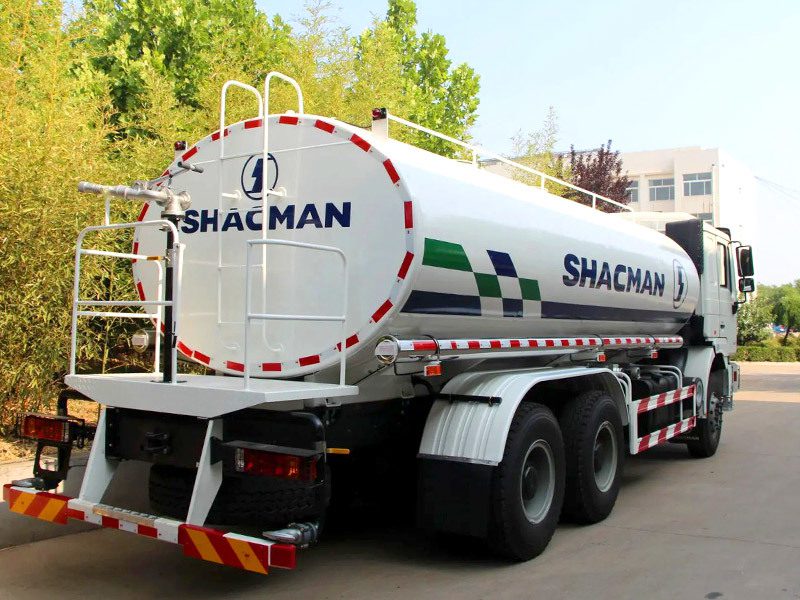

The sprinkler tank body is oval or square and round in structure, made of high-quality carbon steel, formed at one time by large plate bending machine, advanced equipment and automatic welding process, with more beautiful appearance and excellent sealing performance. The water tank of the whole vehicle is 2-3 rooms, the lower end of the middle diaphragm is provided with a through hole, and the tank is equipped with anti swing and anti wave diaphragm. The diaphragm in the tank has anti wave function to reduce the impact of liquid in the tank when the vehicle is driving. The surface of 6×4 Sprinkler Truck shall be coated with antirust paint and decorative paint.

Transport type	Shacman F2000 Sprinkler
Logistics type	Water
Distance(km)	≤50
Road type	Paved roads
Drive	6×4
Max weight(t)	≤40
Crusing speed/Max speed(km/h)	90
Loaded speed(km/h)	50~70
Vehicle model	SX5255GSSJN434
Engine	WP10.340E22
Emission standard	Euro Ⅱ
Displacement	9.726L
Rated output	220kw
Max. torque	1240N·m
Transmission	RTD11509C+QH50
Clutch	430
Frame	850×300(8+5)
Front axle	MAN 7.5T
Rear axle	13T MAN double reduction 5.262
Tire	12.00R20
Front Suspension	Multi-leaf springs
Rear Suspension	Multi-leaf springs
Fuel	Diesel
Capacity of the fuel tank	400L ( Aluminum shell )
Battery	165Ah
Dimensions(L×W×H)	9700x2490x3300
Volume(m³)	20
Wheelbase	4375+1400
Approach/Departure angle(°)	25/19
Max.gradeability(%)	34

Cab	Type	Shacman F2000, lengthened flat roof
	Equipments	◆Rear window ◆Mechanical clerestory ◆Hydraulic suspension of the cab ◆Hydraulic driver seat with seatbelts ◆One sleeping bed ◆Hydraulic reversal ◆Radio with MP3 player
	Optional	● Air-cushioned driver’s seat ●Full vehicle WABCO valve ●Electronic air conditioning with temperature control

FAQ

Frequently Asked Questions

Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.

What are the certifications for your products?

We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.

Do you provide custom made Products service?

Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.

What ports of shipment are there?

Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.

what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW；Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French

About product warranty?

Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
