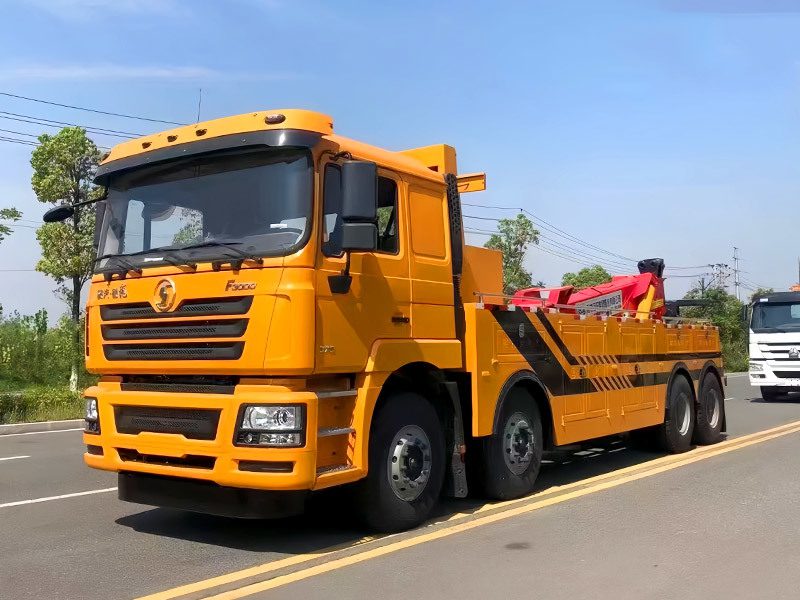

Shacman F3000 tow truck is fully functional and equipped with various tow trucks, such as lifting cranes, trailers, carts, shears, cutters, electric winches, etc., which can quickly and efficiently handle various types of traffic accident vehicles on the road. . Shacman F3000 tow truck plays an important role in ensuring road traffic safety. In traffic-intensive areas such as coastal areas and highways, the use of Shacman F3000 tow truck can effectively reduce traffic congestion and traffic safety incidents caused by road accidents. In special environments, such as rain, snow, fog, night and other bad weather conditions, Shacman F3000 tow trucks can also play an important role in ensuring smooth roads and traffic safety. Shacman F3000 tow trucks are not only widely used in China, but also exported overseas and have been highly praised by overseas users. It not only represents the high-level manufacturing technology of China’s automobile industry, but also demonstrates the quality and reputation of Made in China.

Model	Shacman F3000  Rescue truck
Drive type	8×4
Engine	Brand	WEICHAI
	Model	WP10.375E22
	Power/(kw/HP)	280kW / 375Hp
	Maximum torque / (N.M)/rpm	2060 N·M
	Displacement/(L)	11.596 L
	Emission standard	Euro II
Gear box	Brand	FAST
	Model	12JSD200T-B+QH50
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
	Dimensions/(mm)	850×300(8+7)
Suspension	Front	Multi-layered leaf springs with 4 Main springs+4 U Bolts
	Rear	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand	HANDE
	Front axle	9.5T front axle MAN technology
	Rear axle	16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires	Type	12.00R20
Fuel tank	Tank capacity/(L)	300L Aluminum tank
Electrics	Type	24V
	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN X3000 Medium-length flat cab
	Equipment	Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

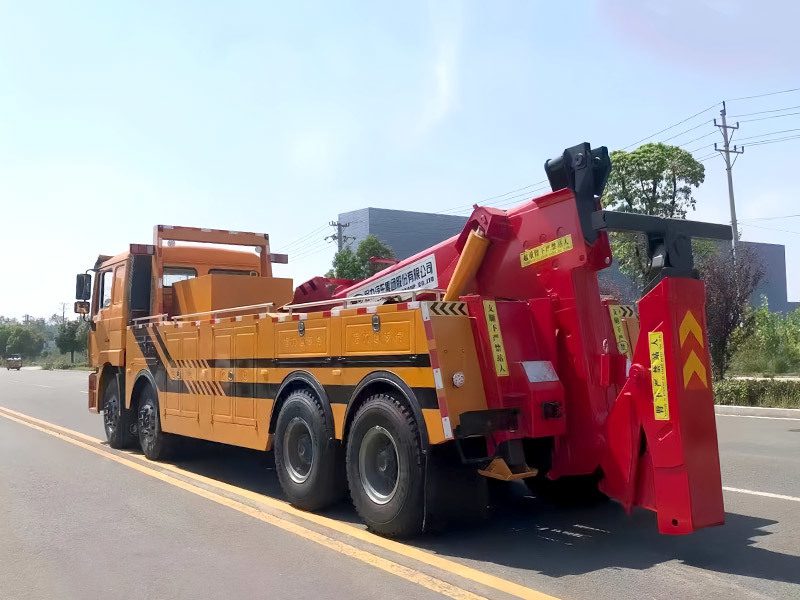

Crane information	25T20D joint top, inlet valve, two-section six-sided boom, 25 tons of three-section bracket, split carriage (carriage electroplating), two-side linkage operation device, two ten-ton hydraulic winch, 45 meters steel wire rope, diameter of 18MM, with four sets of steel forks, a set of tow fork, a set of steel plate lug tow fork, a set of tire holding device, a long row of engineering alarm lights, One set of auxiliary lights, one set of auxiliary gas pipe assembly, two binding chains, three wireless remote control operations of the rear bracket arm, and the rest are standard.
