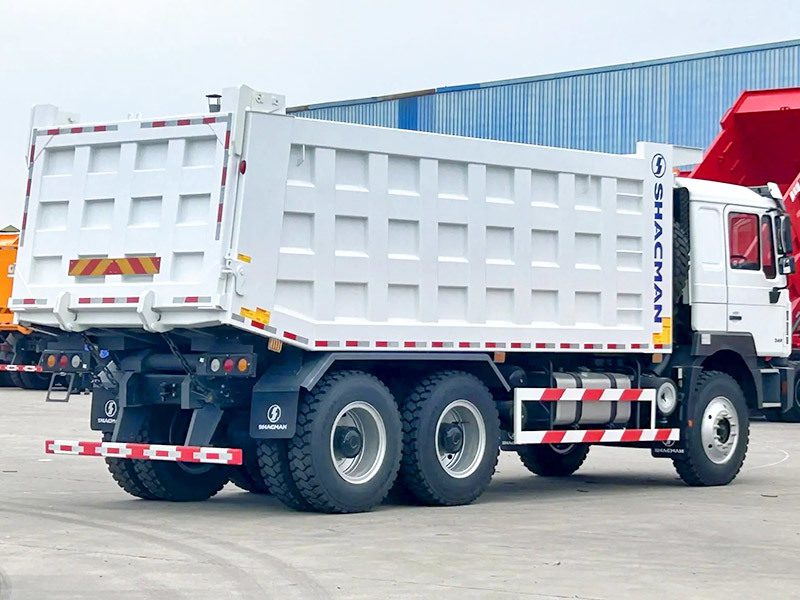

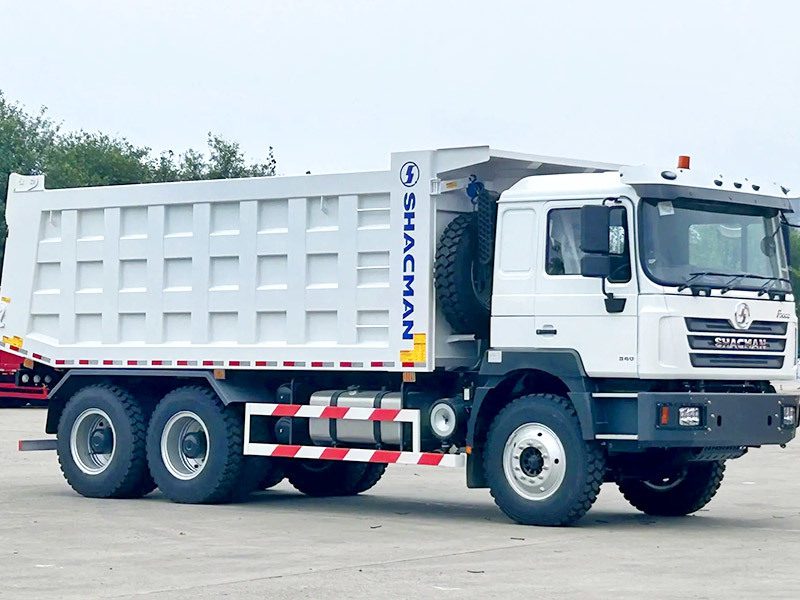

Shacman F3000 6×4 Construction Dump Truck can traverse nearly all types of terrain without any problems, and it often works at mining and off-road construction sites. It features high transmission torque due to its Ф430mm large friction clutch. It is generally used for short-distance specific route operation, and the carrying capacity is its absolute advantage. It is a truck that is equipped with a hydraulic lifting mechanism that can lift the cargo box for automatic unloading.
Transport type | Mining engineering |
Logistics type | Ore / sand / gravel / coal |
Distance(km) | ≤200 |
Road type | Offroad/Paved roads |
Drive | 6×4 |
Max weight(t) | ≤50 |
Max speed(km/h) | 75 |
Loaded speed(km) | 40~55 |
Vehicle model | SX3255DR384 |
Engine | WP10.340E22 |
Emission standard | Euro Ⅱ |
Displacement | 9.726L |
Rated output | 250kW |
Max.torque | 1400N·m |
Transmission | 10JSD180+QH50 |
Clutch | 430 |
Frame | 850×300(8+7) |
Front axle | MAN 9.5T |
Rear axle | 16T MAN double reduction 5.262 |
Tire | 12.00R20 |
Front Suspension | Multi leaf springs |
Rear Suspension | Multi leaf springs |
Fuel | Diesel |
Capacity of the fuel tank | 400L |
Battery | 165Ah |
Dimensions(L×W×H) | 7600×2490×3250 |
Trunk(LxWxH) | 5600×2300×1300 |
Wheelbase | 3775+1400 |
Approach/Departure angle(°) | 25/60 |
Max.grade ability(%) | 35 |
Cab | Type | SHACMAN F3000, mid-lengthened flat roof | |
Equipments | ◆Rear window ◆Mechanical clerestory ◆Hydraulic suspension of cab ◆Hydraulic driver seat with seatbelts ◆One sleeping bed ◆Hydraulic reversal ◆Radio with MP3 player |
||
Optional | ●Air cushioned drivers seat ●Front lamp protection grid ●Oil bath air filter |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
