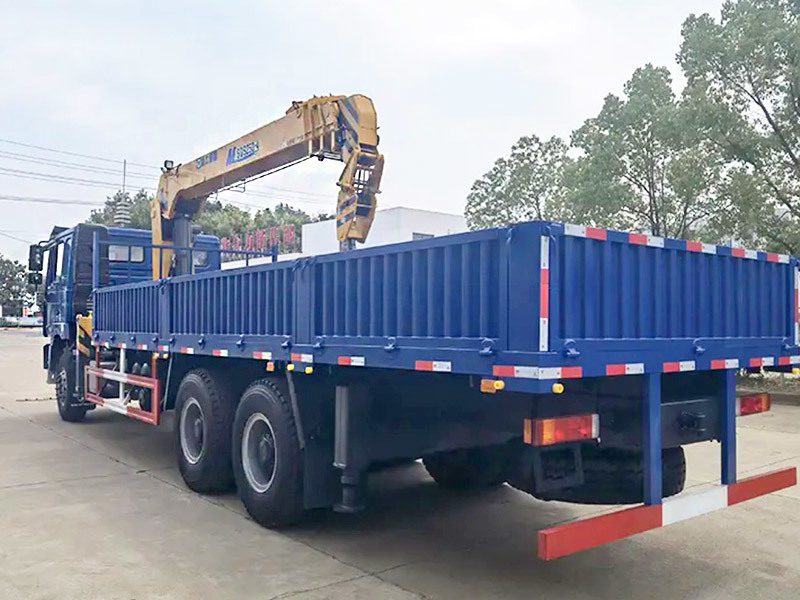

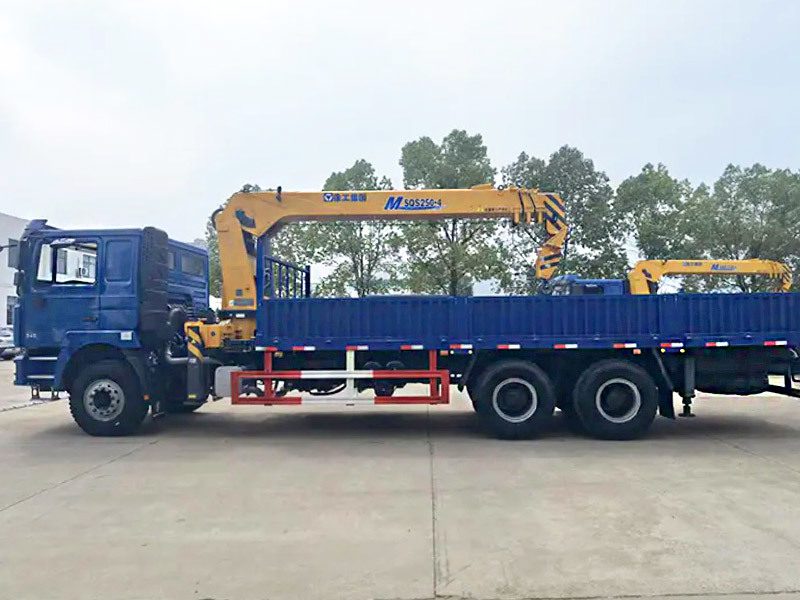

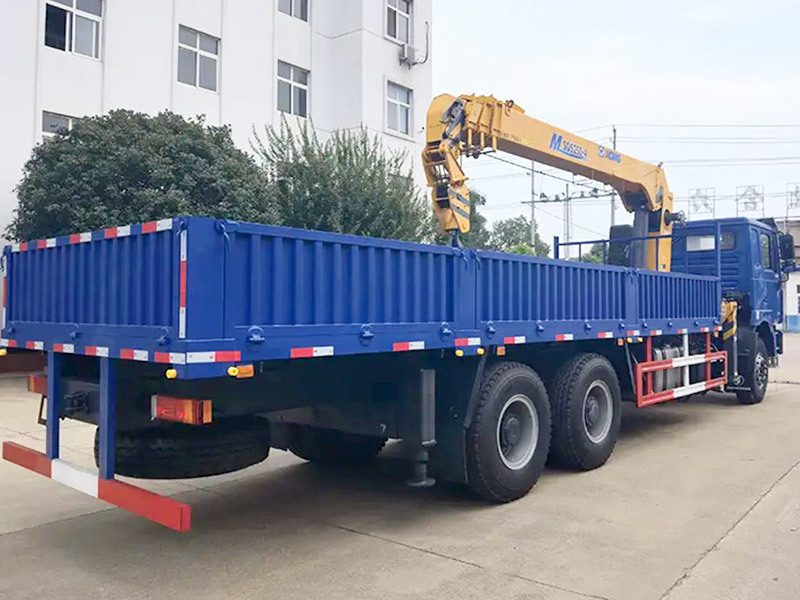

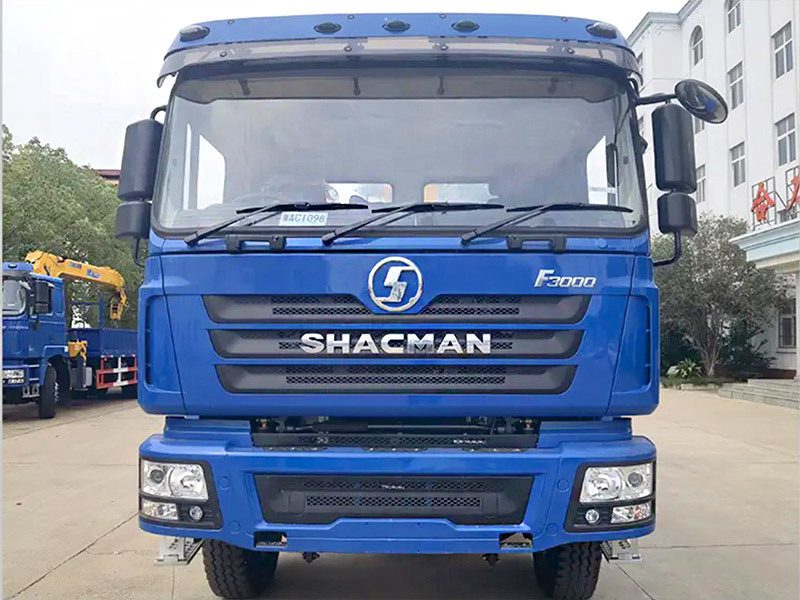

Shacman F3000 6×4 Crane Truck has the characteristics of high power, convenient after-sales, and has played a great role in today’s economic and social life. Shacman F3000 6×4 Crane Truck belongs to the top beam column in transportation and logistics. It is mainly used to transport some nonremovable objects like excavators, loaders, and harvesters. It is widely used in the short-distance transportation of various bulk goods. Reduce transportation costs and improve work efficiency.
Cargo Crane Truck Parameters | ||
Model | SX5255JSQDR584 | |
Drive type | 6×4 | |
Weight | Gross Vehicle Weight | ≤35 |
Dimensions | Wheelbase/(mm) | 5775+1400 |
Performance | Maximum speed/(km/h) | 50~70/90 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP10.340E22 | |
Power/(kw/HP) | 250kw / 300Hp | |
Maximum torque / (N.M)/rpm | 1400 N·M | |
Displacement/(L) | 9.726 L | |
Emission standard | Euro/ II | |
Gear box | Brand | FAST |
Model | RTD-11509C+QH50 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+5+8) | |
Suspension | Front | Multi-layer plate spring: 4 main plates + 4 U-shaped bolts |
Rear | Multi-layer plate spring: 4 main plates + 4 U-shaped bolts | |
Axles | Brand | HANDE |
Front axle | 7.5T front axle MAN technology | |
Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN F3000 Medium-length flat cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo. | |
Superstructure parameters | ||
Crane lifting type | Hydraulic | |
Crane capacity | 5-16ton | |
container size | 5800*2350*600mm(customized ) | |
container material | High-strength carbon steel | |
Container thickness | 3mm Side,4mm bottom |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
