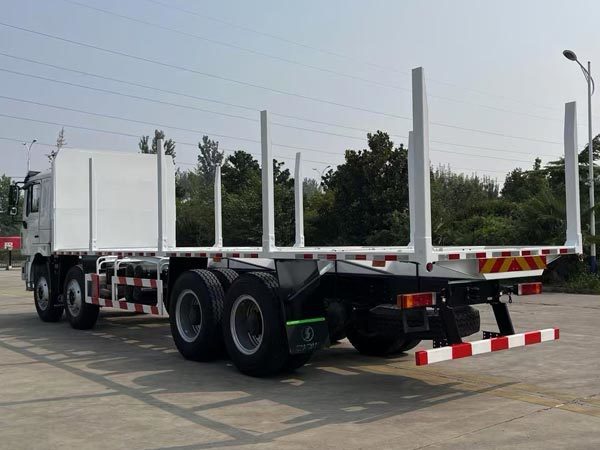

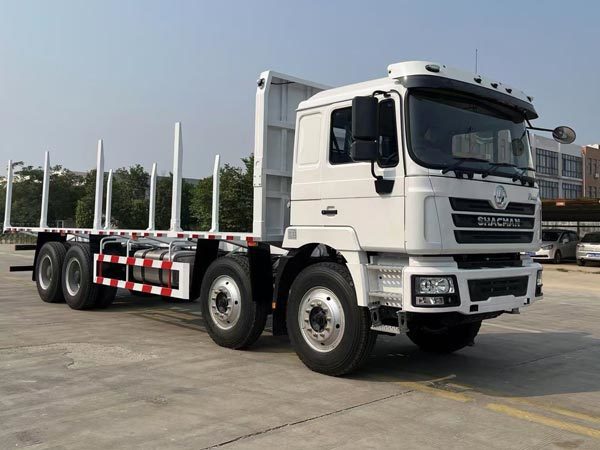

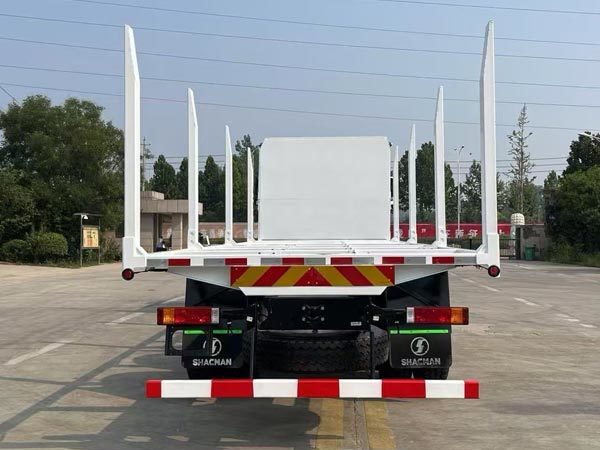

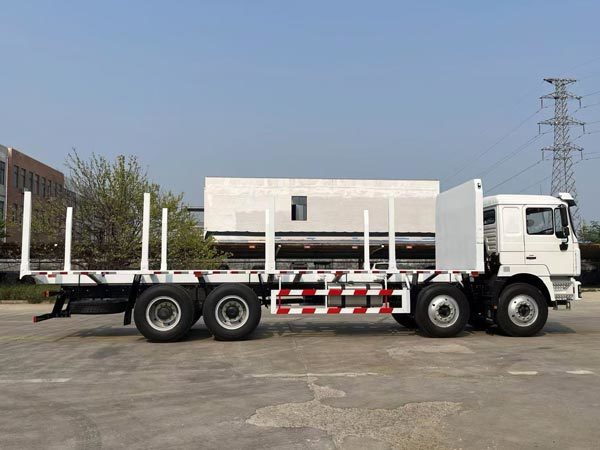

The chassis exterior parameters of this car are 9660mm x 3350mm x 3400mm. The mounted equipment was carried on the chassis of the vehicle and modified by CIMC . This is a folding type of wood transport vehicle, before entering the forest area, the rear trailer can be folded and collected into the main vehicle to increase the passability of entering the forest area, and then put it down when entering the loading area, for transporting some long logs. The car uses a rear eight-wheel specification chassis, which can be understood as a tractor combination, with a towed nose in the front and a trailer in the back, designed for mobility. The car’s technology and design have made it still popular in overseas markets, demonstrating the refit potential and practicability of the Shaanxi Automobile Shacman F3000.

Transport type	Complex transport
Logistics type	Wood, building materials, steel, ceramic tile, etc
Distance(km)	≤500km
Road type	Paved roads
Drive	8×4
Max weight(t)	≤50
Crusing speed/Max speed(km/h)	90
Loaded speed(km/h)	50~65
Vehicle model	SX3255DV384
Engine	WP10.380E22
Emission standard	Euro Ⅱ
Displacement	11.596L
Rated output	294kW
Max. torque	1800N·m
Transmission	12JSD200T-B
Clutch	430
Frame	850×300(8+5 )
Front axle	MAN 7.5T
Rear axle	13T MAN double reduction 4.769
Tire	12.00R20
Front Suspension	Multi-leaf springs
Rear Suspension	Multi-leaf springs
Fuel	Diesel
Capacity of the fuel tank	400L( Aluminum shell )
Battery	165Ah
Dimensions(L×W×H)	11600×2490×3250
Trunk(L×W×H)	9500×2300×800
Wheelbase	1800+4575+1400
After the suspension	2300
Approach/Departure angle(°)	18/12
Max.gradeability(%)	34
