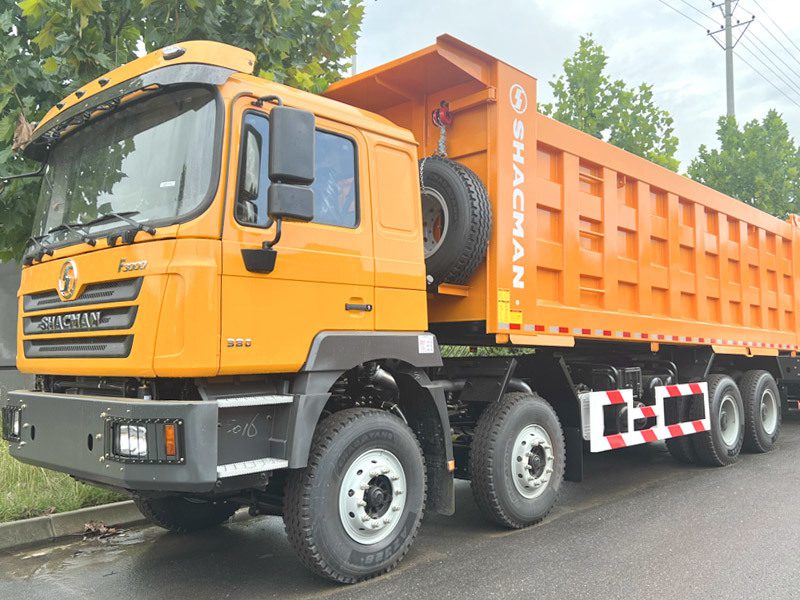

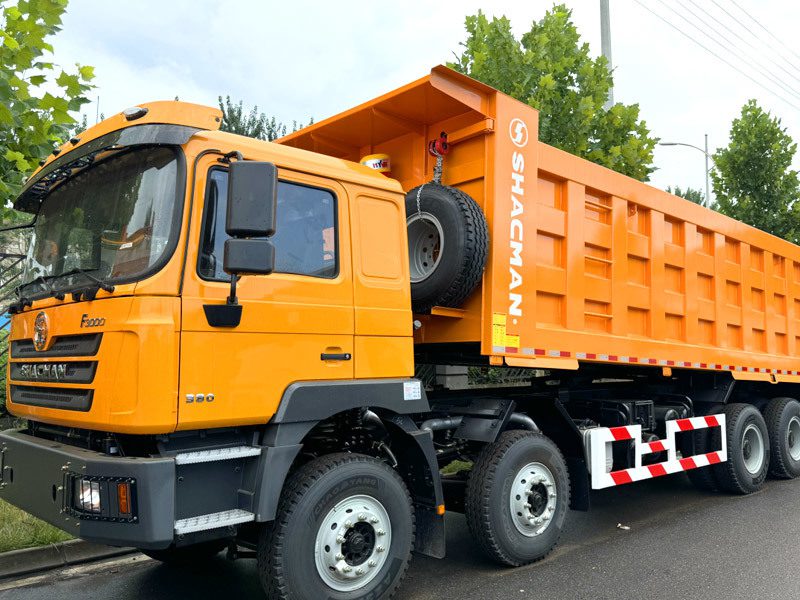

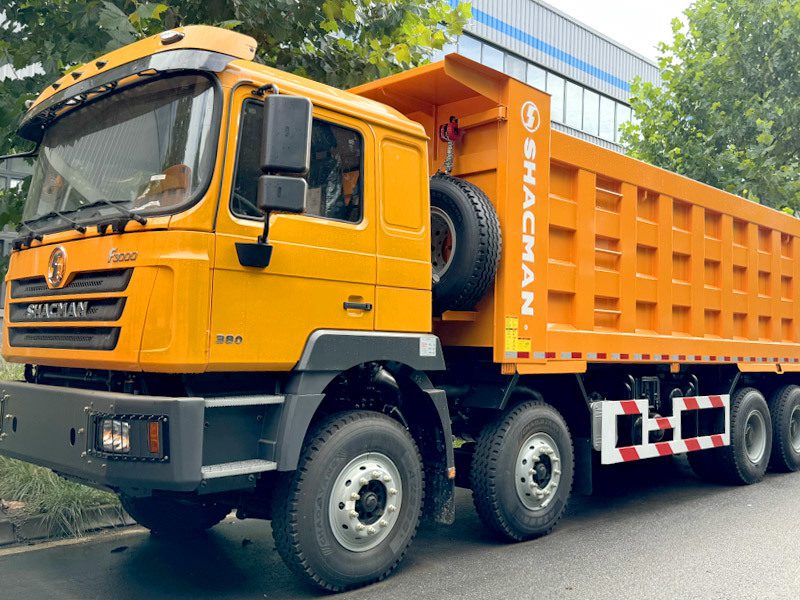

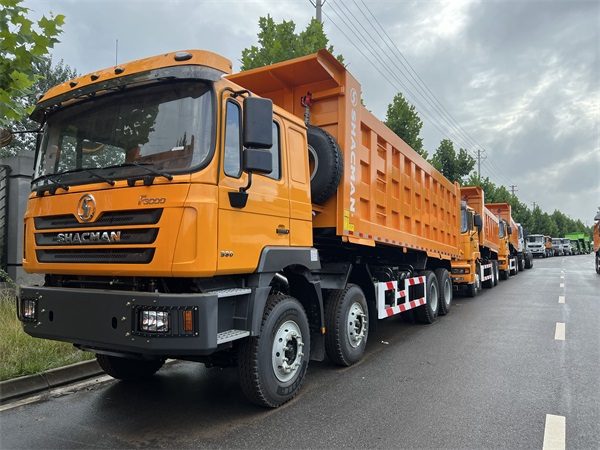

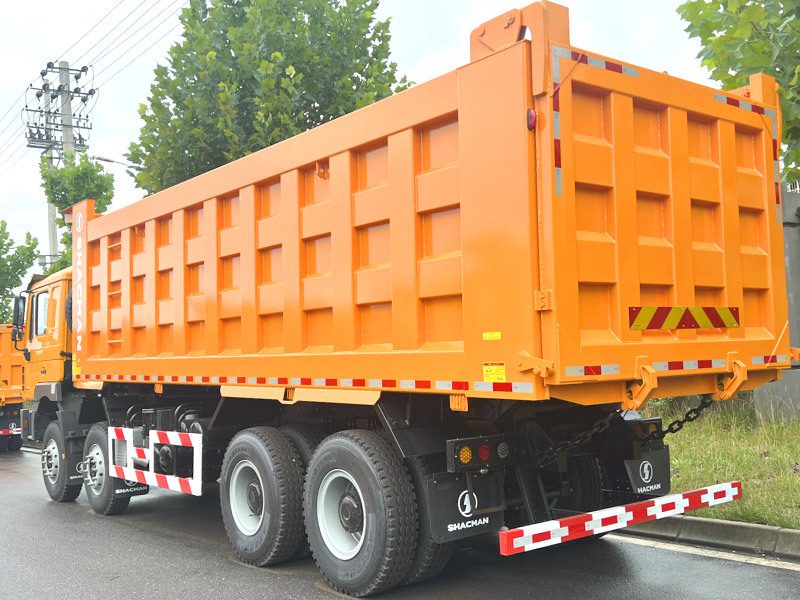

Shacman F3000 Series 8×4 Construction Dump Truck is a kind of special hopper that can be tipped over for short-distance conveying materials. It is designed and produced according to the standard, and all the indexes of this product meet the standard. It is equipped with a hydraulic brake, which is smooth, safe, and reliable, and improves the mechanical efficiency. It adopts gravity unloading and bumping block type mechanical return bucket, which is easy to operate. Also, this truck has low fuel consumption, improves the efficiency of power transmission, and is easy to maintain.
Transport type | Mining engineering |
Logistics type | Ore/sand/gravel/coal |
Distance(km) | ≤200 |
Road type | Off-road/Paved roads |
Drive | 6×4 |
Max weight(t) | ≤50 |
Max speed(km/h) | 75 |
Loaded speed(km) | 40~55 |
Vehicle model | SX3315DT366 |

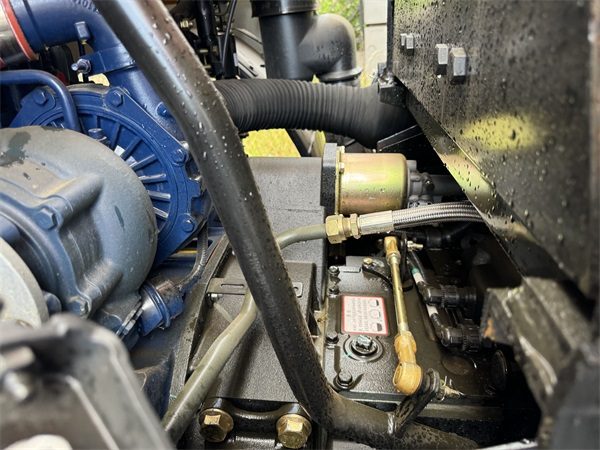

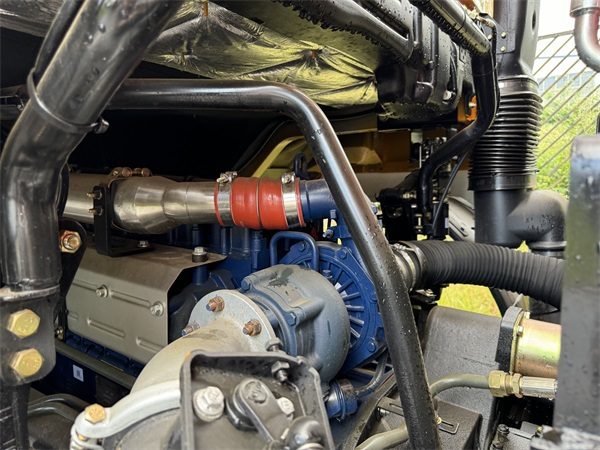

Engine | WP10.380E22 |
Emission standard | Euro Ⅱ |
Displacement | 9.726L |
Rated output | 250kW |
Max. torque | 1400N·m |
Transmission | 10JSD180+QH50 |
Clutch | 430 |
Frame | 850×300(8+7) |
Front axle | MAN 9.5T |

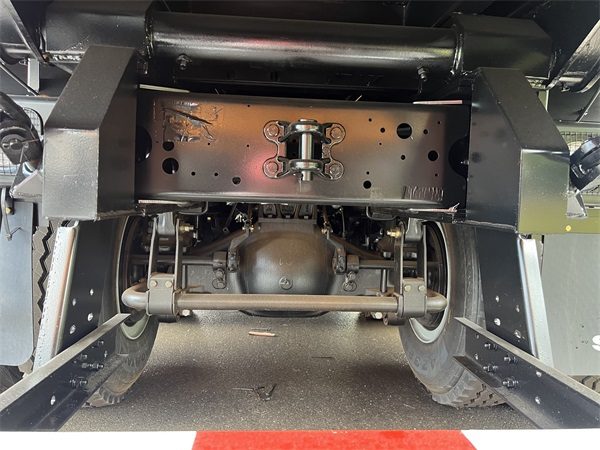

Rear axle | 16T MAN double reduction 5.262 |
Tire | 12.00R20 |
Front Suspension | Multi-leaf springs |

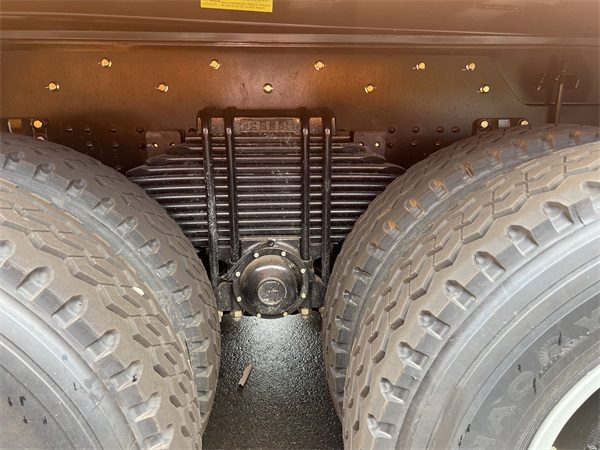

Rear Suspension | Multi-leaf springs |
Fuel | Diesel |
Capacity of the fuel tank | 400L |

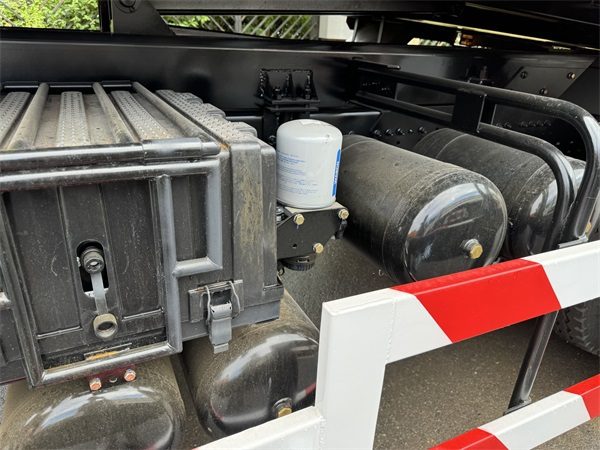

Battery | 165Ah |
Dimensions(L×W×H) | 10329x2490x3450 |
Trunk(LxWxH) | 7400X2300X1500 |
Wheelbase | 3775+1400 |
Approach/Departure angle(°) | 25/60 |
Max.gradeability(%) | 35 |
Cab | Type | SHACMAN F3000, mid-lengthened flat roof | |
Equipments | ◆Rear window ◆Mechanical clerestory ◆Hydraulic suspension of the cab ◆Hydraulic driver seat with seatbelts ◆One sleeping bed ◆Hydraulic reversal ◆Radio with MP3 player |
||
Optional | ● Air-cushioned driver’s seat ●Front lamp protection grid ●Oil bath air filter |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
