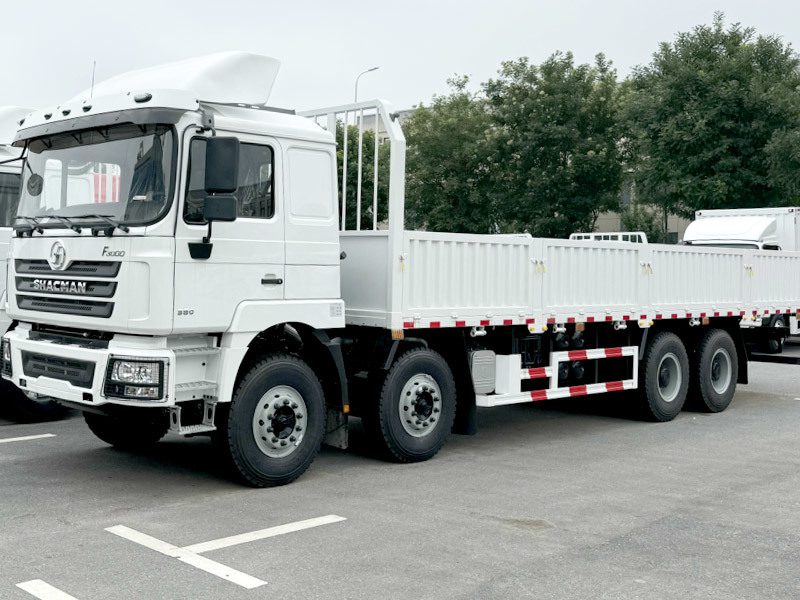

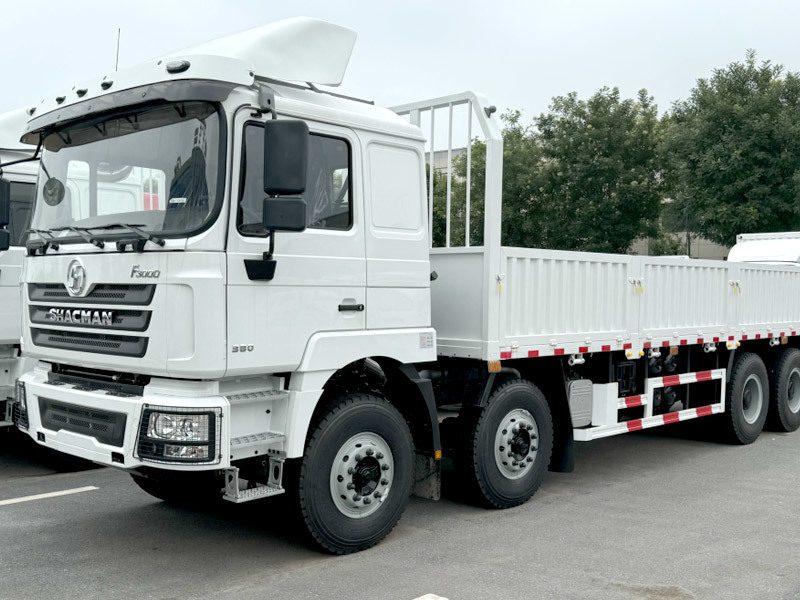

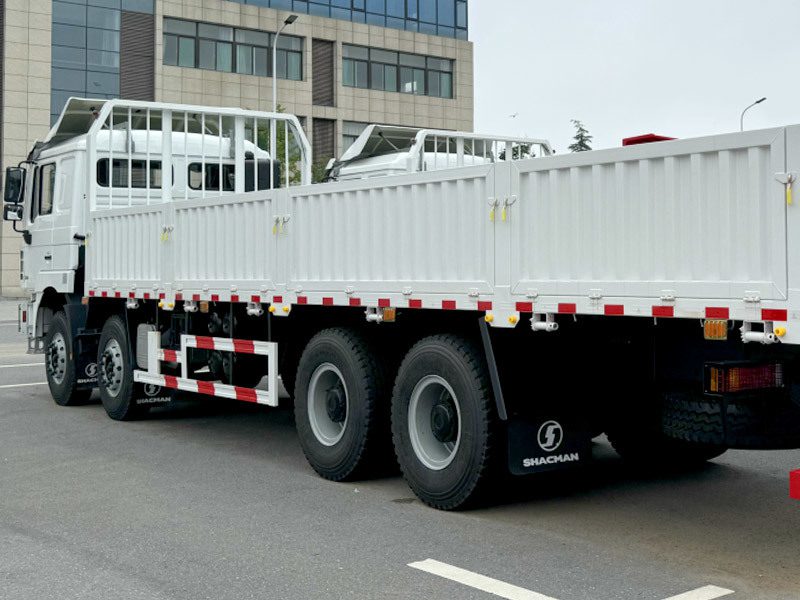

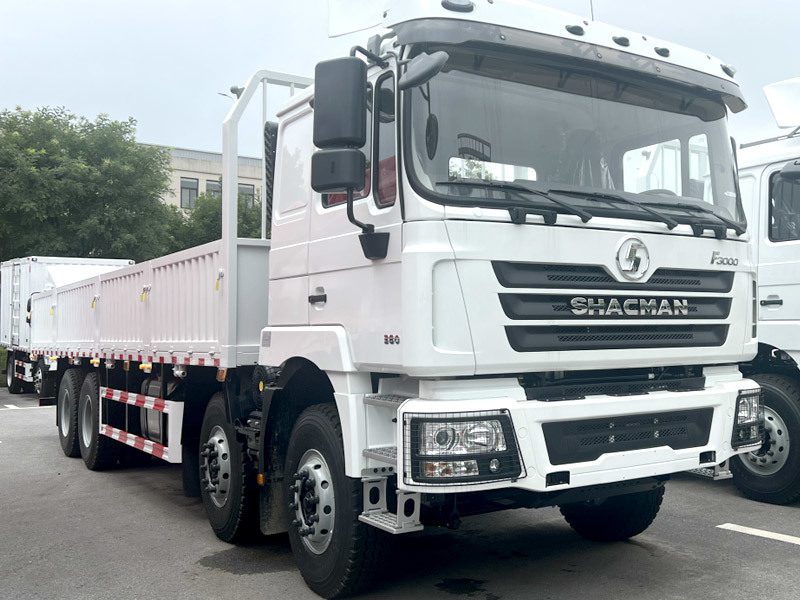

Shacman F3000 8×4 Box Cargo Truck adopts a six speed manual transmission, which is an all aluminum shell, and the later maintenance is also convenient. The tires are made of high-quality brands and do a good job in tire noise control and durability. The front and rear wheels are made of aluminum alloy, which effectively reduces the unsprung quality, improves the handling, and reduces the vehicle weight control.
Its oil tank is made of traditional plastic with good corrosion resistance. Shacman F3000 8×4 Box Cargo Truck body is made of flame retardant materials to effectively protect the safety of the car body. The bottom plate of the car body is spliced without waste, with uniform stress, durability, anti leakage and good sealing. The chassis girder and cross beam are made of channel steel, which has stronger bearing capacity.
Transport type | Complex transport |
Logistics type | Wood, building materials, steel, ceramic tile, etc |
Distance(km) | ≤500km |
Road type | Paved roads |
Drive | 8×4 |
Max weight(t) | ≤50 |
Crusing speed/Max speed(km/h) | 90 |
Loaded speed(km/h) | 50~65 |
Vehicle model | SX1315JU456 |

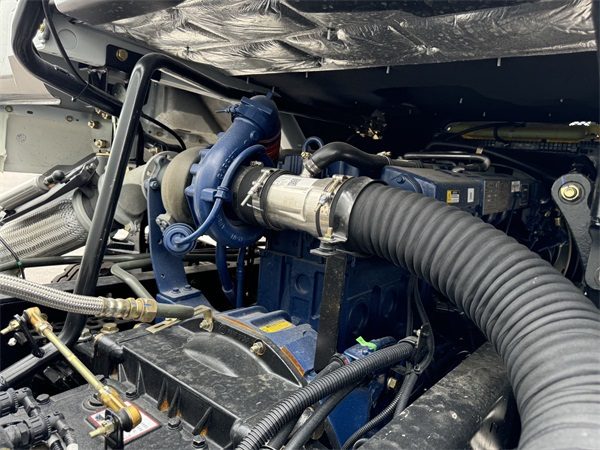

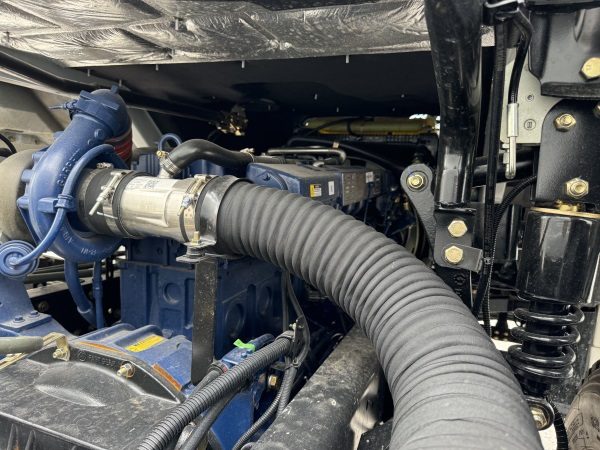

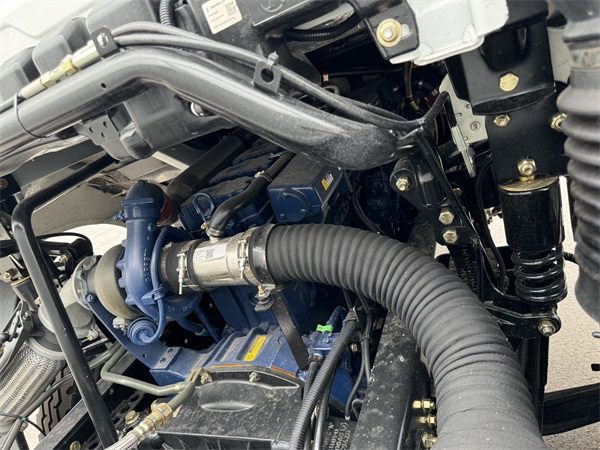

Engine | WP10.380E22 |
Emission standard | Euro Ⅱ |
Displacement | 11.596L |
Rated output | 294kW |
Max. torque | 1800N·m |
Transmission | 12JSD200T-B |
Clutch | 430 |
Frame | 850×300(8+5 ) |
Front axle | MAN 7.5T |

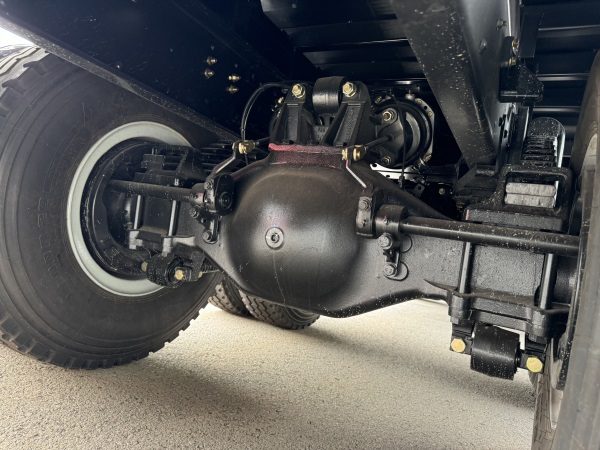

Rear axle | 13T MAN double reduction 4.769 |
Tire | 12.00R20 |

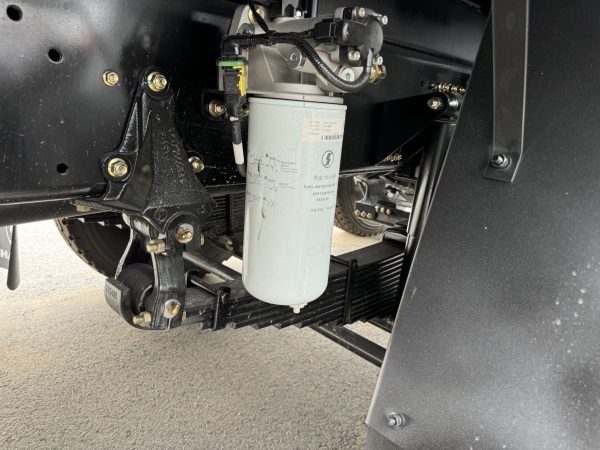

Front Suspension | Multi-leaf springs |
Rear Suspension | Multi-leaf springs |
Fuel | Diesel |
Capacity of the fuel tank | 400L( Aluminum shell ) |
Battery | 165Ah |
Dimensions(L×W×H) | 11600×2490×3250 |
Trunk(L×W×H) | 9500×2300×800 |
Wheelbase | 1800+4575+1400 |
After the suspension | 2300 |
Approach/Departure angle(°) | 18/12 |
Max.gradeability(%) | 34 |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
