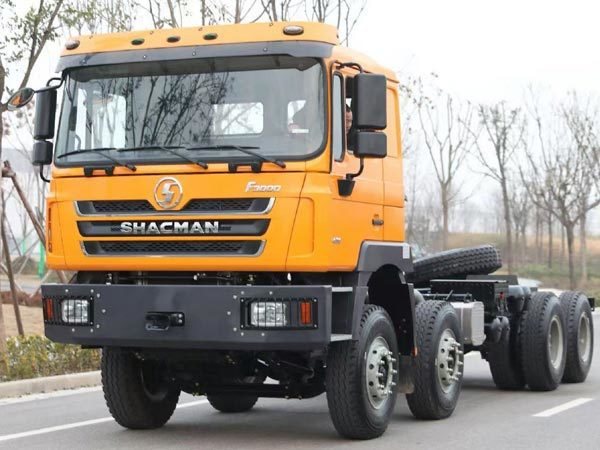

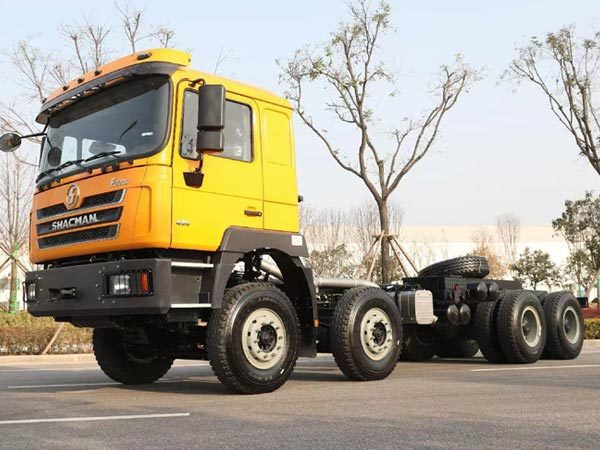

Shacman F3000 truck chassis provides various configuration options to meet the needs of different users. These configurations include different drive forms, engine models, horsepower, gear, wheelbase, etc., to ensure that users can choose according to their usage scenarios and preferences.
Transport type | Complex transport |
Logistics type | Wood, building materials, steel, ceramic tile, etc |
Distance(km) | ≤500km |
Road type | Paved roads |
Drive | 8×4 |
Max weight(t) | ≤50 |
Crusing speed/Max speed(km/h) | 90 |
Loaded speed(km/h) | 50~65 |
Vehicle model | SX1315JU456 |
Engine | WP12.430N |
Emission standard | Euro Ⅲ |
Displacement | 11.596L |
Rated output | 294kW |
Max. torque | 1800N·m |
Transmission | 12JSD200T-B |
Clutch | 430 |
Frame | 850×300(8+5 ) |
Front axle | MAN 7.5T |
Rear axle | 13T MAN double reduction 4.769 |
Tire | 12.00R20 |
Front Suspension | Multi-leaf springs |

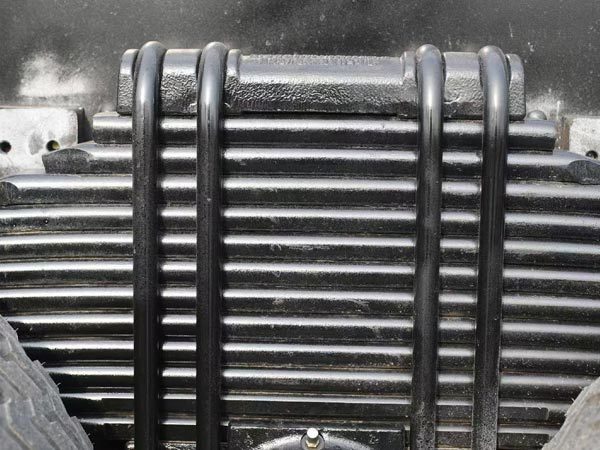

Rear Suspension | Multi-leaf springs |
Fuel | Diesel |
Capacity of the fuel tank | 400L( Aluminum shell ) |
Battery | 165Ah |
Dimensions(L×W×H) | 11600×2490×3250 |
Wheelbase | 1800+4575+1400 |
After the suspension | 2300 |
Approach/Departure angle(°) | 18/12 |
Max.gradeability(%) | 34 |
Cab | Type | SHACMAN F3000, mid-lengthened flat roof |
Equipments | ◆Rear window ◆Manual sunroof ◆Hydraulic driver seat with seatbelts ◆Hydraulic suspension of the cab ◆Electronic air conditioning with temperature control ◆Electric window ◆Radio with MP3 player |
|
Optional | ●Air cushioned driver’s seat ●Full vehicle WABCO valve |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
