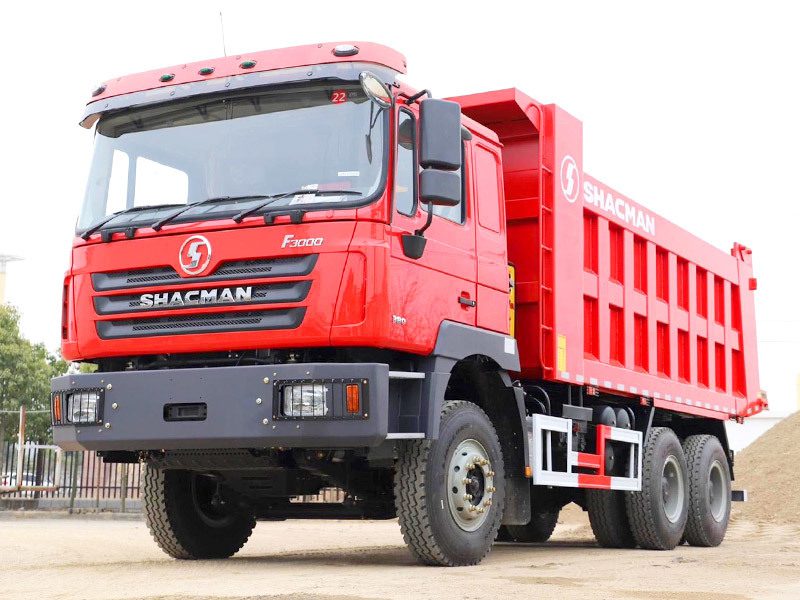

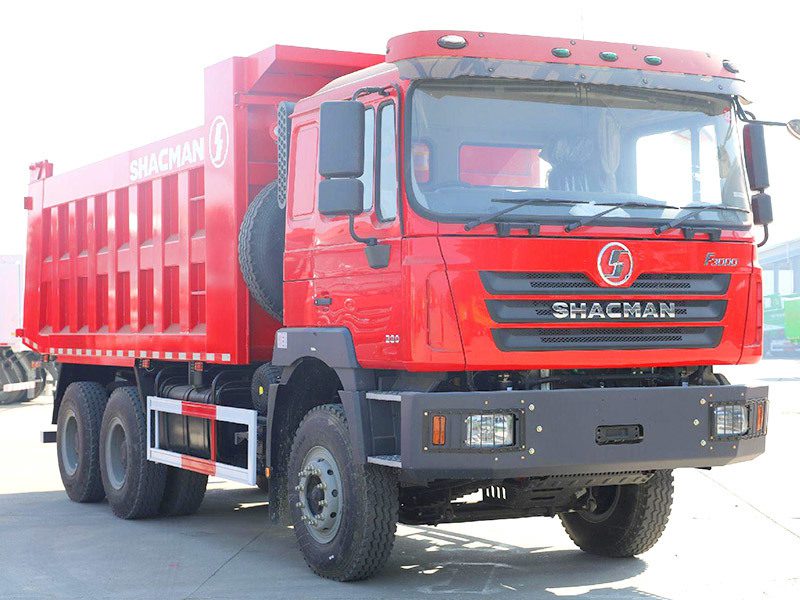

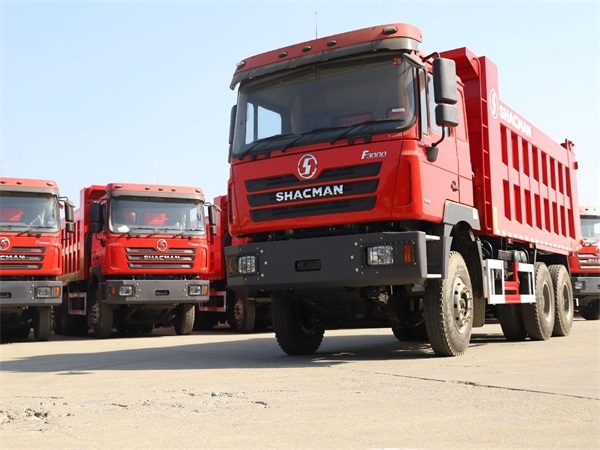

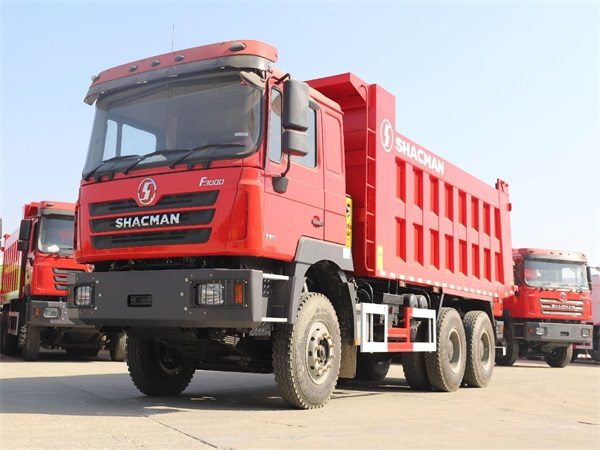

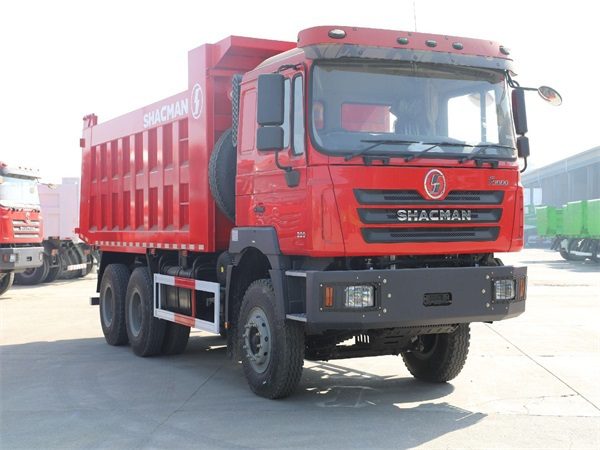

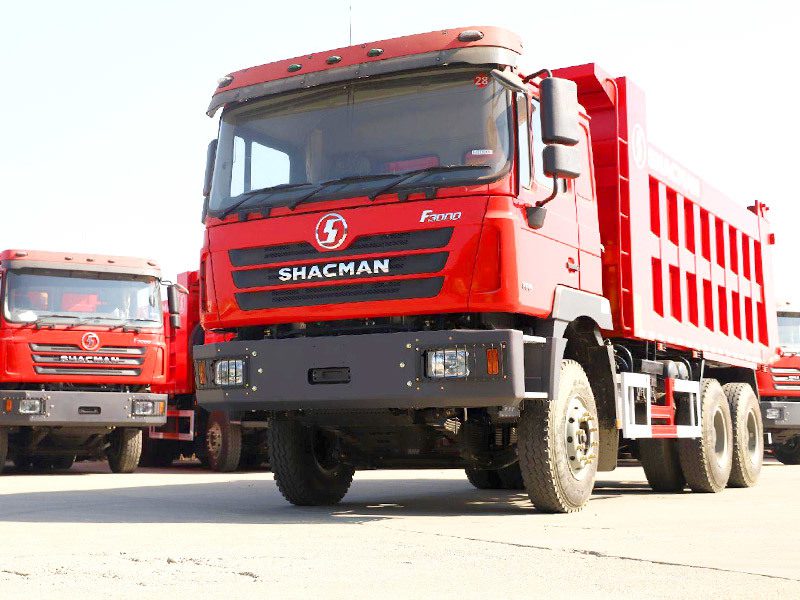

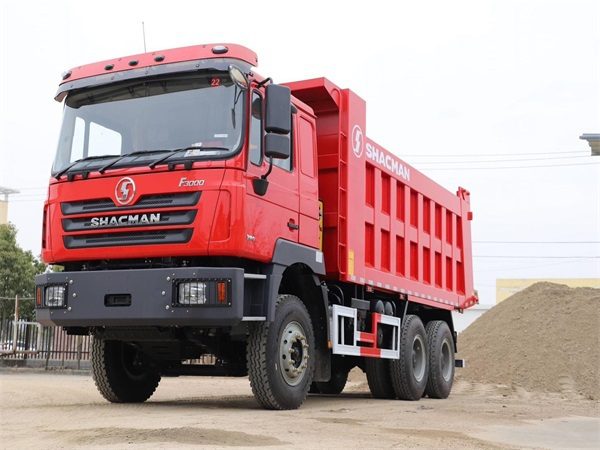

Shacman F3000 6×4 Construction Dump Truck can traverse nearly all types of terrain without any problems, and it often works at mining and off-road construction sites. It features high transmission torque due to its Ф430mm large friction clutch. It is generally used for short-distance specific route operation, and the carrying capacity is its absolute advantage. It is a truck that is equipped with a hydraulic lifting mechanism that can lift the cargo box for automatic unloading.
Model | SX3255DT384R | |
Drive type | 6*4 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 3975+1400 |
Performance | Maximum speed/(km/h) | 42~52/66 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP10.380E22 | |
Power/(kw/HP) | 279kw / 380Hp | |
Maximum torque /(N.m)/rpm | 1600 N·m | |
Displacement/(L) | 9.726 L | |
Emission standard/ | Euro/ II | |
Gear box | Brand | FAST |
Model | 10JSD180+QH50 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+7) | |
Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
Axles | Brand | HANDE |
Front axle | 9.5T front axle MAN technology | |
Rear axle | 2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 300L Aluminium tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Inner dimension of loading space(mm) | 5600x2300x1500 | |
Material thickness of loading(mm) | Bottom8,Side6 | |
Lifting mode | Multistage front lifting hydraulic system | |
Cab | Type | SHACMAN F3000 Medium-length flat roof cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, common rearview mirror, electric automatic thermostatic air conditioner, electric window shaker, manual flip, common air filter, metal bumper, two-stage pedal, water tank protection grill, 165Ah maintenance-free battery, SHACMAN logo, full English logo |
