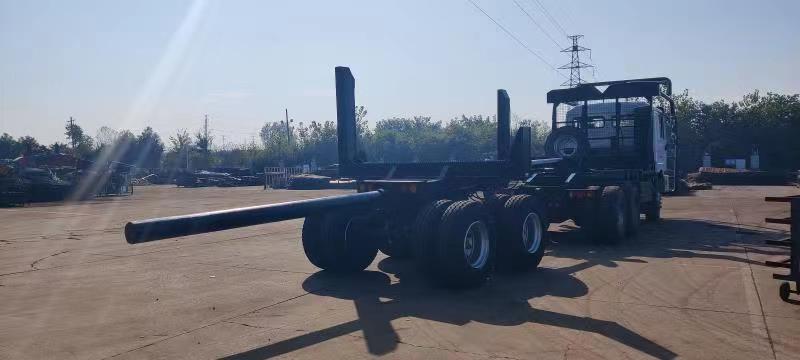

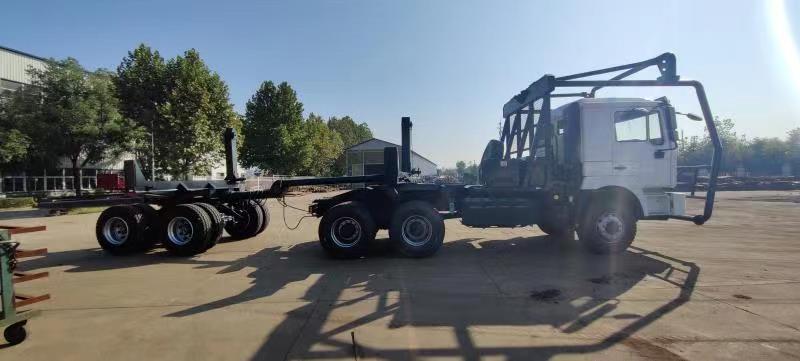

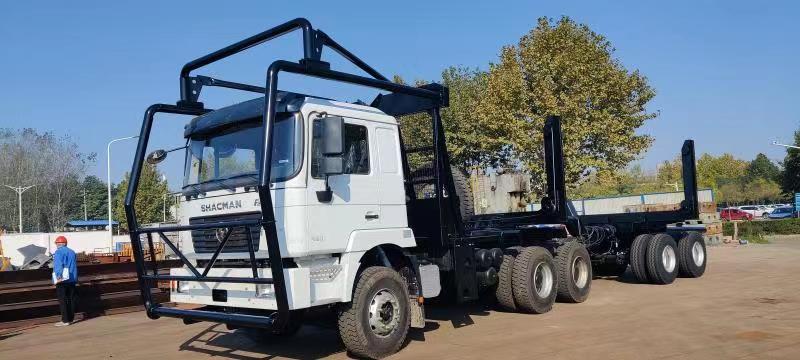

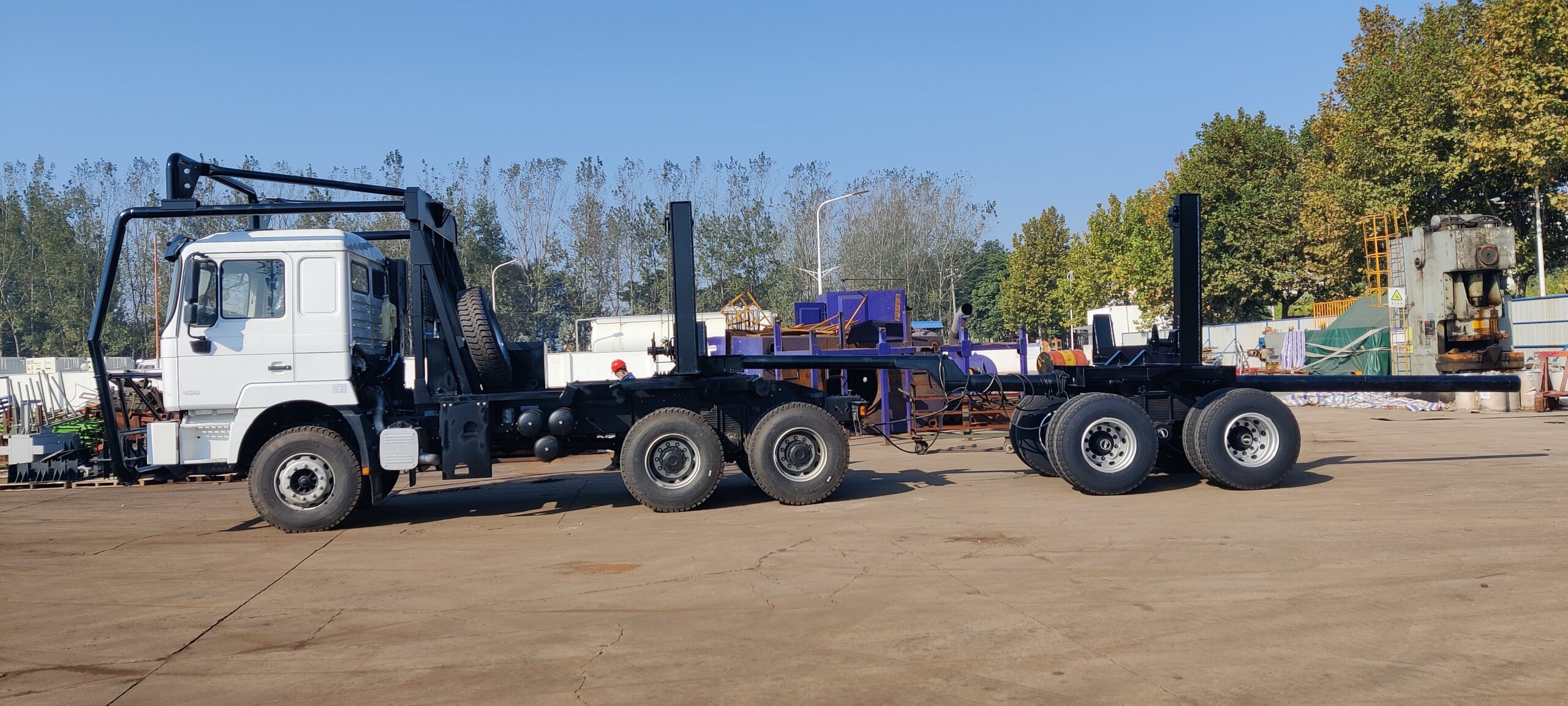

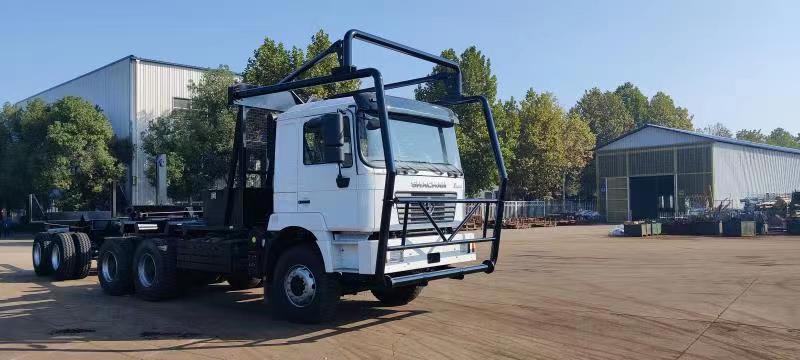

F3000 Transport Truck is a high-performance commercial vehicle specifically designed for the timber transportation industry. With its outstanding load capacity, excellent stability, and efficient power system, it has become an ideal choice for timber transportation.
Main specification |
||
Model | SX3255DV384 | |
Drive type | 6X4 | |
Wheelbases(mm) | 3775+1400 | |
Economic speed/Maximum speed (km/h) | 35~50/65 | |
GVW | ≤50T | |
Engine | Brand | WEICHAI |
Model | WP12.430E201 | |
Horsepower | 430HP | |
Emission standards | Euro II | |
Gear box | Brand | FAST |
Model | 12JSD200T-B | |
Chassis | Dimensions(mm) | 850×300(8+7) |
Suspension | Front | Front and rear multi-leaf springs
Four main films + four horses |
Rear | Front and rear multi-leaf springs
Four main films + four horses |
|
Axles | Brand | HANDE |
Front axle | 9.5 T front axle HD | |
Rear axle | 2*16T HD | |
Speed ratio | 5.92 | |
Tires | Type | 13R22.5 |
Fuel tank | Tank capacity(L) | 400L aluminum alloy fuel tank |
Cab | F3000 medium-length flat-top cab without top deflector, hydraulic main seat, ordinary rearview mirror, single cooling air conditioner, manual window shaker, manual flip, steel bumper, two-stage boarding pedal, no central lock, desert air filter, ordinary exhaust, domestic steering gear, ordinary steering wheel, center towing hook, front stabilizer bar, 165Ah maintenance-free battery, four-point hydraulic suspension, cab with trailer independent brake lever, SHACMAN logo, full English logo, special vehicle sign with “MADE IN CHINA”, cast front extension beam, additional fuel coarse filter, iron air tank, reversing buzzer, 32T jack, military rear tow hook, eight-shaped tail beam, telescopic shaft control. | |
Upper body | 16T Axle, without ABS; 32T boggie suspension, 2 line air braking system with air tank, emergency relay valve and braking chambers, square/zigzag type, 2000mm height*3100mm length*800mm height, with steel rope tensioner, 2*9M φ13.5mm & 2*6M φ19.5mm steel rope, etc. |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
