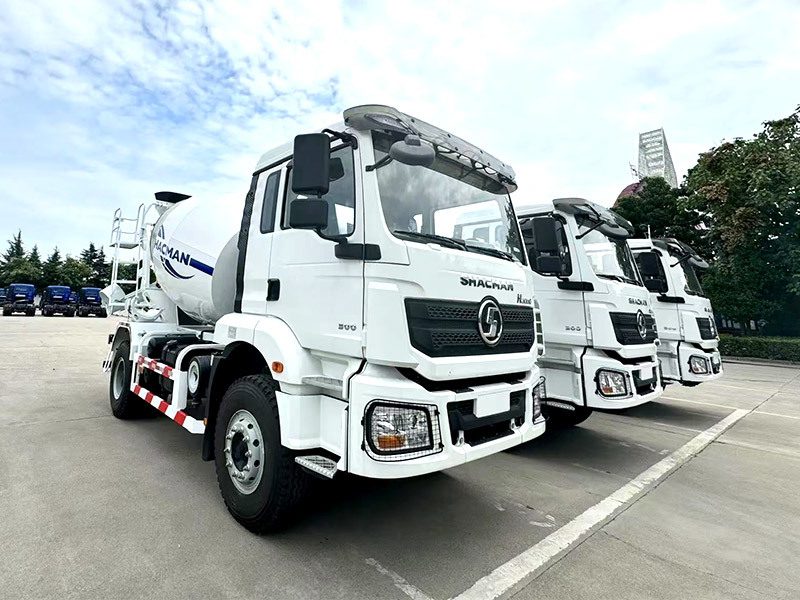

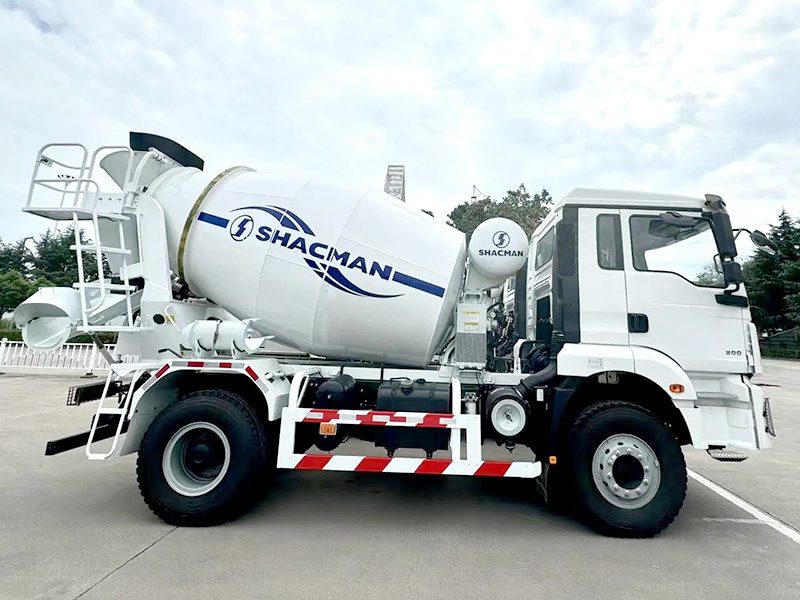

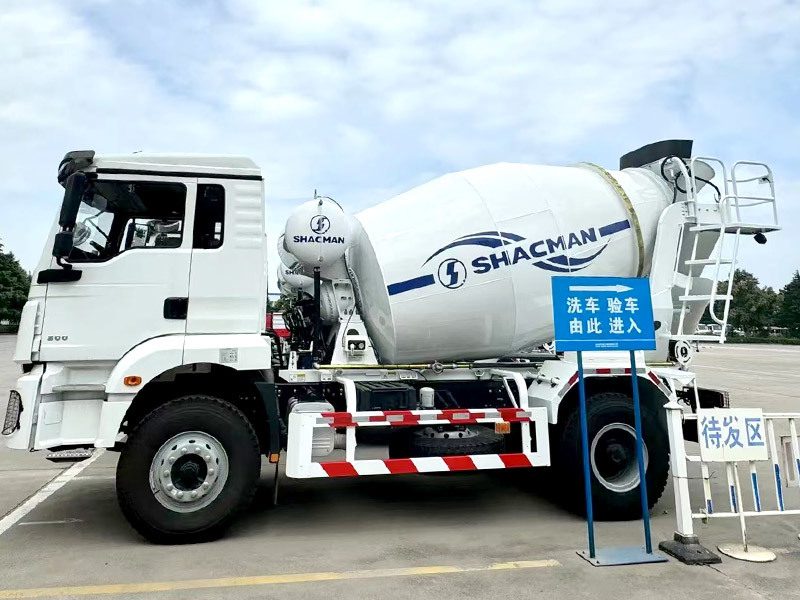

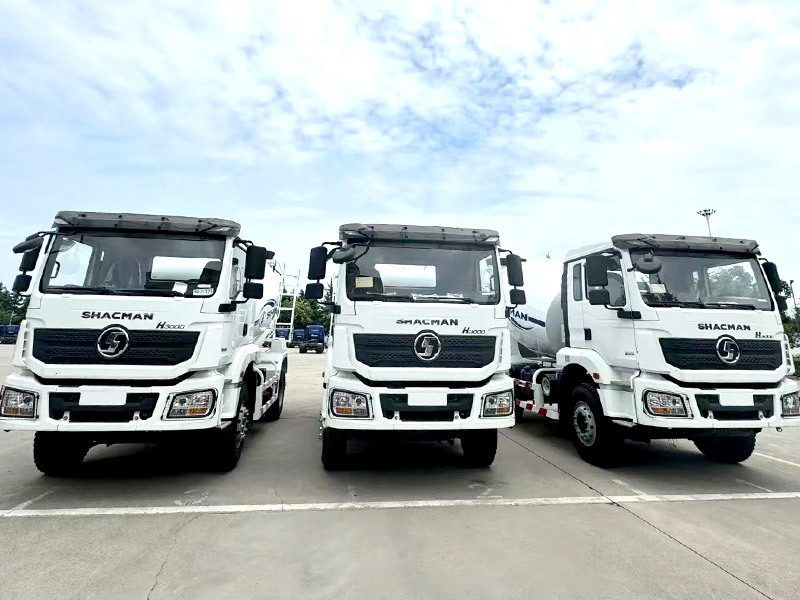

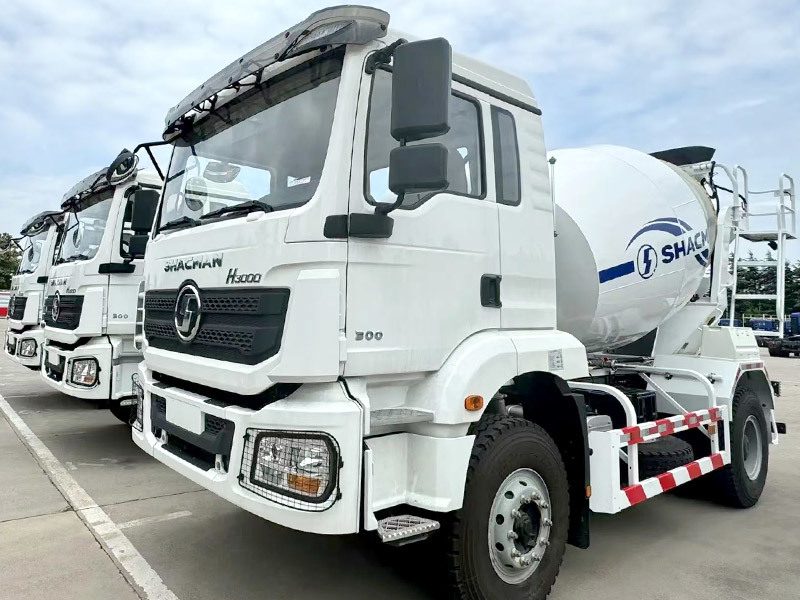

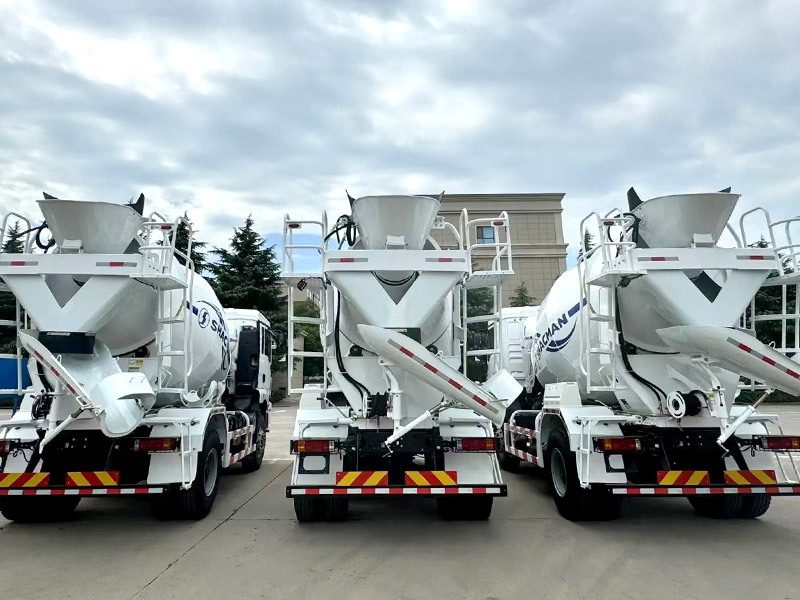

Shacman H3000 Mixer truck is also known as an in-transit mixer. Materials will be mixed and loaded into the mixer drum. It begins mixing at the Mixing Station. As it travels to the work site, the mixer keeps rotating to keep the concrete wet. Without the rotation, the concrete will get hard and unusable.
Transport type | Shacman H3000 Mixer transportation | ||
Logistics type | Concrete | Bulk cement | |
Distance(km) | ≤50 | ≤300 | |
Road type | Paved roads | ||
Drive | 6X4 | ||
Max weight(t) | ≤50 | ≤70 | |
Load/Volume | ≤9-10 | ≤25 | |
Max speed(km/h) | 40~55/80 | 40~55/80 | |
Loaded speed(km/h) | 30~65 | 30~65 | |
Vehicle model | SX5255GJBJT384 | SX5255GSNJM434 | |
Engine | WP10.340E32 | WP10.290E32 | |
Emission standard | Euro II | Euro II | |
Displacement | 9.7L | 9.7L | |
Rated Output | 250kw | 213kw | |
Max. torque | 1350N.m | 1160N.m | |
Transmission | 9JS135 | 9JS119+QH50 | |
Clutch | 430 | ||
Frame | 850X300(8+7) | 850X300(8+5) | |
Front axle | MAN 7.5T | ||
Rear axle | 16T STR double reduction5.262 | ||
Tire | 12.00R20 | 12.00R20 | |
Front Suspension | Multi-leaf springs | Multi-leaf springs | |
Rear Suspension | Multi-leaf springs | Multi-leaf springs | |
Fuel | Diesel | ||
Capacity of the fuel tank | 380L | 400L | |
Load/Volume | 6m³ | 8m³ | |
Approach/Departure angle( °) | 20/18 | 20/18 | |
Max.grade ability(%) | 34 | 27 | |
Cab | Type | ♦ Ring curtain ♦ Real window ♦ Manual sunroof ♦ Hydraulic shock absorber seat ♦ Fixed passenger seat ♦ Four-point air suspension ♦ Seat sleeping bed ♦ Manual flip |
|
Optional | ♦ Chinese-made clutch ♦ Central locking |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
