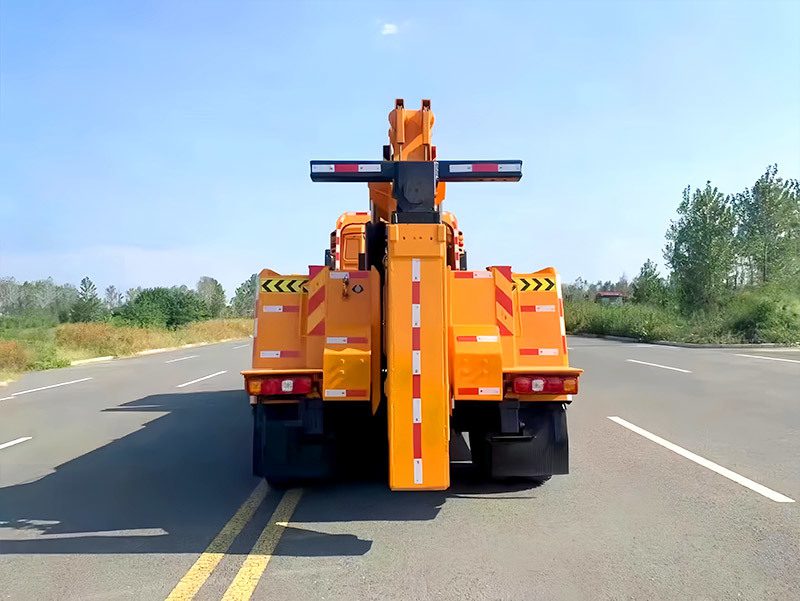

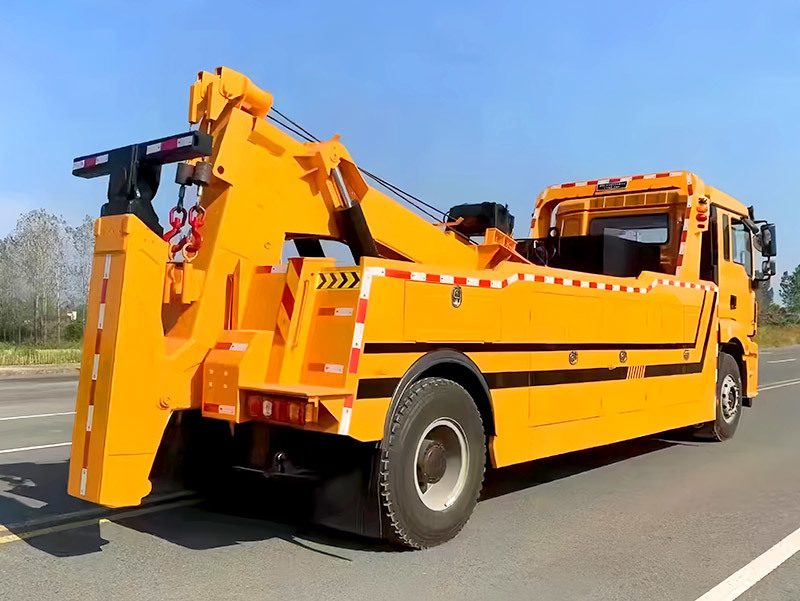

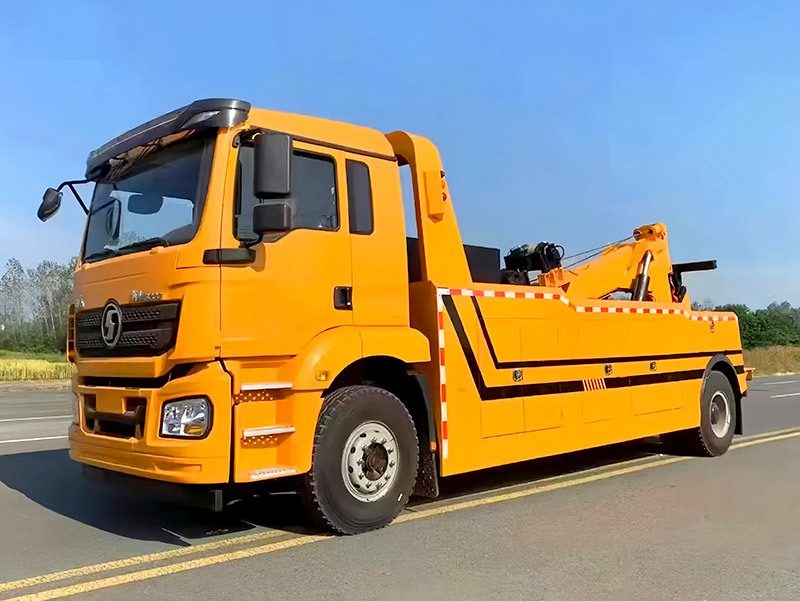

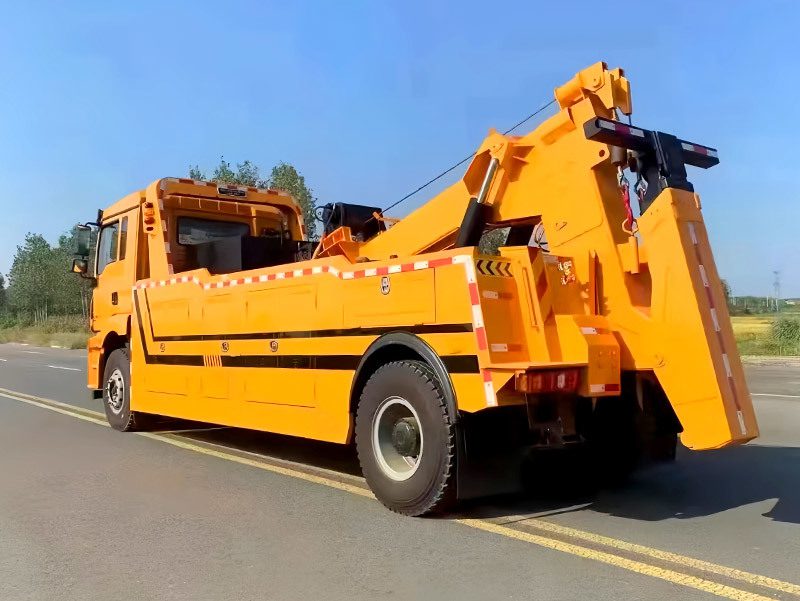

Shacman H3000 tow truck is an efficient, reliable and safe special vehicle specially used to clear vehicles involved in traffic accidents on the road and ensure the smooth flow of roads and traffic safety.
Shacman H3000 tow truck adopts high-quality body materials and advanced manufacturing technology, and has the advantages of high strength, good stability, wear resistance, and corrosion resistance. It also adopts an advanced electronic control system, a hydraulic system, and a mechanical system to assist in the handling of road traffic accidents efficiently and automatically, improve the efficiency of accident handling, and reduce the impact on road traffic.
Model | Shacman H3000 Rescue truck | |
Drive type | 4×2 | |
Engine | Brand | WEICHAI |
Model | WP10.270E32 | |
Power/(kw/HP) | 176Kw/240Hp | |
Maximum torque / (N.M)/rpm | 1500 N·M | |
Displacement/(L) | 9.726 L | |
Emission standard | Euro 3 | |
Gear box | Brand | FAST |
Model | 8JS105A+QD40J | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 870×270(7+4) | |
Suspension | Front | Front /rear Multi-layer plate spring |
Rear | Front /rear Multi-layer plate spring | |
Axles | Brand | HANDE |
Front axle | 4.8T front axle MAN technology | |
Rear axle | 11.5T MAN Single Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.286 | |
Tires | Type | 10.00R20 |
Fuel tank | Tank capacity/(L) | 200L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | Shacman H3000 Cab |
Equipment | Electric air conditioning, electric shaking window machine, LED daytime running lights, central control lock (double remote control), front fixed hydraulic suspension, ordinary air filter, 135Ah maintenance-free battery, flexible shaft control, aluminum alloy air storage cylinder, hydraulic main seat, with a third seat, manual flip, water tank protection grid, all English signs | |
Crane information | 16 ton reinforced top, two six-sided boom, three retractable rear boom, split trunk, Italian Hyde valve, Double-side linkage operation device, 2 rear working lights, two 8-ton hydraulic winch, double-side operation toolbox, 4 pairs of towing fork, 1 pair of fork pedestal, 1 pair of steel plate lug towing fork, auxiliary brake pipe assembly |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
