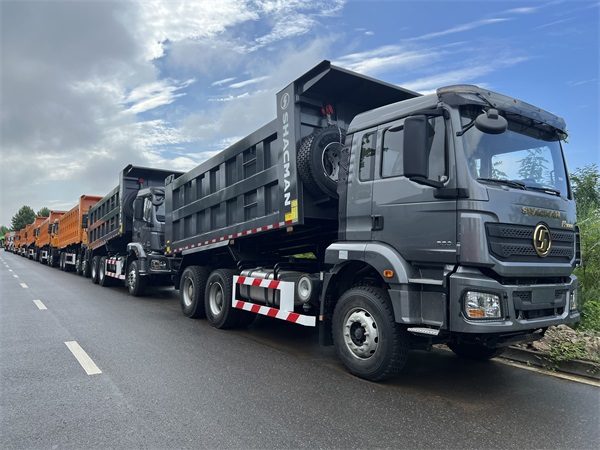

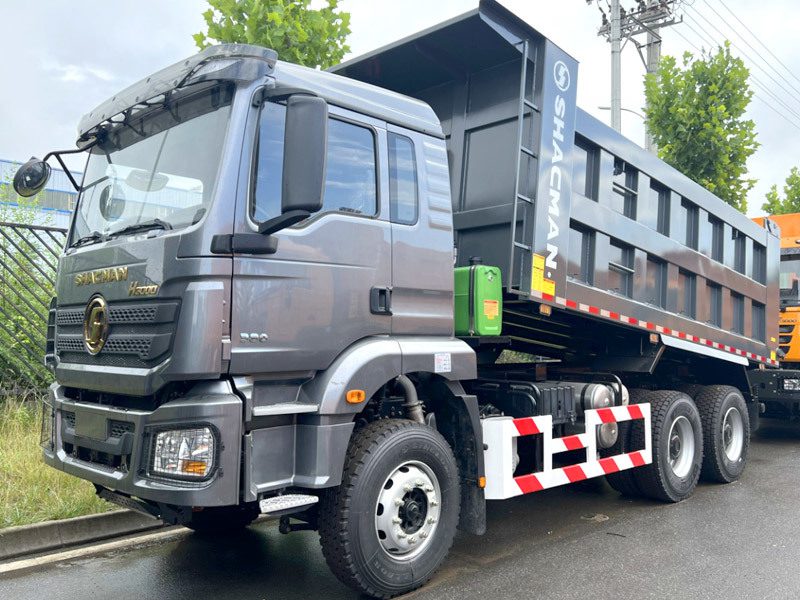

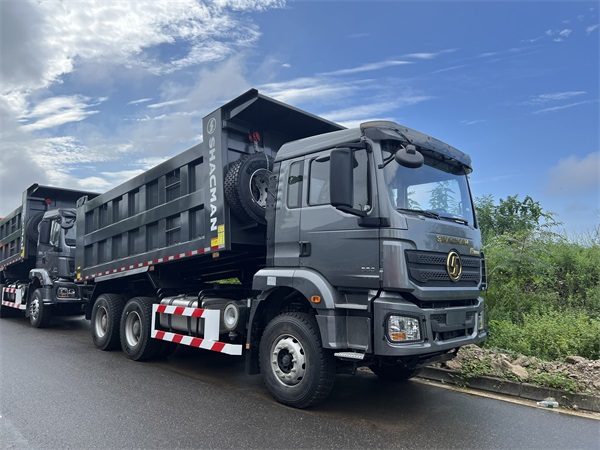

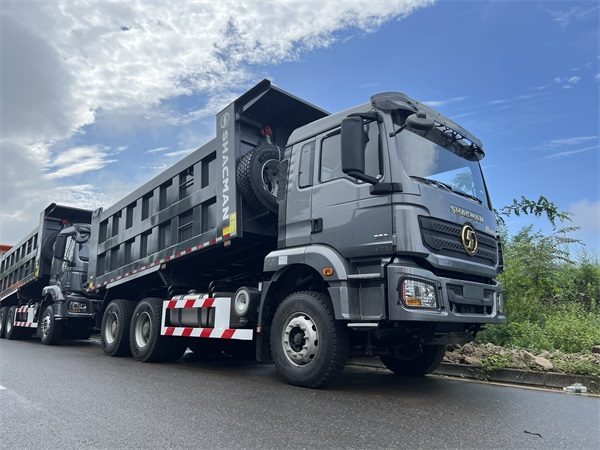

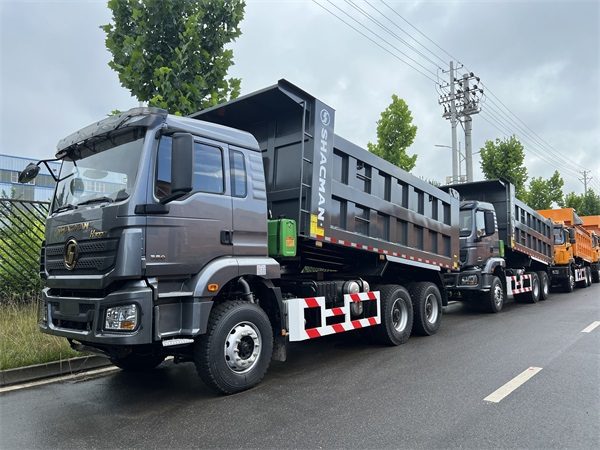

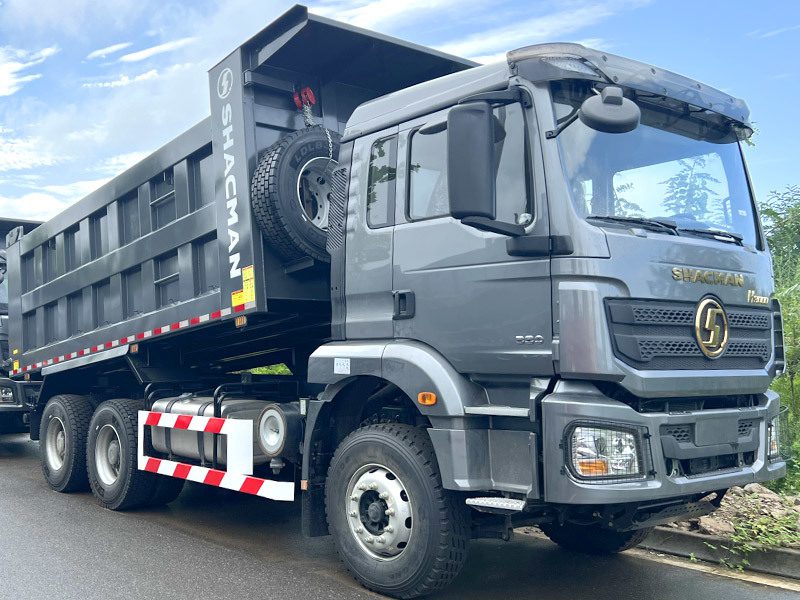

Shacman H3000 6×4 Heavy Duty Dump Truck is one of the popular models we sell. It has a large user group with high performance, high comfort and high efficiency. Our product will increase the distance from the ground to ensure their high passability in complex road conditions. It uses a high-strength frame with a stable overall structure and good bending and torsion resistance.
Transport type | Mining engineering |
Truck Model | Ore/sand/gravel/coal |
Distance(km) | ≤200 |
Road type | Offroad |
Drive | 6×4 |
Max weight(t) | ≤50 |
Max speed | 75 |
Loaded speed(km) | 40~60 |
Vehicle model | SX3255MN324 |

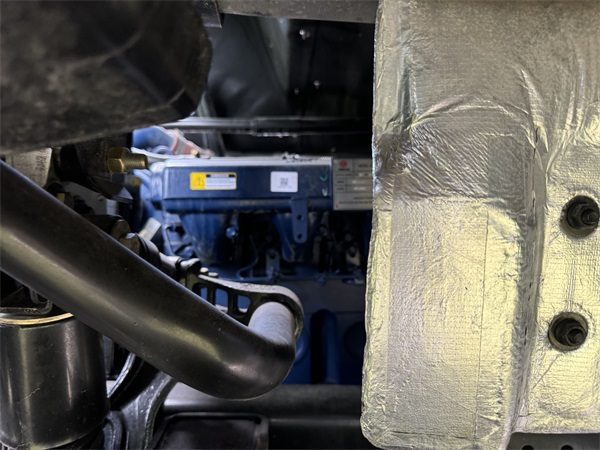

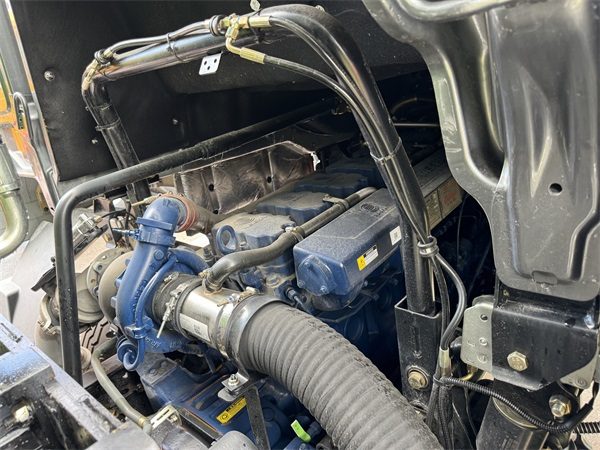

Engine | WP10.380E22 |
Emission standard | Euro Ⅱ |
Displacement | 9.726L |
Rated output | 220kw |
Max. torque | 1390N•m |
Transmission | 10JSD180+QH50 |
Clutch | 430 |

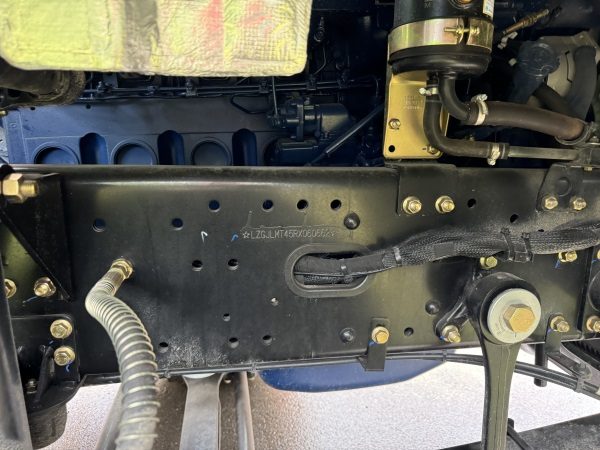

Frame | 850×300(8+7) |
Front axle | MAN 9.5T |
Rear axle | 16T MAN double reduction 5.92 |
Tire | 12.00R20 |
Front Suspension | Multi-leaf springs |
Rear Suspension | Multi-leaf springs |
Fuel | Diesel |
Capacity of the fuel tank | 400L ( Aluminum shell ) |
Battery | 165Ah |
Dimensions(L×W×H) | 7950x2490x3270 |
Wheelbase | 3175+1400 |
Truck(L×W×H) | 5600x2300x1300 |

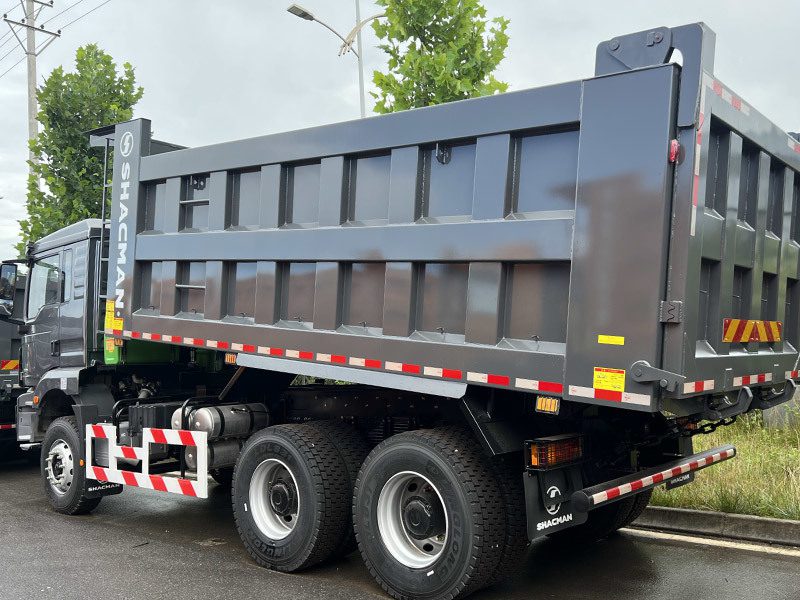

Cargo box thickness (mm) | Bottom 8, side 6 |

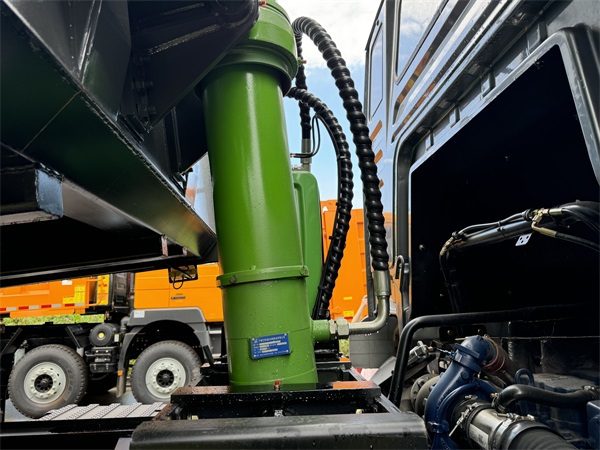

Hydraulic lifting system | middle lifting or front lifting HYVA |
Type | SHACMAN H3000, mid-lengthened flat roof | |||||
Equipments | ◆Rear window ◆Automated air conditioning ◆Hydraulic suspension of the cab ◆Hydraulic driver seat with seatbelts ◆One sleeping bed ◆Hydraulic reversal ◆Radio with MP3 player |
|||||
Optional | ●Full vehicle WABCO valve |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
