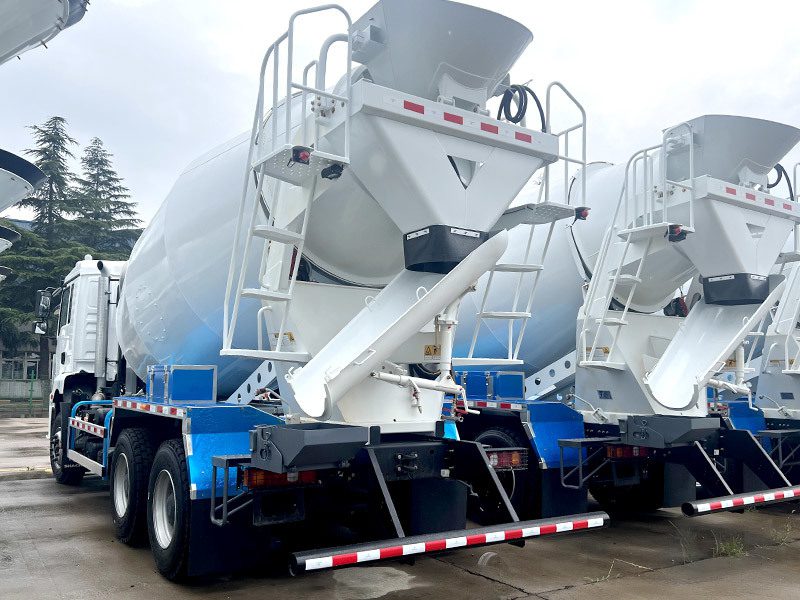

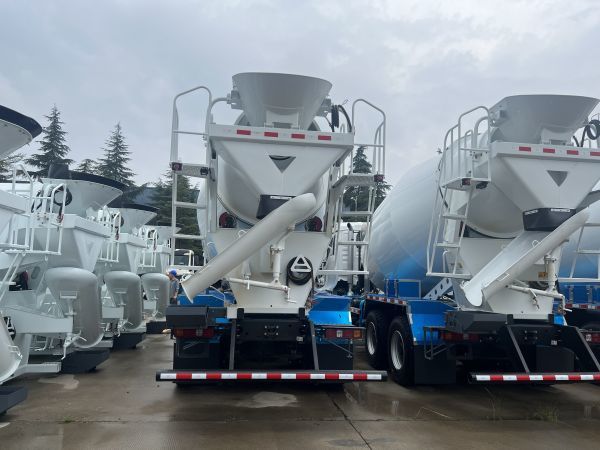

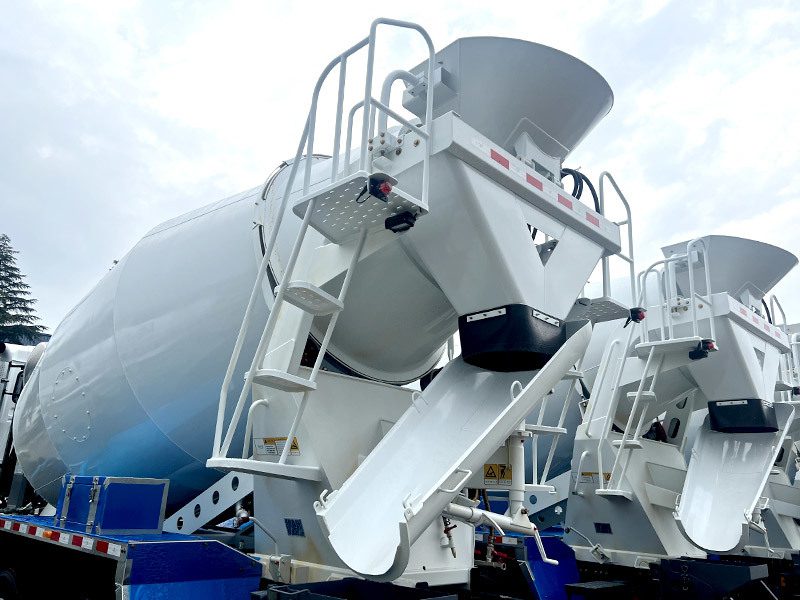

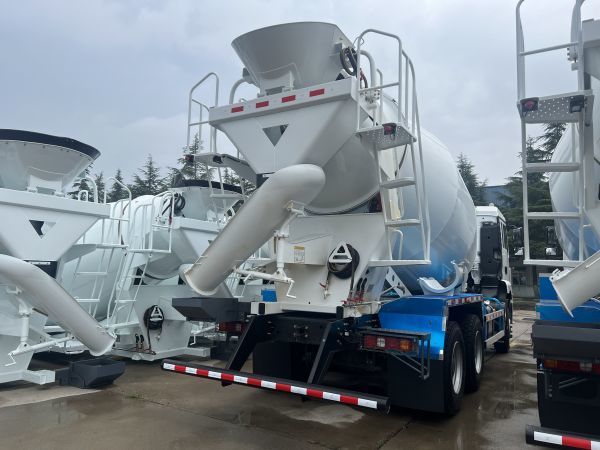

Adopting the narrow body cab of the German MAN TGS model, it has Europe’s leading design and manufacturing technology, with better lateral adaptability and traffic ability.
Shacman H3000 series is great for medium to long-distance transportation in and around an urban environment.
Platform | Shacman H3000 | |
Drive type | 6×4 | |
Vehicle model | SX5255GJBHR384 | |
Vehicle Weight | GVW:15 tons | |
GCW:35 tons | ||
Frame | 850×300(8+7) | |

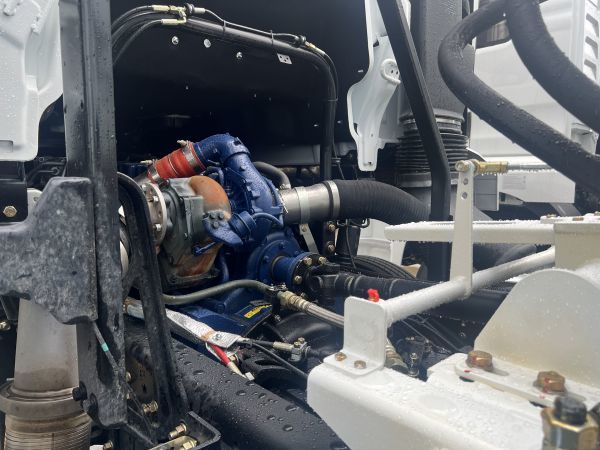

Engine | Weichai | Emissions: Euro II to Euro V |
Displacement: 10L – 12L | ||
Power: 300 PS – 420 PS | ||
Torque: 1200 Nm – 2100 Nm | ||
Cummins | Emissions: Euro II to Euro V | |
Displacement: 10L – 12L | ||
Power: 340 PS – 420 PS | ||
Torque: 1200 Nm – 2100 Nm | ||
Transmission | RTD11509C | |
Clutch | φ430 | |
Steering gear | ZF8098 | |
Axle | Front axle: MAN 9.5 ton | |
Rear axle: MAN 16-ton single or double reduction | ||
Gear ratio: 4.769 – 5.92 | ||

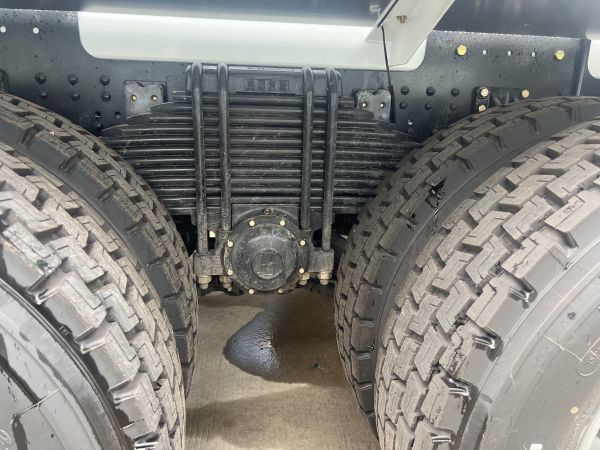

Suspension | Multi-leaf spring front and rear setup | |
Tires | 315 / 80R22.5 | |
12R22.5 | ||
12.00R20 | ||
Fuel tank | 400 – 700 liter aluminum or steel tank | |
Dimensions(LxWxH) | 8575x2495x3774 | |
Volume(m³) | 9 | |
Wheelbase | 3775+1400 | |
Approach/Departure angle(°) | 20/18 | |
Max.gradeability(%) | 34 | |

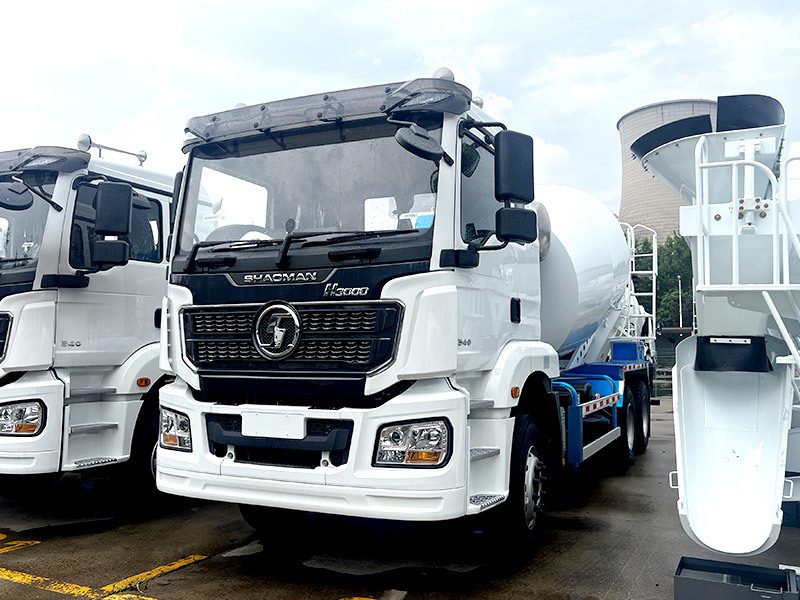

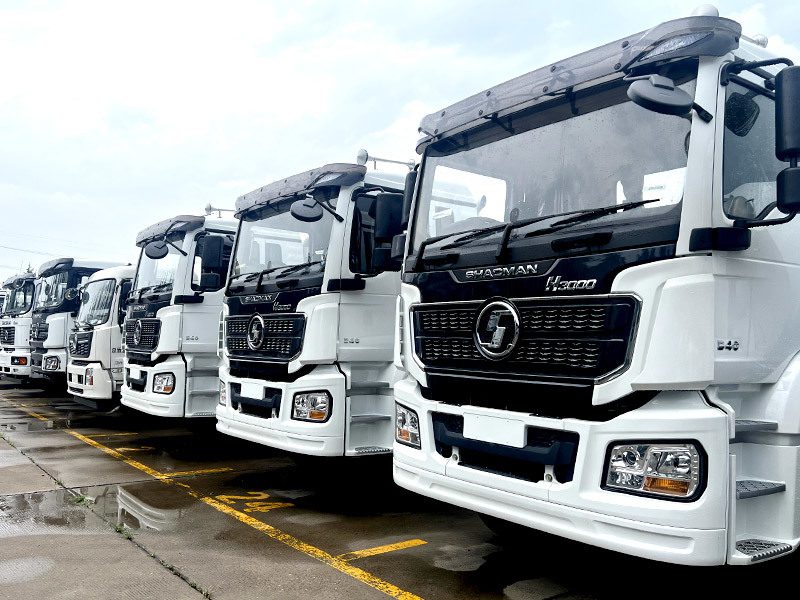

Cab | Type | Shacman H3000, lengthened flat roof |
Equipments | ◆Rear window ◆Manual sunroof ◆Hydraulic driver seat with seatbelts ◆Hydraulic suspension of the cab ◆Automated air conditioning ◆Electric window ◆Radio with MP3 piayer |
|
Optional | ● Air-cushioned driver’s seat ●Full vehicle WABCO valve ●Central locking |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
