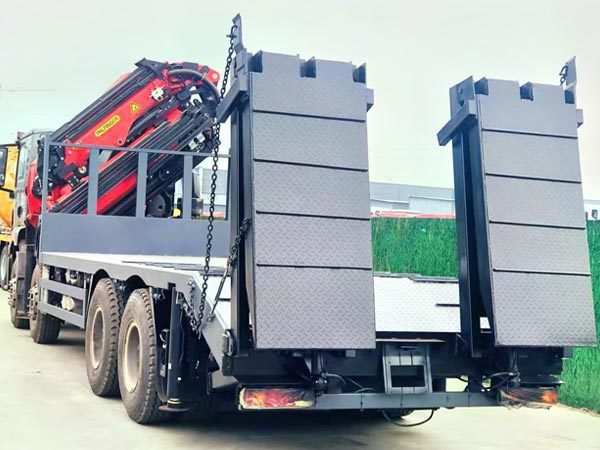

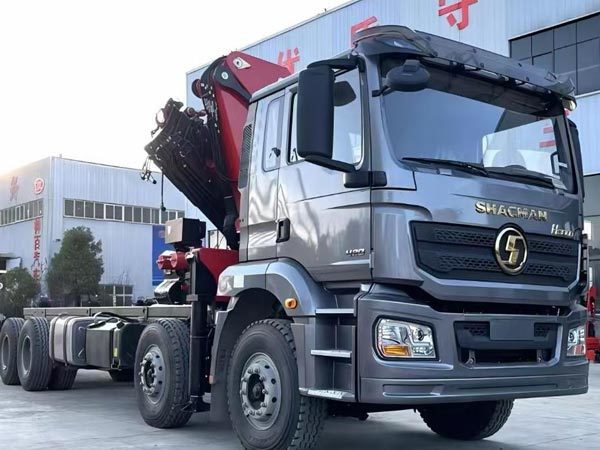

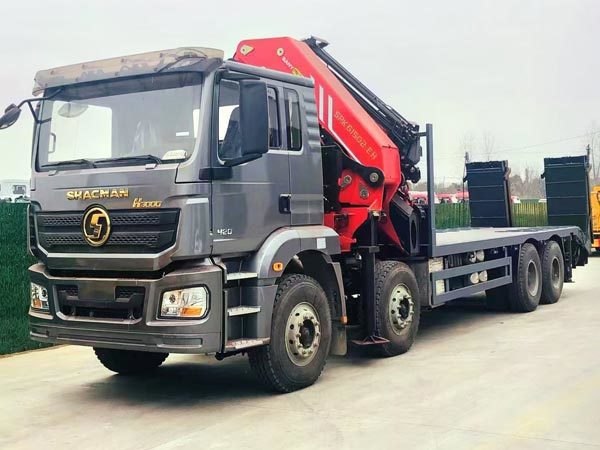

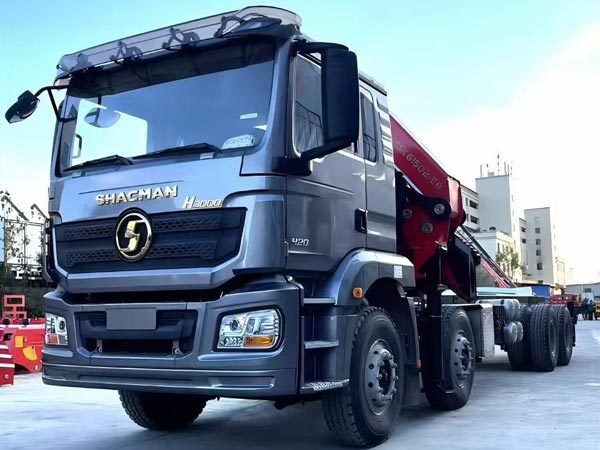

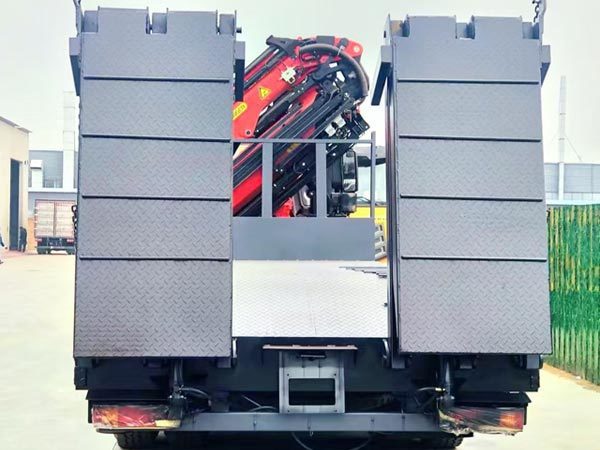

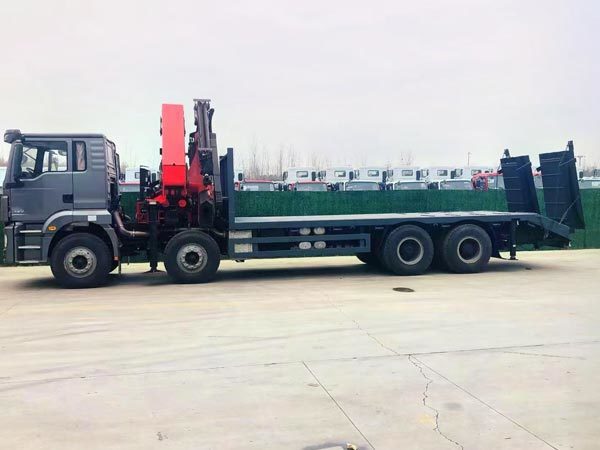

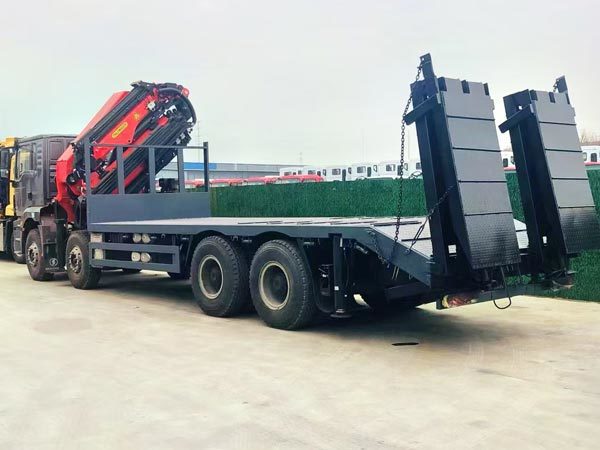

Shacman H3000 folding arm Crane is a multi-functional vehicle, with a lifting capacity of 30 tons, adopts a folding arm design, with a flying arm and climbing function, suitable for four or eight configurations. This crane is designed to provide the convenience of a multi-purpose vehicle to meet the needs of a variety of work scenarios.
Cargo Crane Truck Parameters | ||
Model | SX5315JSQMT456 | |
Drive type | 8×4 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 2100+4575+1400 |
Performance | Maximum speed/(km/h) | 60~75/115 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP12.430E22 | |
Power/(kw/HP) | 3160w / 430Hp | |
Maximum torque / (N.M)/rpm | 1900 N·M | |
Displacement/(L) | 11.596 L | |
Emission standard | Euro/ II | |
Gear box | Brand | FAST |
Model | 10JSD180+QH50 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+5+8) | |
Suspension | Front | Front /rear multi-layer plate spring, 4 main plates + 4 U-shaped bolts |
Rear | Front /rear multi-layer plate spring, 4 main plates + 4 U-shaped bolts | |
Axles | Brand | HANDE |
Front axle | MAN 9.5T | |
Rear axle | 2*16 T Double-stage, speed ratio-5.262 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 300L |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |

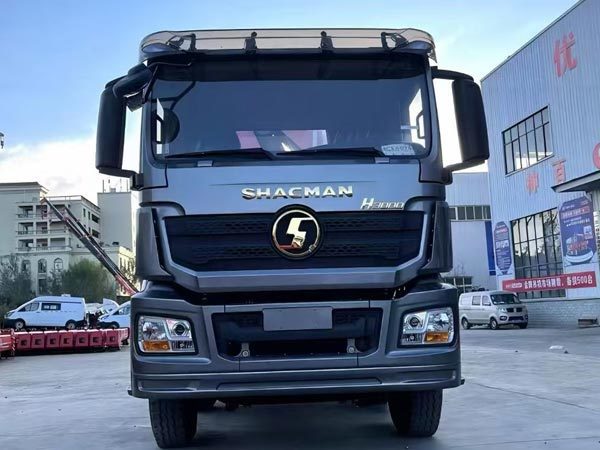

Cab | Type | SHACMAN H3000 medium-length flat roof |
Equipment | Hydraulic main seat, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free battery, SHACMAN Logo, full English logo. | |
Superstructure parameters | ||
Crane lifting type | Hydraulic | |
Crane capacity | 5-16ton | |
container size | 6800*2350*600mm(customized ) | |
container material | High-strength carbon steel | |
Container thickness | 6mm Side,8mm bottom |
