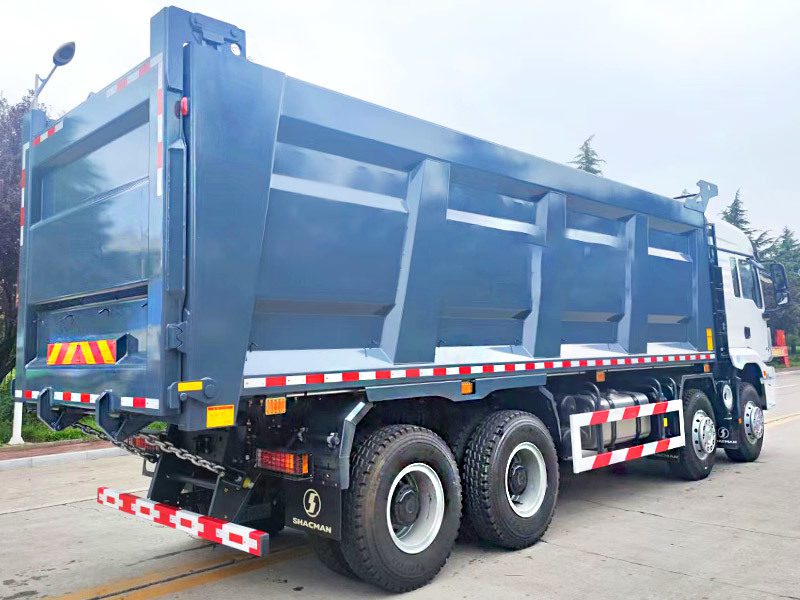

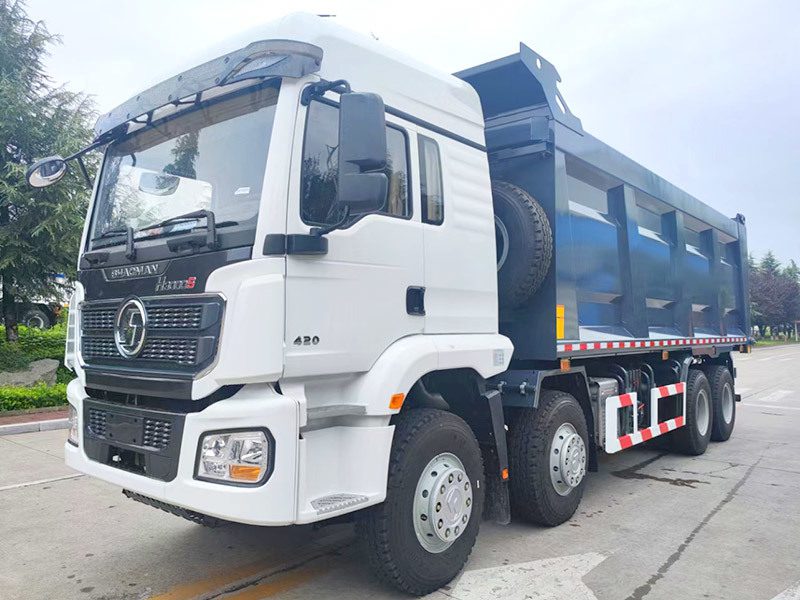

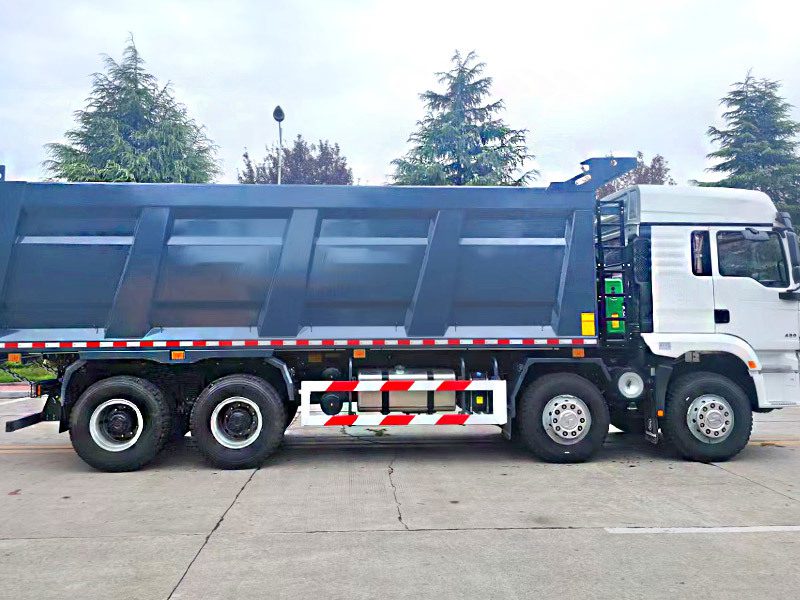

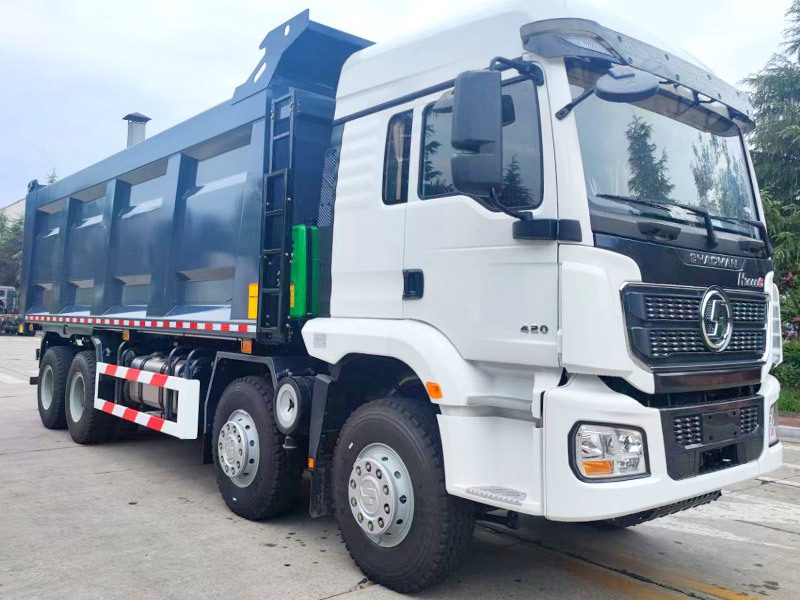

Shacman H3000S 8×4 Highway Dump Truck uses a high-quality engine with good power, high economy, and cost savings compared to similar products. Our product adopts noise reduction technology, which has good sealing performance and comfortable driving. It can travel for a long distance, can well meet the transportation needs, and is one of the best choices for the transportation industry.
Transport type | Highway transport |
Logistics type | Ore/sand/gravel/coal |
Distance(km) | ≤200 |
Road type | Off-road/Paved roads |
Drive | 8×4 |
Max weight(t) | ≤90 |
Max speed(km/h) | 80 |
Loaded speed(km) | 45~60 |
Vehicle model | SX3315DV366C |
Engine | ISME420 30 |
Emission standard | Euro Ⅲ |
Displacement | 10.8L |
Rated output | 306kw |
Max. torque | 2010N·m |
Transmission | 12JSD200T-B+QH50 |
Clutch | 430 |
Frame | 850×320(8+7+8) |
Front axle | MAN 9.5T |
Rear axle | 16T MAN double reduction 4.769 |
Tire | 12.00R20 |
Front Suspension | Multi-leaf springs |
Rear Suspension | Multi-leaf springs |
Fuel | Diesel |
Capacity of the fuel tank | 400L |
Battery | 180Ah |
Dimensions(L×W×H) | 9300×2490×3250 |
Trunk(LxWxH) | 7400×2300×1500 |
Wheelbase | 1800+3575+1400 |
Approach/Departure angle(°) | 23/44 |
Max.gradeability(%) | 40 |
Cab | Type | SHACMAN H3000S, mid-lengthened flat roof | ||
Equipments | ◆Rear window ◆Mechanical clerestory ◆Hydraulic suspension of the cab ◆Hydraulic driver seat with seatbelts ◆One sleeping bed ◆Hydraulic reversal ◆Radio with MP3 player |
|||
Optional | ● Air-cushioned driver’s seat ●Front lamp protection grid ●Oil bath air filter |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
