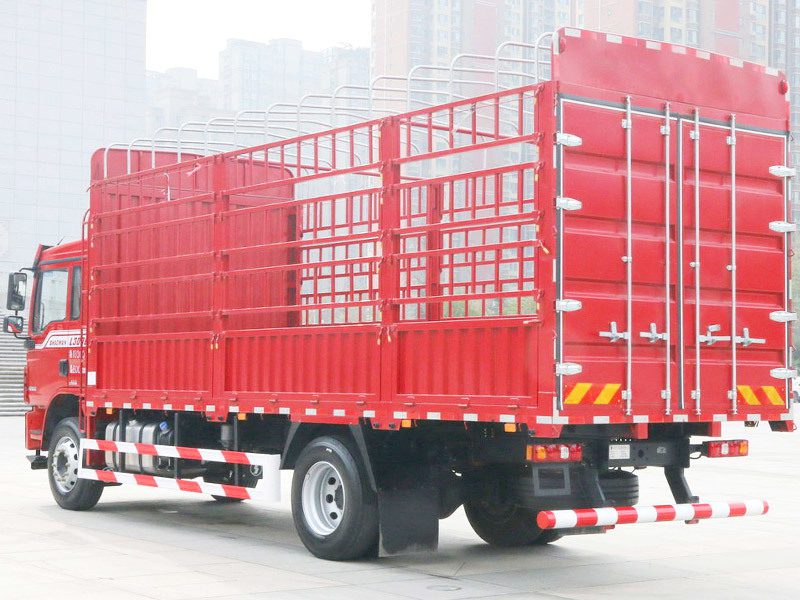

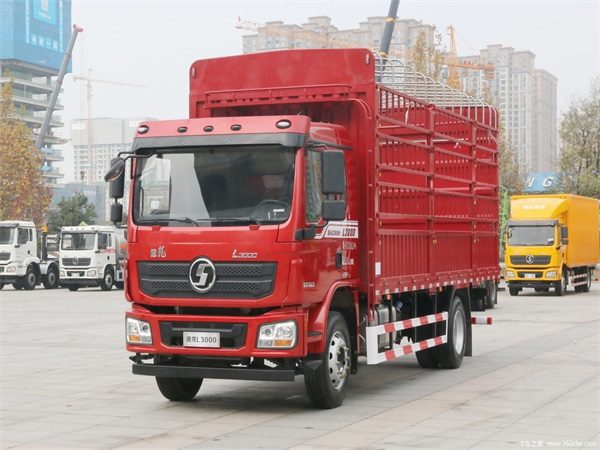

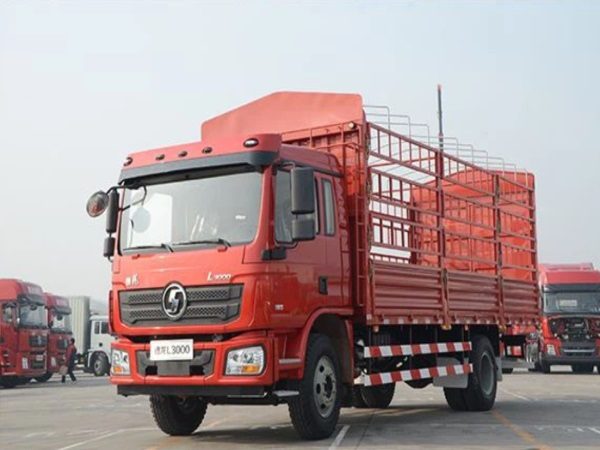

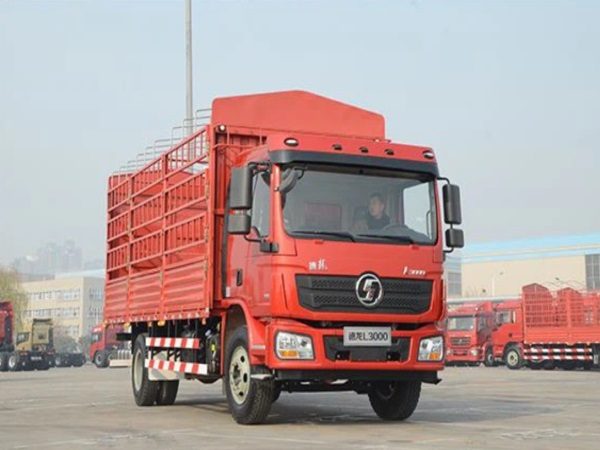

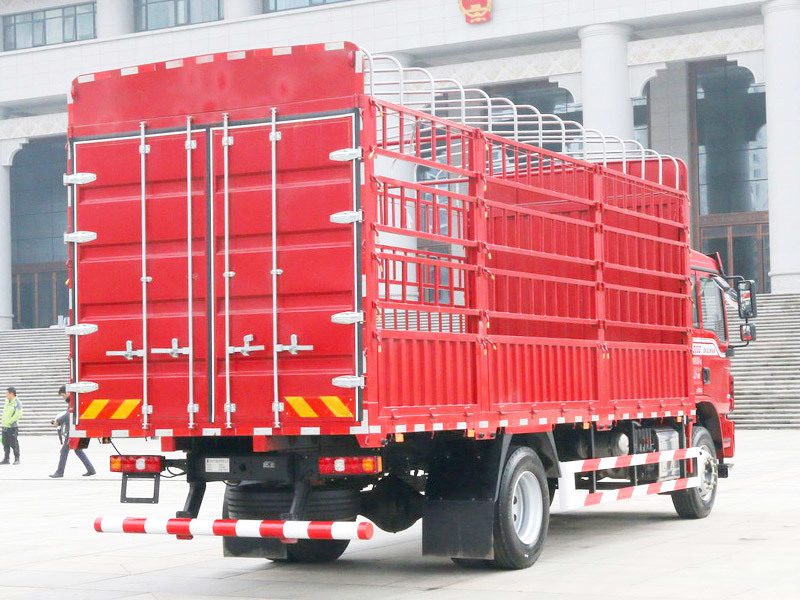

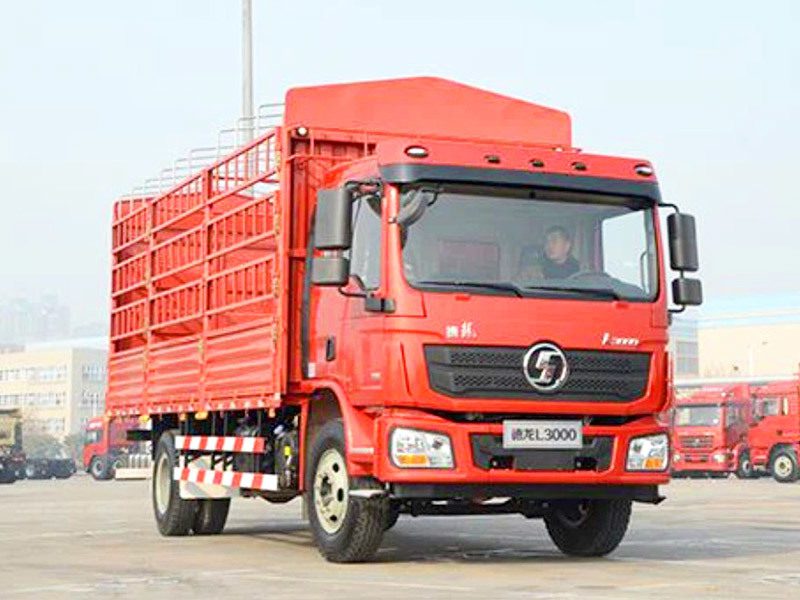

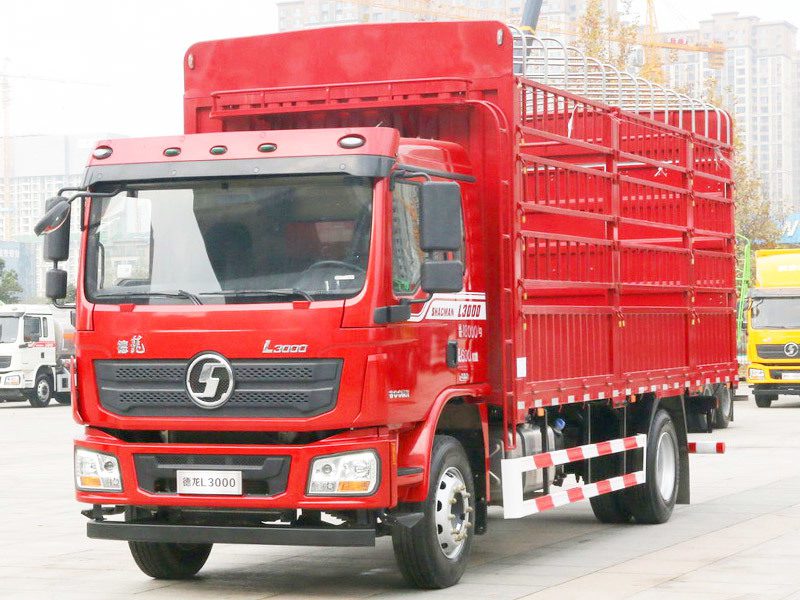

Shacman L3000 4×2 Light Cargo Truck has strong mobility and flexibility. The gearbox has an aluminum shell to reduce the vehicle’s dead weight. The vehicle also has front, three-rear, multi-leaf spring suspension, reducing the vehicle’s dead weight and ensuring its bearing capacity. The braking mode is drum braking.
Type | Shacman L3000 | Shacman L3000 |
Vehicle model | SX11858J501 | SX11858J501C |
Drive | 4×2 | 4×2 |
Wheelbase (mm) | 5000 | 5000 |
Suspension | Multi leaf springs | Multi leaf springs |
Engine | WP6.210E32 | ISDe210 30 |
Horsepower | 210HP | 210HP |
Emission standard | Euro Ⅲ | Euro Ⅲ |
Displacement | 6.23L | 6.7L |
Rated output | 155kW | 155kW |
Max. torque | 750N.m | 800N.m |
Transmission | 8JS85TM | 8JS85TM |
Clutch | 430 | 430 |
Frame | 870×250(7+4) | 870×250(7+4) |
Front axle | 4.8T | 4.8T |
Rear axle | MAN 10T single reduction 4.625 | MAN 10T single reduction 4.625 |
Tire | 10R22.5 | 10R22.5 |
Fuel | Diesel | Diesel |
Fuel tank | 300L (Aluminum shell) | 300L (Aluminum shell) |
Battery | 135Ah | 135Ah |
Trunk(LxWxH) | 6300x2326x580 | 6300x2326x580 |
Cab | ◆The L3000 cab without a shroud ◆Water tank protection grid ◆Front fixed rear hydraulic mount ◆Hydraulic main seat ◆Electric window ◆Tail light protection grille |
◆The L3000 cab without a shroud ◆Water tank protection grid ◆Front fixed rear hydraulic mount ◆Hydraulic main seat ◆Electric window ◆Tail light protection grille |
Optional | ●QD40J power take-off | ●QD40J power take-off |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
