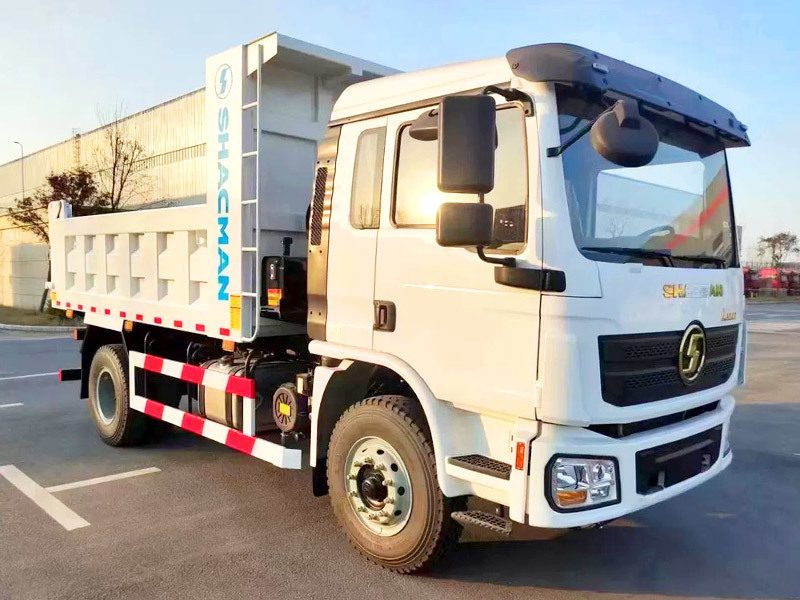

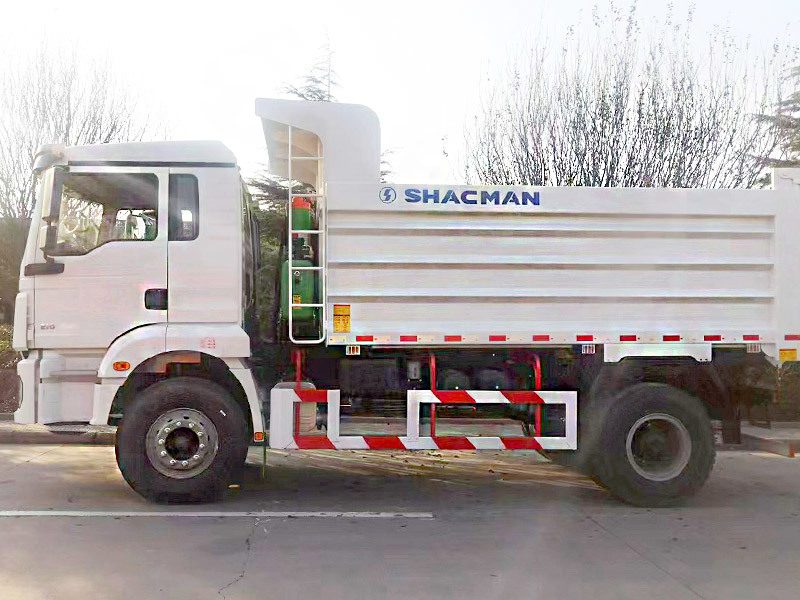

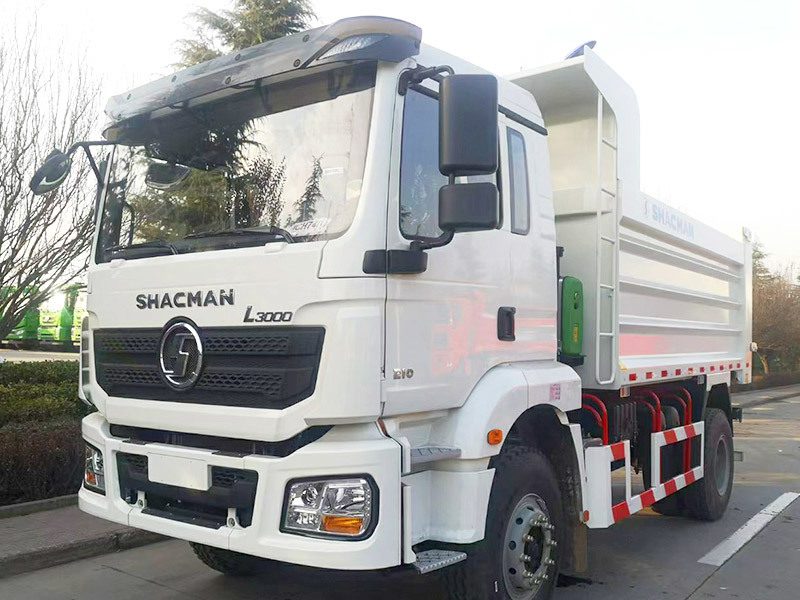

Shacman L3000 4×2 Light Dump Truck is suitable for landscaping, sanitation, municipal, engineering, highway, etc. A motor vehicle equipped with a hydraulic system, a box body arranged on the vehicle chassis, and a tipping mechanism for rotating the box body around the rear hinge point. A feed port equipped with a cover plate is arranged above the front side of the box body, and a barrel tipping mechanism is arranged below it.
Transport type | Complex transport |
Logistics type | Daily industrial products and food |
Distance(km) | ≤300Km |
Road type | Paved roads |
Drive | 4×2 |
Max weight(t) | ≤20 |
Max speed | 90 |
Loaded speed(km) | 60~70 |
Vehicle model | SX1165MF461 |
Engine | WP6.210E32 |
Emission standard | Euroǁ |
Displacement | 6.75L |
Rated output | 132Kw |
Max. torque | 680N•m |
Transmission | 8JS85E |
Clutch | 430 |
Frame | 850×270(8+4) |
Front axle | MAN 5.5T |
Rear axle | 13T MAN double reduction 4.7691 |
Tire | 11.00R20 |
Front Suspension | Multi-leaf springs |
Rear Suspension | Multi-leaf springs |
Fuel | Diesel |
Capacity of the fuel tank | 400L ( Aluminum shell ) |
Battery | 165Ah |
Truck(L×W×H) | 4200x2326x580 |
Container thickness | 6mm Side,8mm bottom |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
