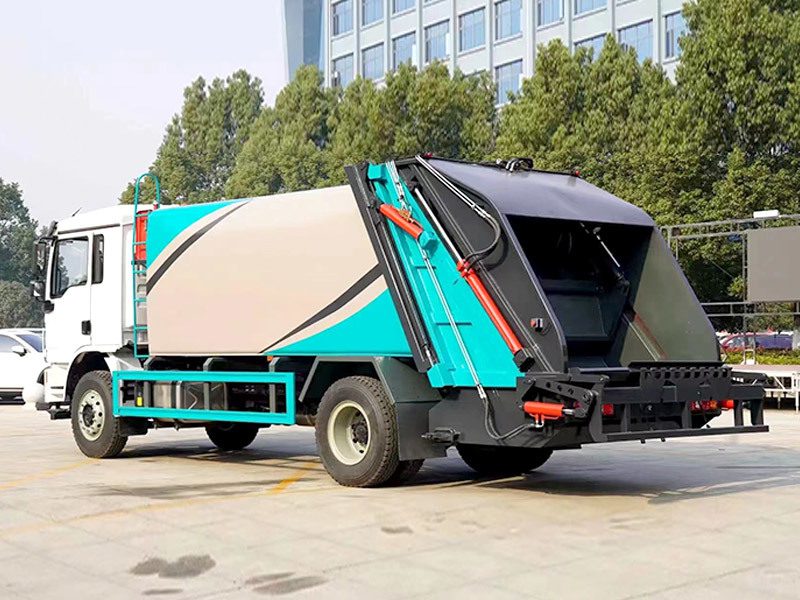

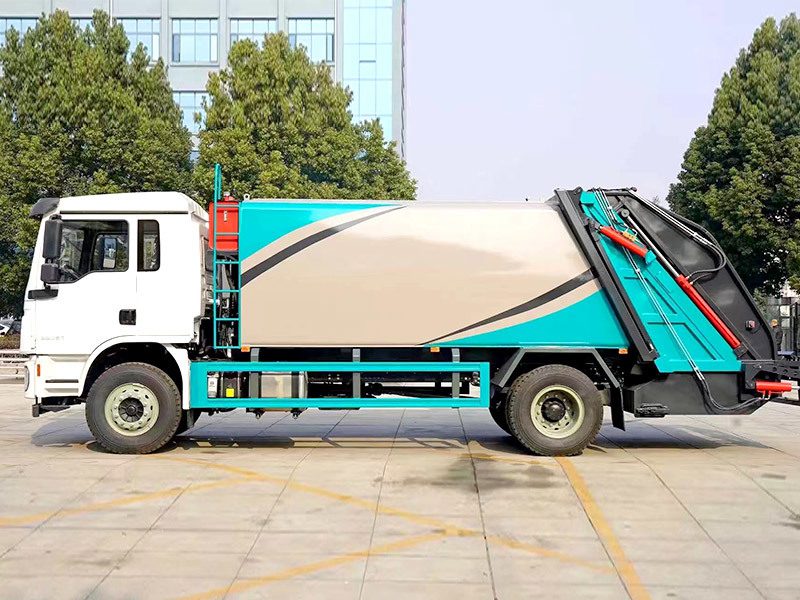

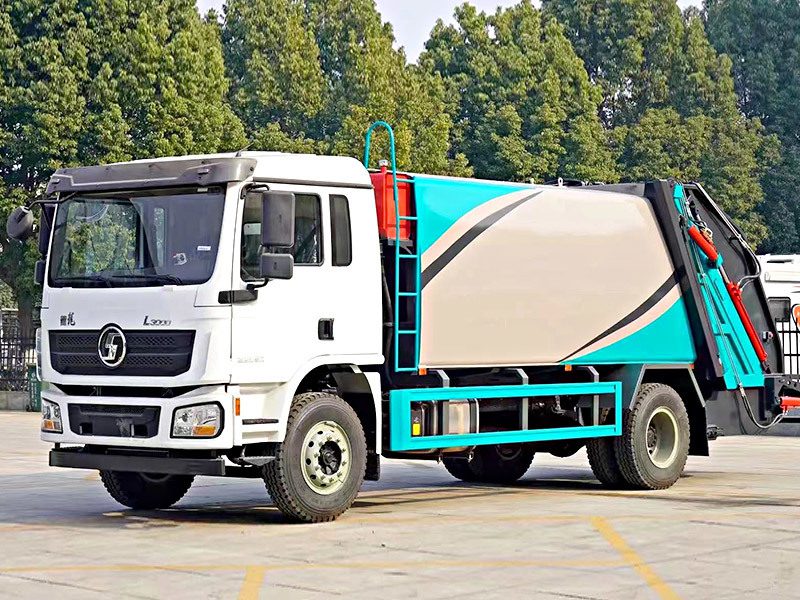

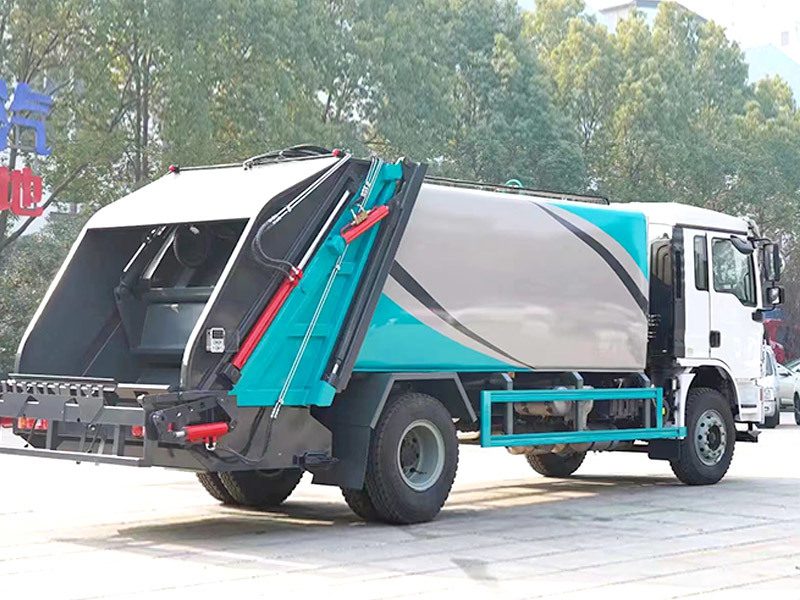

Shacman L3000 garbage compressor kind of vehicle specially used for garbage compression and transportation, which consists of a sealed garbage compartment, a hydraulic system, and an operating system. The design of this vehicle is mainly to solve the problem of secondary pollution in the process of garbage transportation, through the fully sealed design, the garbage compressor can compress and dump the garbage by itself, while ensuring that the sewage generated during the compression process all enters the sewage compartment, thus effectively reducing the pollution in the garbage transportation process and avoiding the inconvenience to people. The key parts of the garbage compressor are imported parts, which have the advantages of high pressure, good sealing, easy operation, and safety. In addition, the garbage compressor can also be selected with a rear-hanging bucket flipping mechanism or a garbage bucket flipping mechanism to adapt to different use scenarios.
SHACMAN L3000 compression garbage truck | |
Chassis configuration | L3000 one-row and a half cab, front fixed, rear hydraulic suspension, electric air conditioner, electric window shaker |
Engine | WP4.6NQ220E61 (cylinder type + side intake) |
Gearbox | 8JS85E-C |
Front axle | 4.8T |
Rear axle | 10T |
Frame | 870×250 (7+4) |
Tire | 10.00R20 |
Box volume | 14m³, Curved box, 5mm |
Top configuration | floor with reinforced support, open easy-to-clean sewage tank, combined garbage bin with sealing slide plate, China Coal multi-way valve, Hefei Wanye gear oil pump (double oil pump), with photoelectric sensor, with compression push plate (bidirectional compression), full vehicle HI-PRESSURE hydraulic cylinder, compaction valve, with hanging barrel flip feeding, pneumatic sealing cover, installed PLC one-button control system, LED lighting installed in the filler. |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
