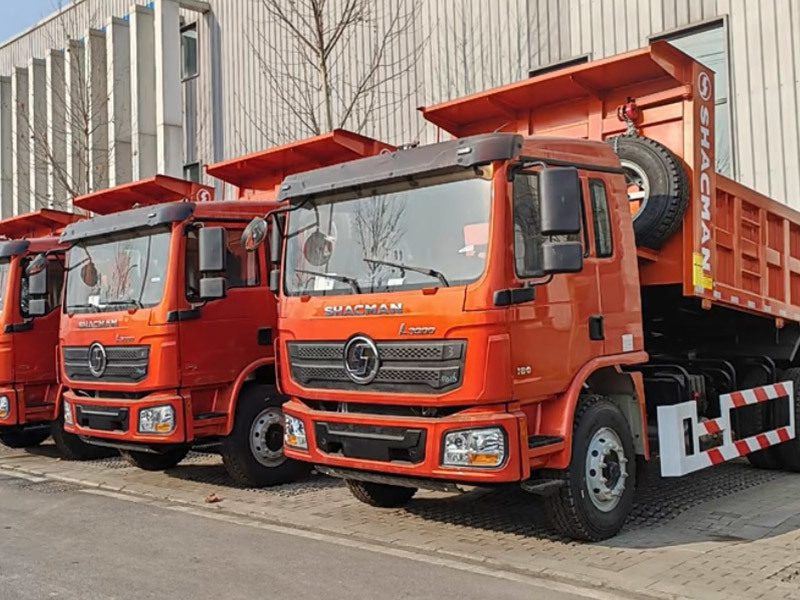

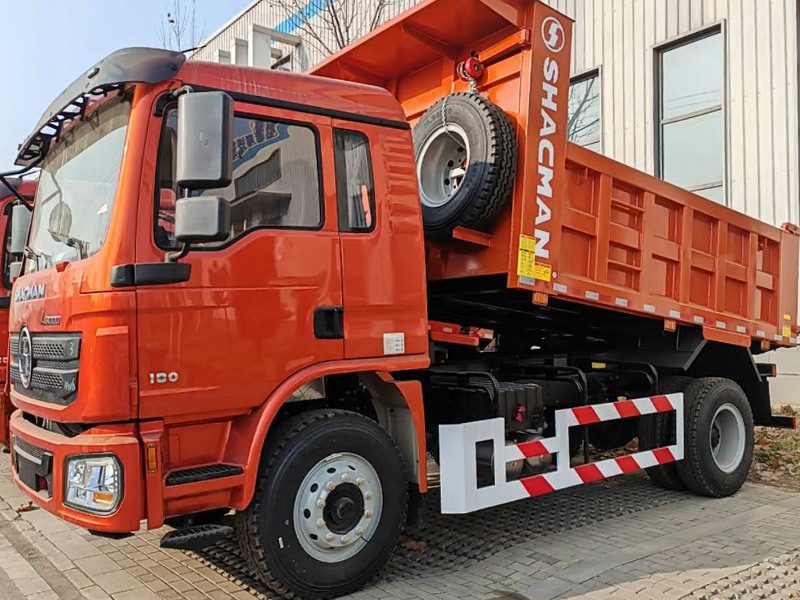

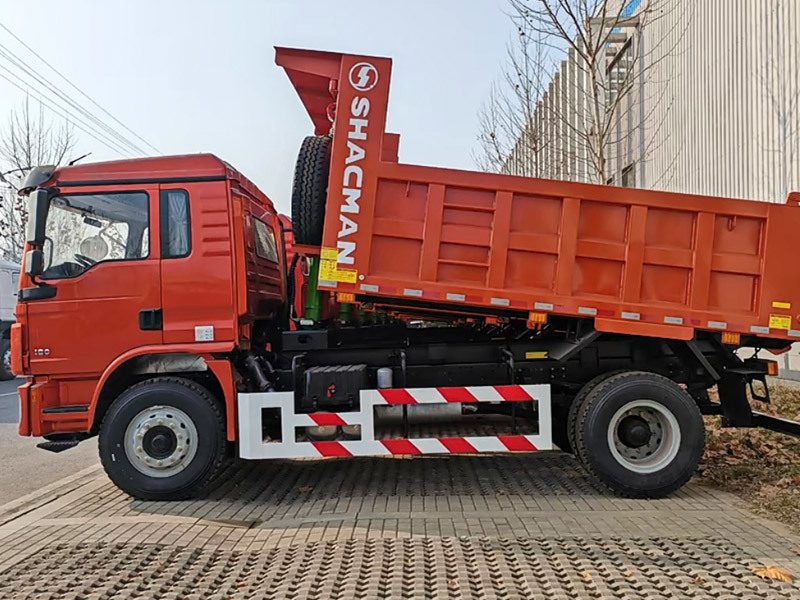

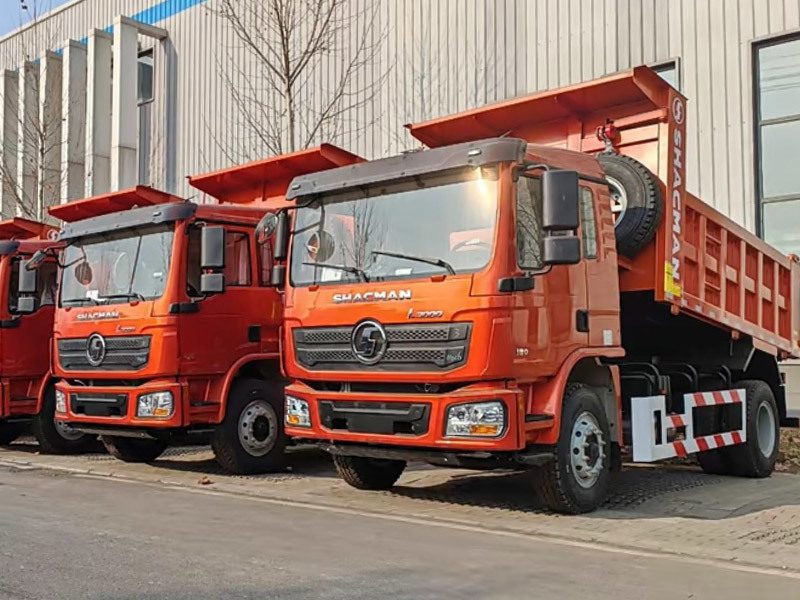

Shacman L3000 Tipper Truck adopts China’s current higher dump truck technology. During the research and development period, a large number of leading technologies are used, and the international top research and development teams, such as German MAN and American Cummins, are used to achieve high reliability and reduce failure rate.
Transport type | Shacman L3000 Dump Truck | ||
Logistics type | Dump Truck | Tipper Truck | |
Distance(km) | ≤50 | ≤300 | |
Road type | Paved roads | ||
Drive | 4×2 | ||
Max weight(t) | ≤50 | ≤70 | |
Load/Volume | ≤9-10 | ≤25 | |
Max speed(km/h) | 40~55/80 | 40~55/80 | |
Loaded speed(km/h) | 30~65 | 30~65 | |
Vehicle model | SX5185ZYS8M501C | SX5185ZYS8M501 | |
Engine | ISDE 245 30 EURO III | WP10.290E32 | |
Emission standard | EURO III | EURO II | |
Displacement | 6.7L | 9.7L | |
Rated Output | 250kw | 213kw | |
Max. torque | 1350N.m | 1160N.m | |
Transmission | 9JS135 | 9JS119+QH50 | |
Clutch | 430 | ||
Frame | 850X300(8+7) | 850X300(8+5) | |
Front axle | MAN 7.5T | ||
Rear axle | 16T STR double reduction5.262 | ||
Tire | 12.00R20 | 12.00R20 | |
Front Suspension | Multi-leaf springs | Multi-leaf springs | |
Rear Suspension | Multi-leaf springs | Multi-leaf springs | |
Fuel | Diesel | ||
Capacity of the fuel tank | 380L | 400L | |
Cargo box | 4000*2300*800 | 3800*2300*600 | |
Approach/Departure angle( °) | 20/18 | 20/18 | |
Max.grade ability(%) | 34 | 27 | |
Cab | Type | ♦ Ring curtain ♦ Real window ♦ Manual sunroof ♦ Hydraulic shock absorber seat ♦ Fixed passenger seat ♦ Four-point air suspension ♦ Seat sleeping bed ♦ Manual flip |
|
Optional | ♦ Chinese-made clutch ♦ Central locking |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
