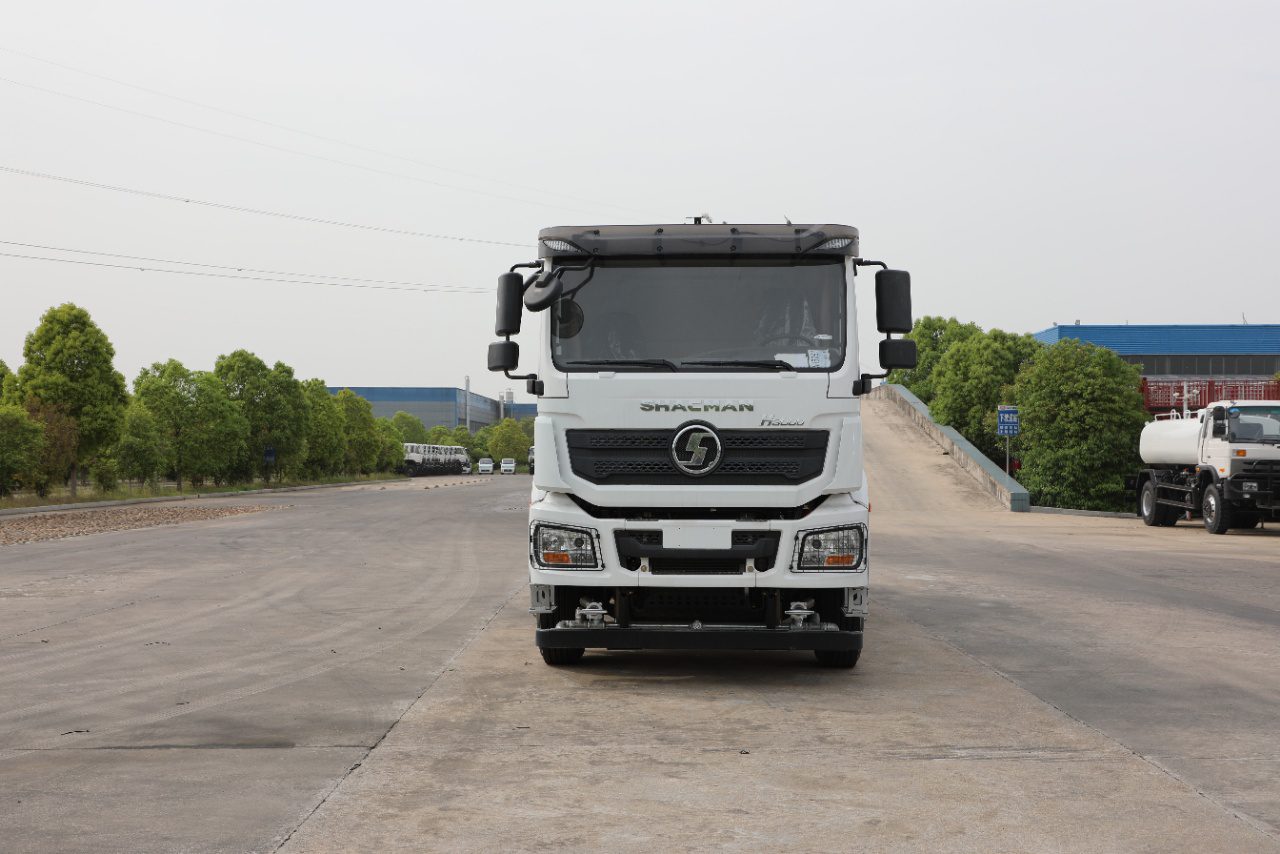

H3000S standard cab without deflector, air main seat, fixed passenger seat, ordinary rearview mirror, electronically controlled automatic climate control air conditioning, electric window shaker.
H3000S standard cab without deflector, air main seat, fixed passenger seat, ordinary rearview mirror, electronically controlled automatic climate control air conditioning, electric window shaker (Mabuqi motor), manual flip, road bumper, three-stage boarding pedal, multi-function steering wheel (with cruise control), ordinary air filter, ordinary exhaust, imported clutch, rear axle stabilizer bar, 180Ah maintenance-free battery, four-point air suspension, yellow profile light, cab flip Spanish logo, sun visor, SHACMAN logo, full English logo , aluminum alloy gas tank, special rear protection, reversing buzzer, 2kg fire extinguisher, telescopic shaft control, figure-eight tail beam and electrical road interface, LED daytime running lights, luxury version of the on-board toolbox.
|
Main specification
|
| Model |
SX5258GSSMR464C |
| Drive type |
6X4 |
| Wheelbases(mm) |
4575+1400 |
| Economic speed/Maximum speed (km/h) |
50～65/90 |
| GVW |
≤35T |
| Engine |
Brand |
CUMMINS |
| Model |
ISME345 30（JACOB） |
| Horsepower |
345HP |
| Emission standards |
Euro Ⅲ |
| Gear box |
Brand |
FAST |
| Model |
10JSD180T-QH50++FHB400 retarder |
| Chassis |
Dimensions(mm) |
850×270（8+4） |
| Suspension |
Front |
Front and rear multi-leaf springs (two main pieces and two horses) |
| Rear |
Front and rear multi-leaf springs (two main pieces and two horses) |
| Axles |
Brand |
HANDE |
| Front axle |
7.5T front axle HD technology |
| Rear axle |
2*13T HD technology with a differential lock between wheels |
| Speed ratio |
4.111 |
| Tires |
Type |
13R22.5 |
| Fuel tank |
Tank capacity(L) |

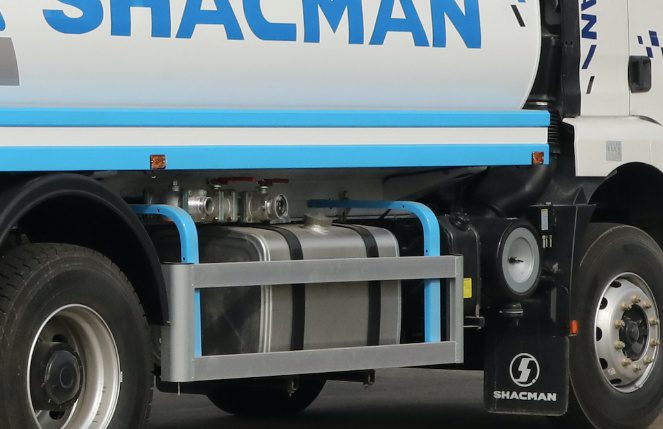

300L aluminum alloy fuel tank |
| Cab |
H3000S standard cab without deflector, air main seat, fixed passenger seat, ordinary rearview mirror, electronically controlled automatic climate control air conditioning, electric window shaker (Mabuqi motor), manual flip, road bumper, three-stage boarding pedal, multi-function steering wheel (with cruise control), ordinary air filter, ordinary exhaust, imported clutch, rear axle stabilizer bar, 180Ah maintenance-free battery, four-point air suspension, yellow profile light, cab flip Spanish logo, sun visor, SHACMAN logo, full English logo , aluminum alloy gas tank, special rear protection, reversing buzzer, 2kg fire extinguisher, telescopic shaft control, figure-eight tail beam and electrical road interface, LED daytime running lights, luxury version of the on-board toolbox. |
| Upload parameters |

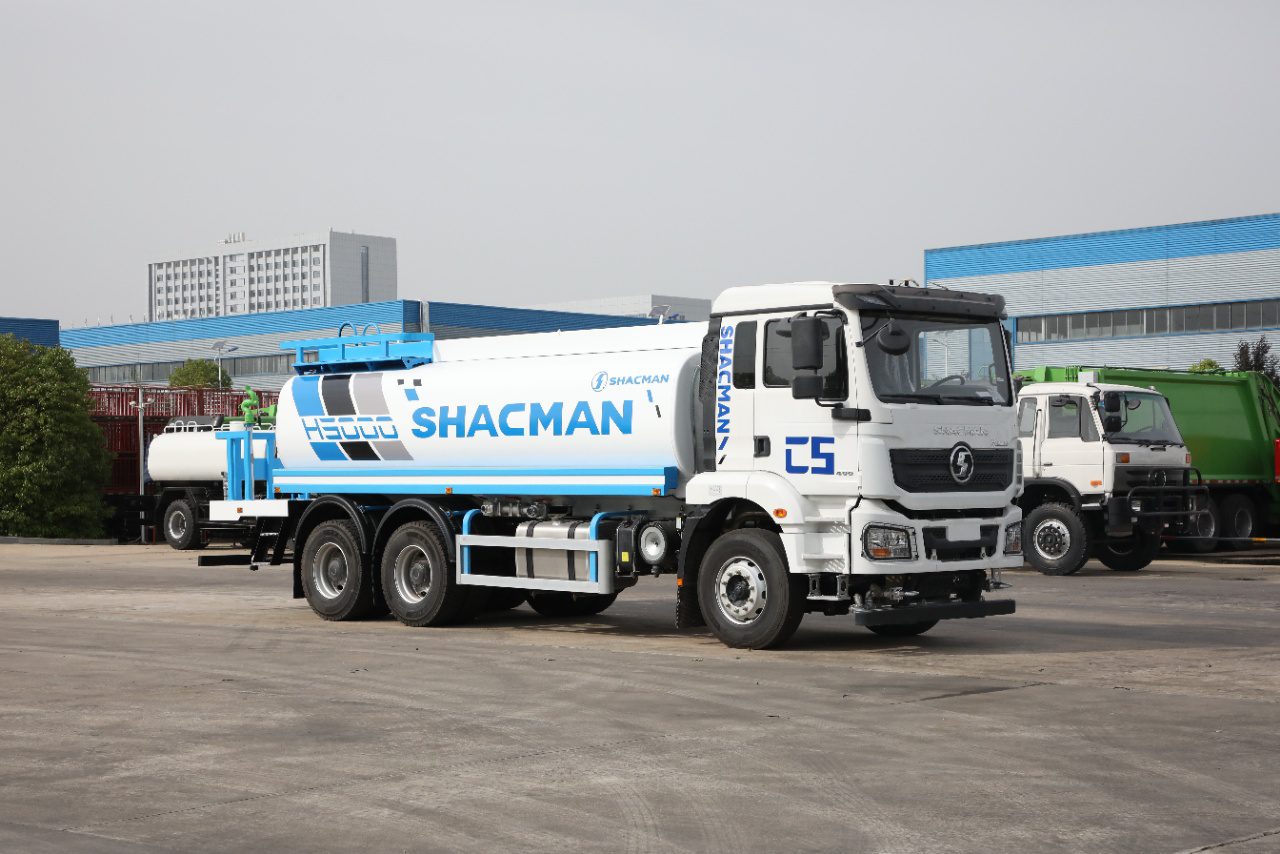

Tank volume: 20 cubic meters
Tank shape: Circular
Tank material: Q235 carbon steel
Tank body thickness: 5MM
Head thickness: 6MM
Three wave-dampening plates: 5MM
Welding process: Fully automatic robot welding
Standard equipment: 2 manholes, 500MM

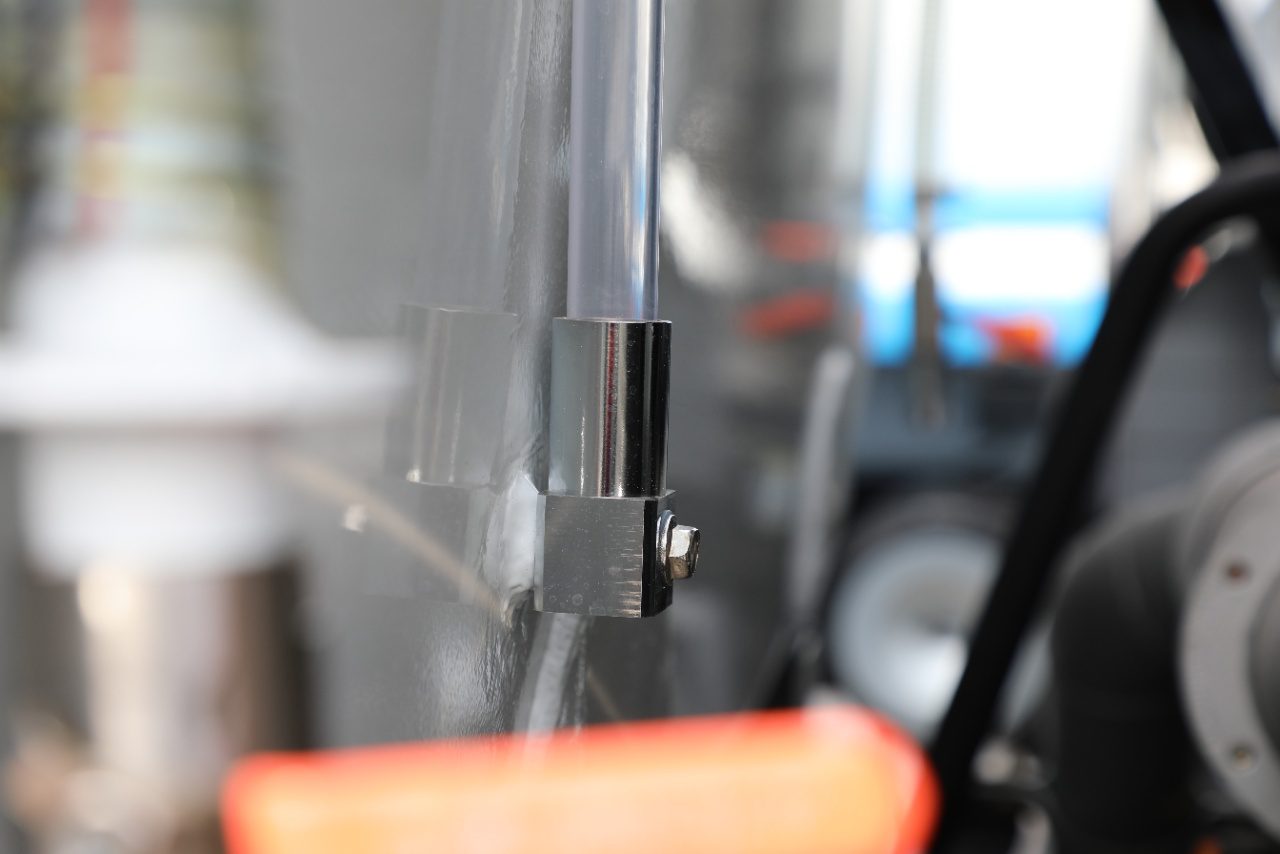

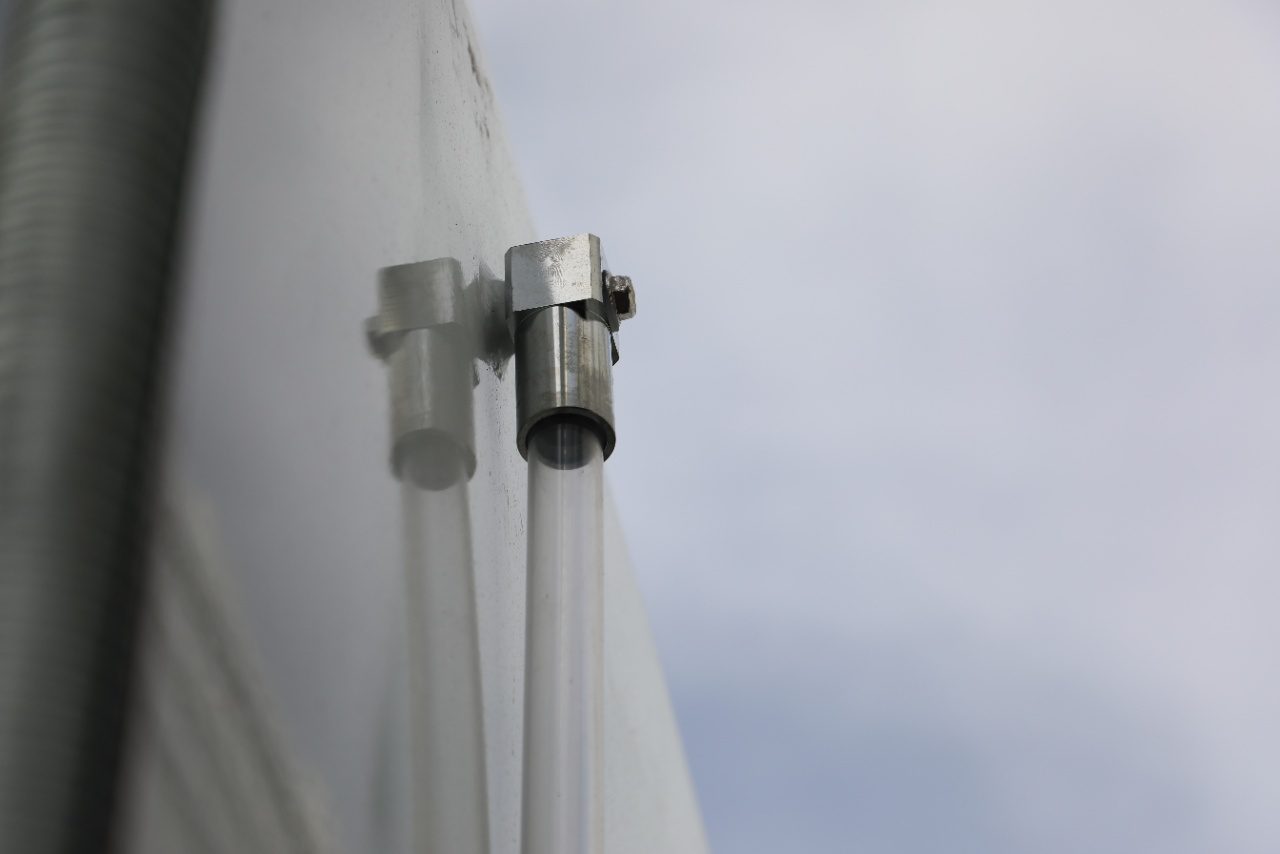

Large support structure for the tank: PVC bright pipe to display water level
Watering method: Self-suction/Firefighting water supply/Tank top
Water system: Core pump: Hangzhou Weilong 50/110 (export type)
Main pipe diameter: 80MM
Sub-pipe diameter: 50MM
Two square cannon tubes placed on both sides of the tank to hold 2 suction pipes
Eight water discharge systems

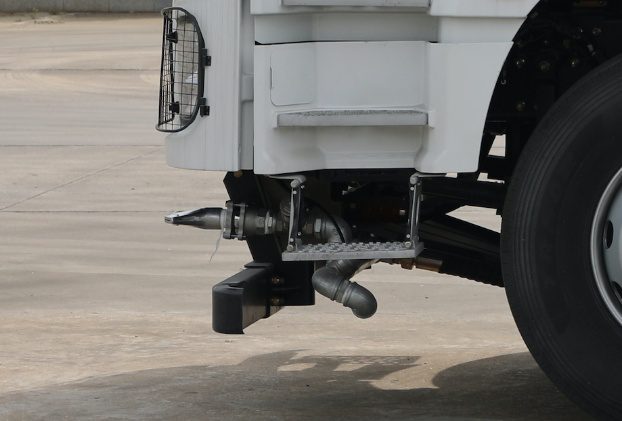

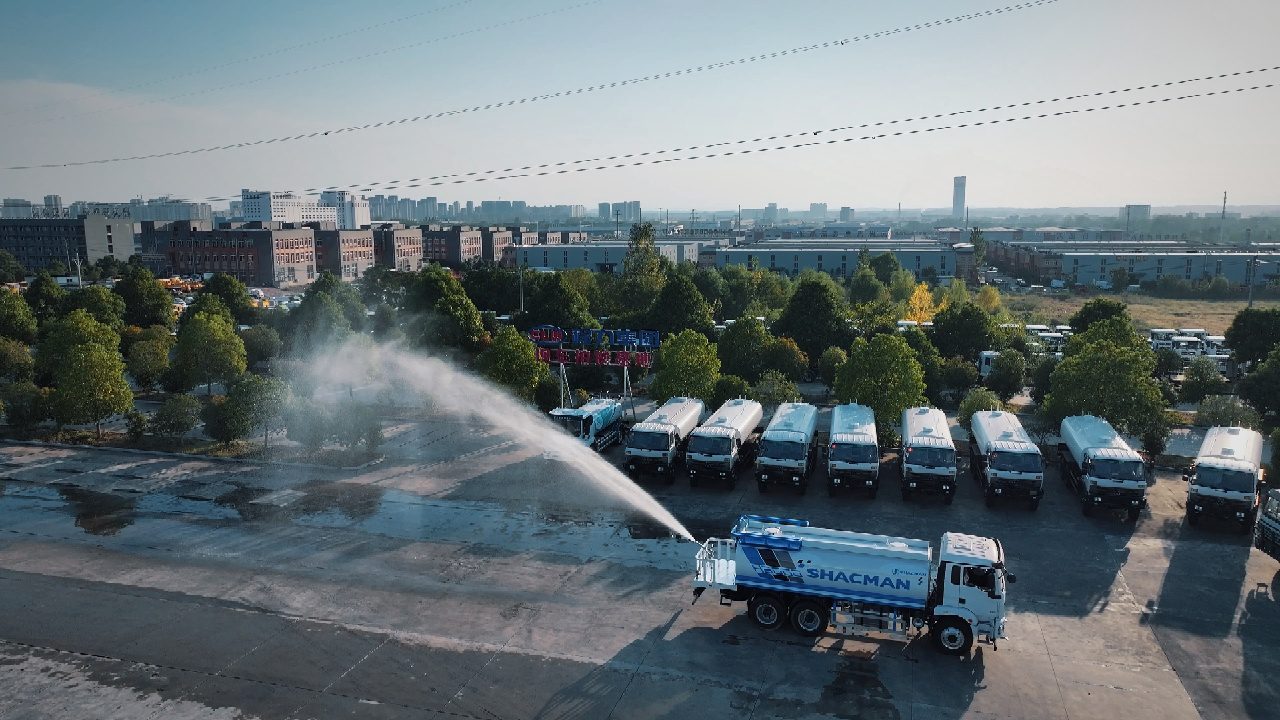

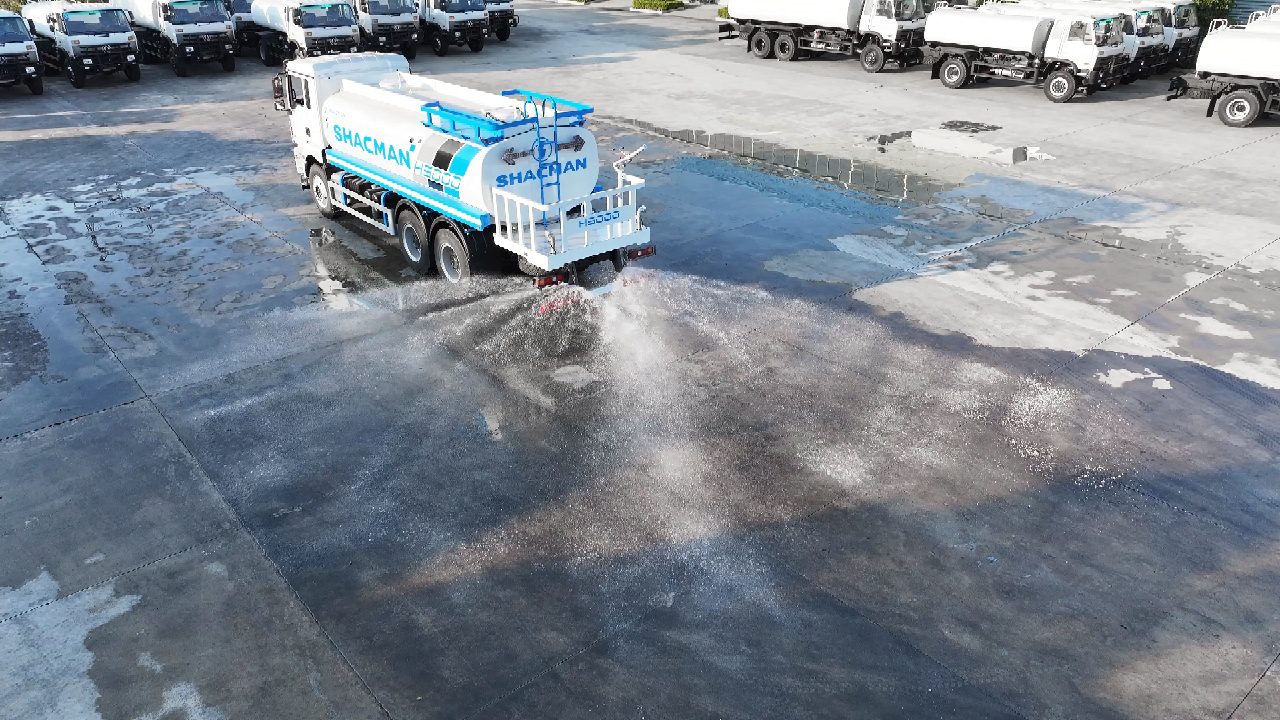

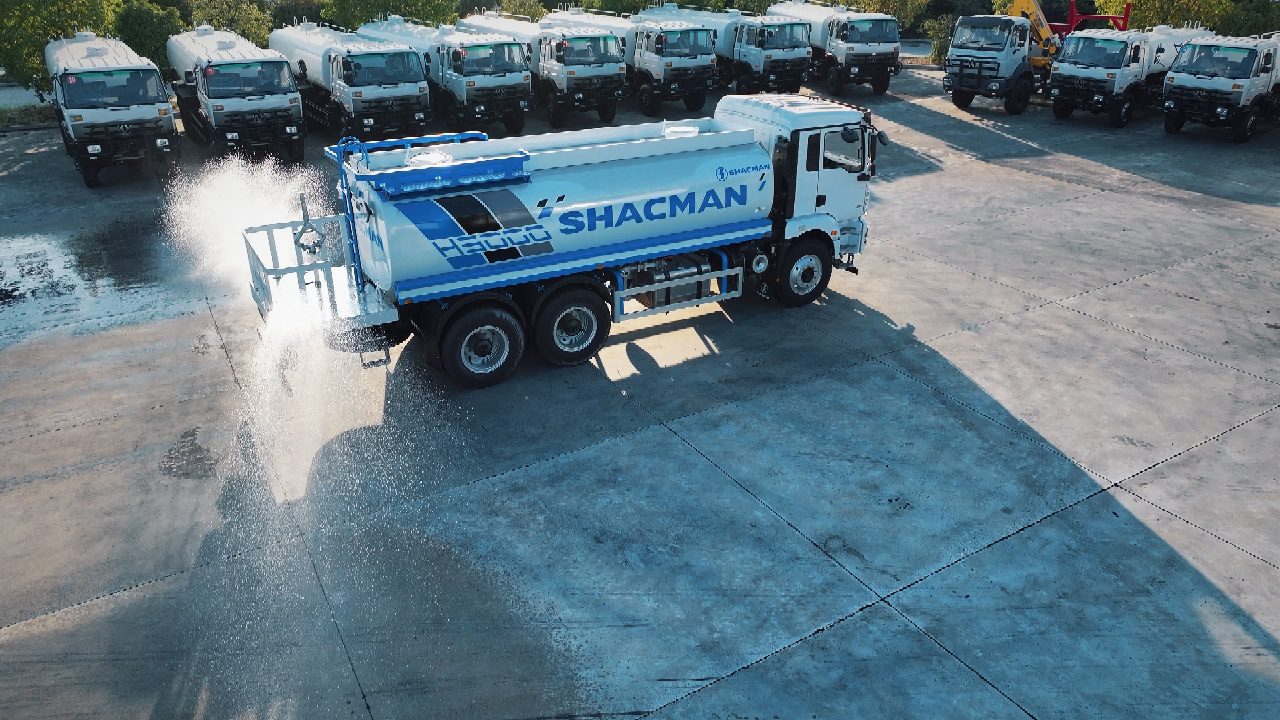

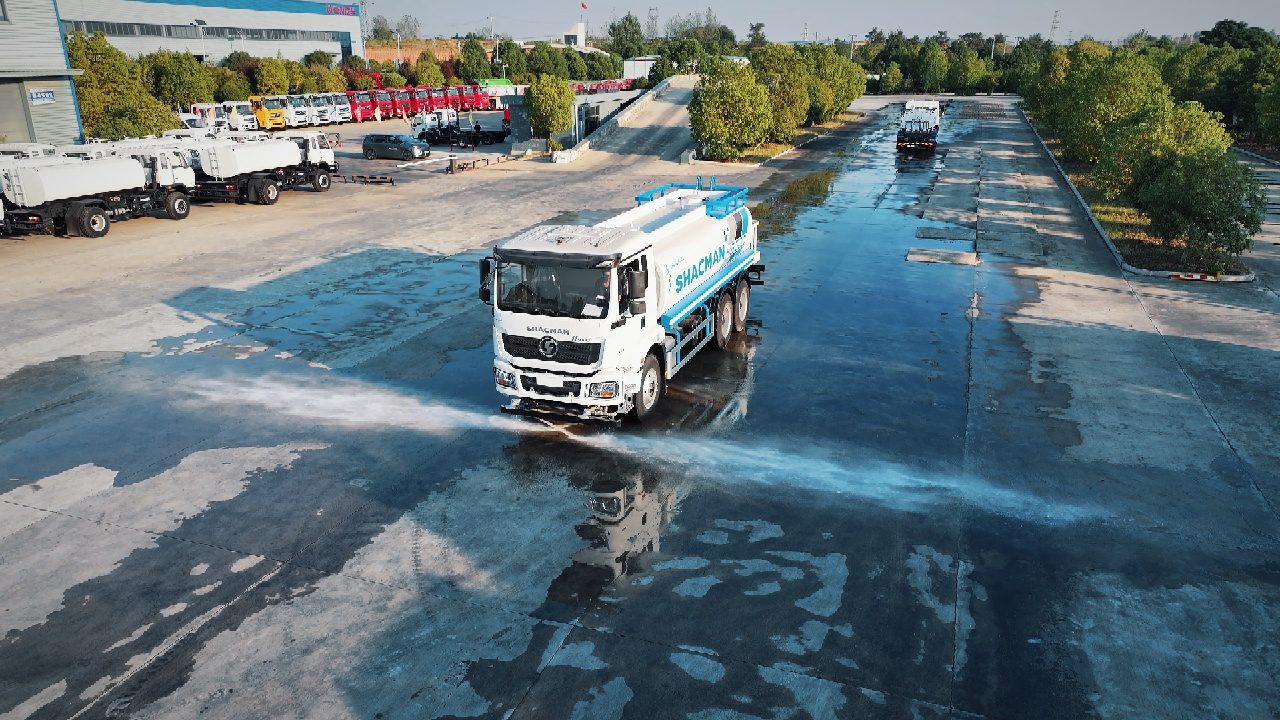

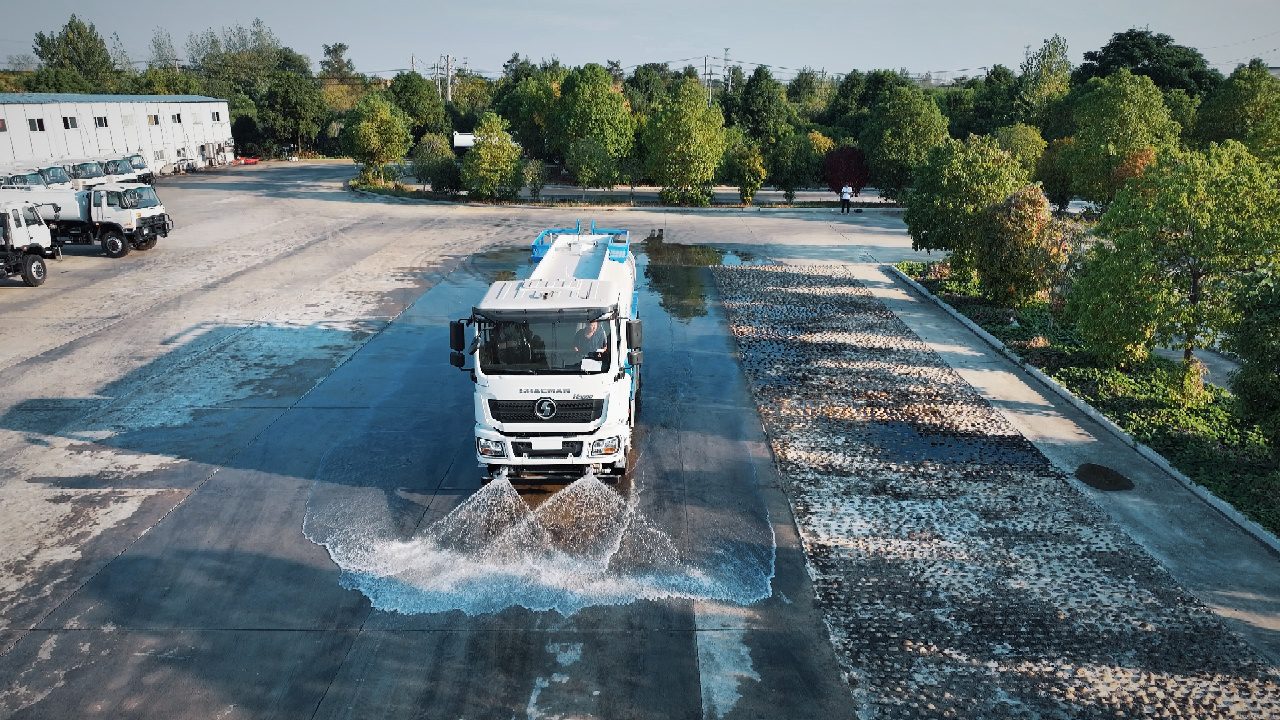

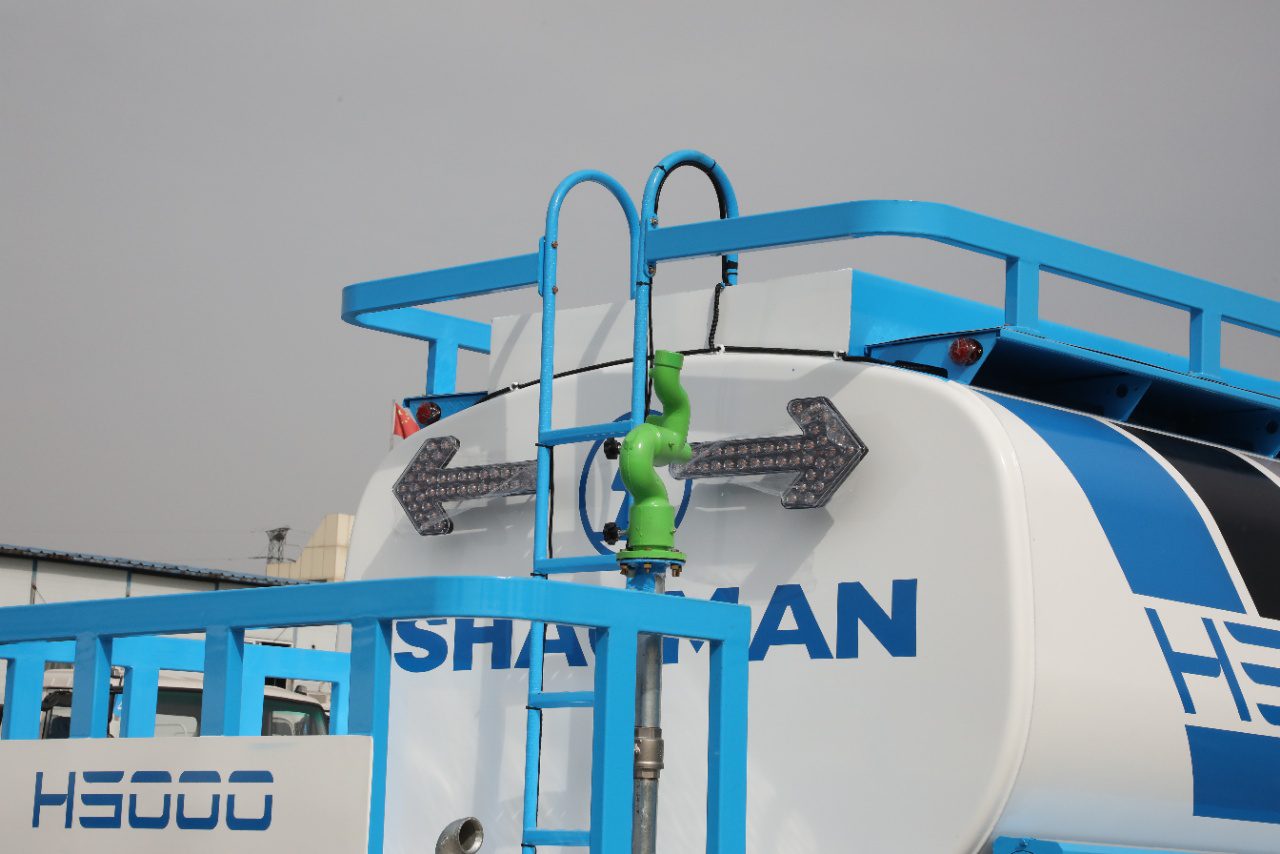

Spraying system functions: (Front jet duck bill nozzle 1 set, Opposite jet 1 set, Rear spray 1 set, Side spray 1 set) Manual/Automatic control, High-pressure water cannon, Advanced protection, and extra-large rear operation platform

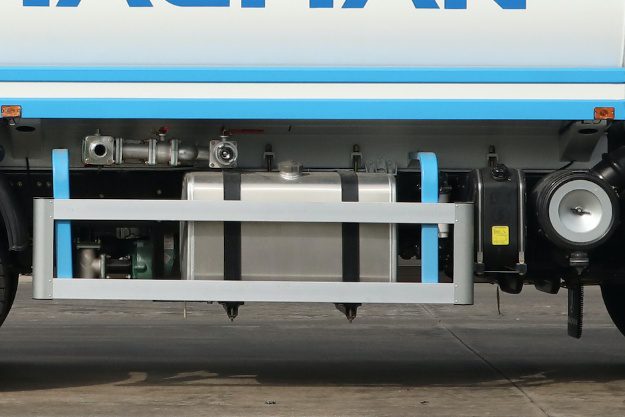

Protection: Side protection, High-strength aluminum alloy material
Rear mud guard: High-quality rubber material

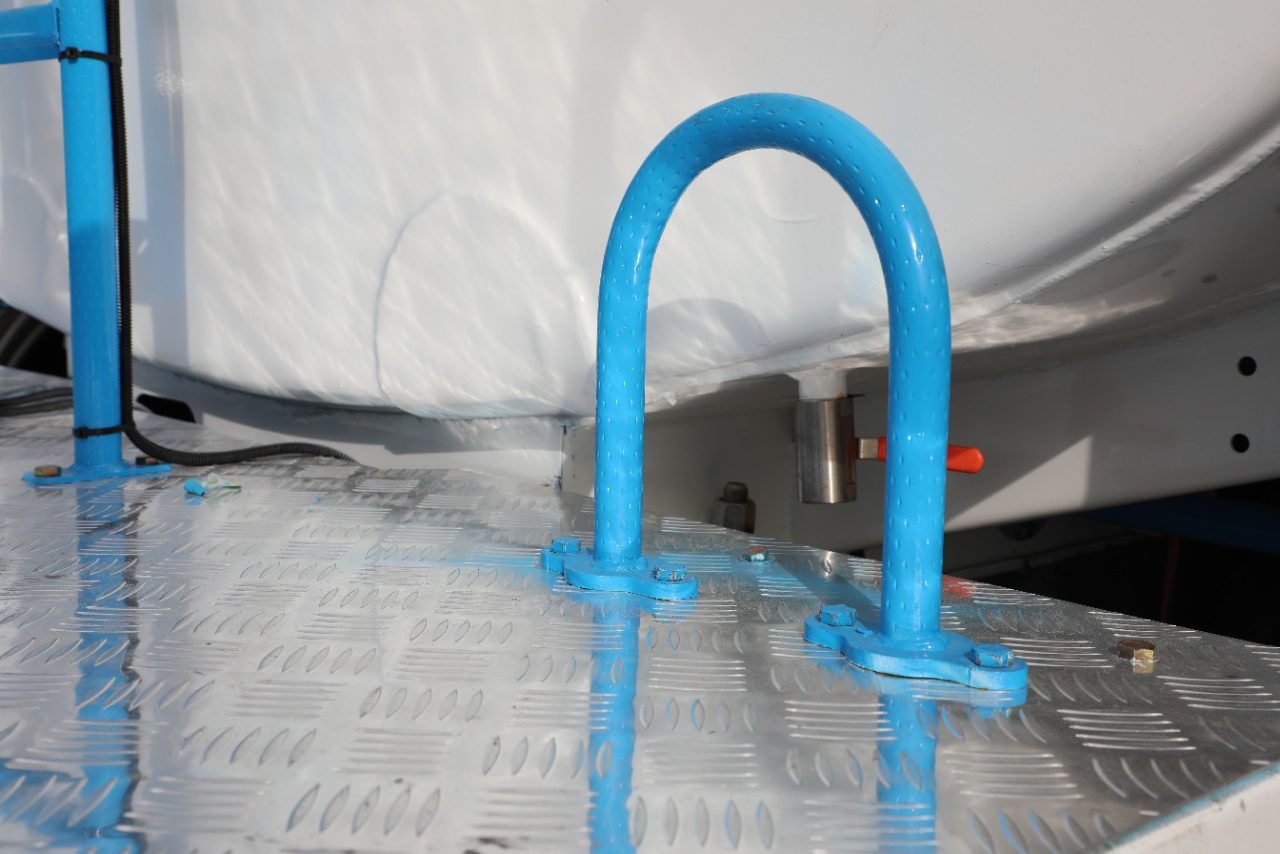

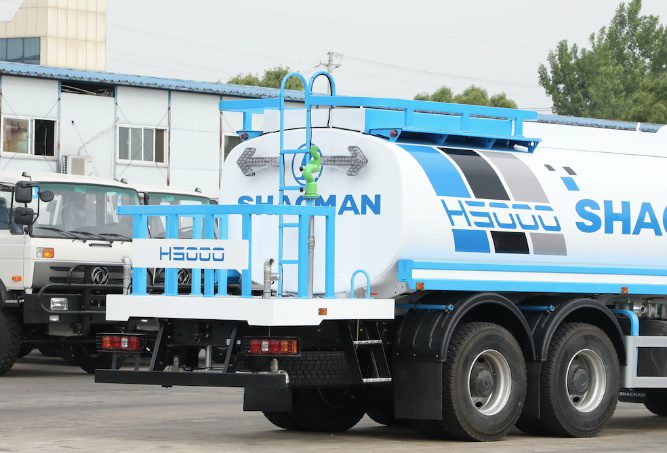

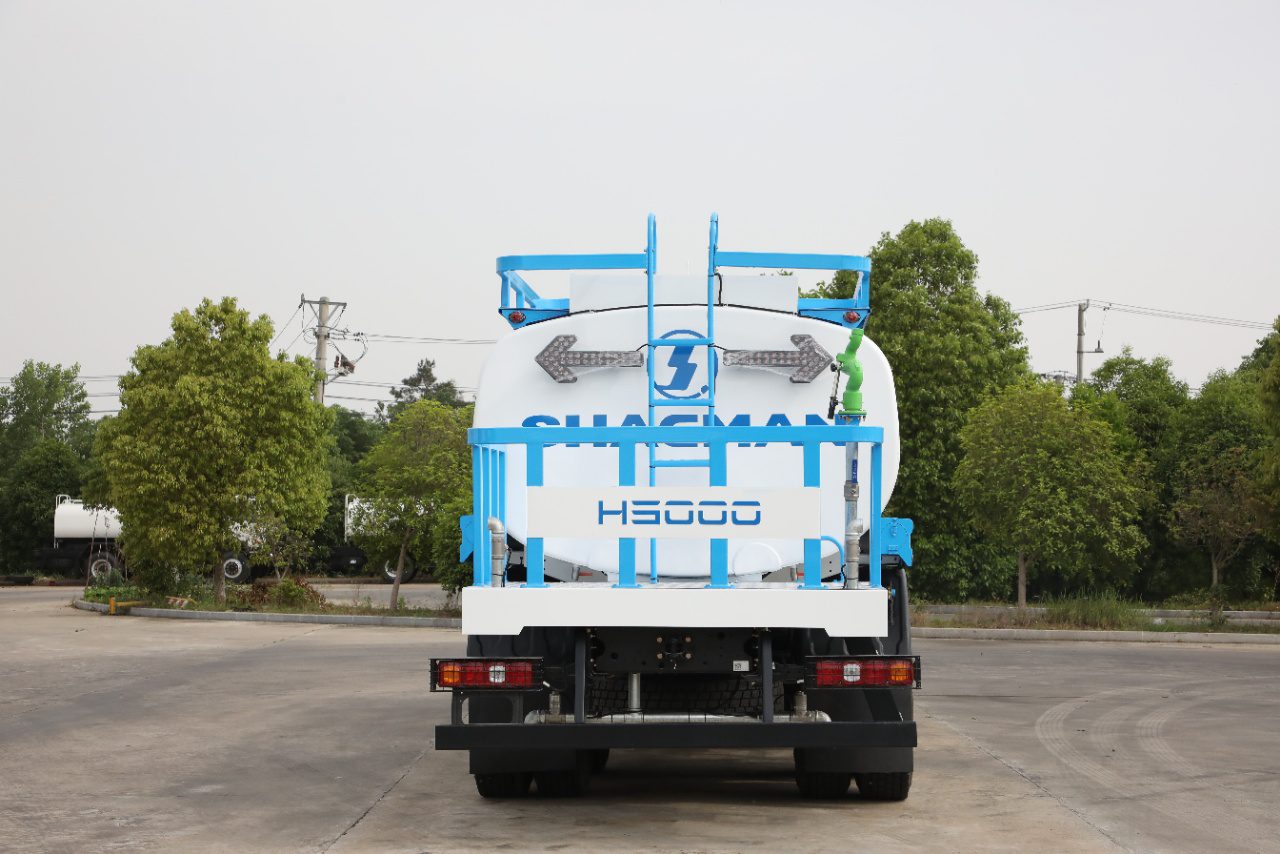

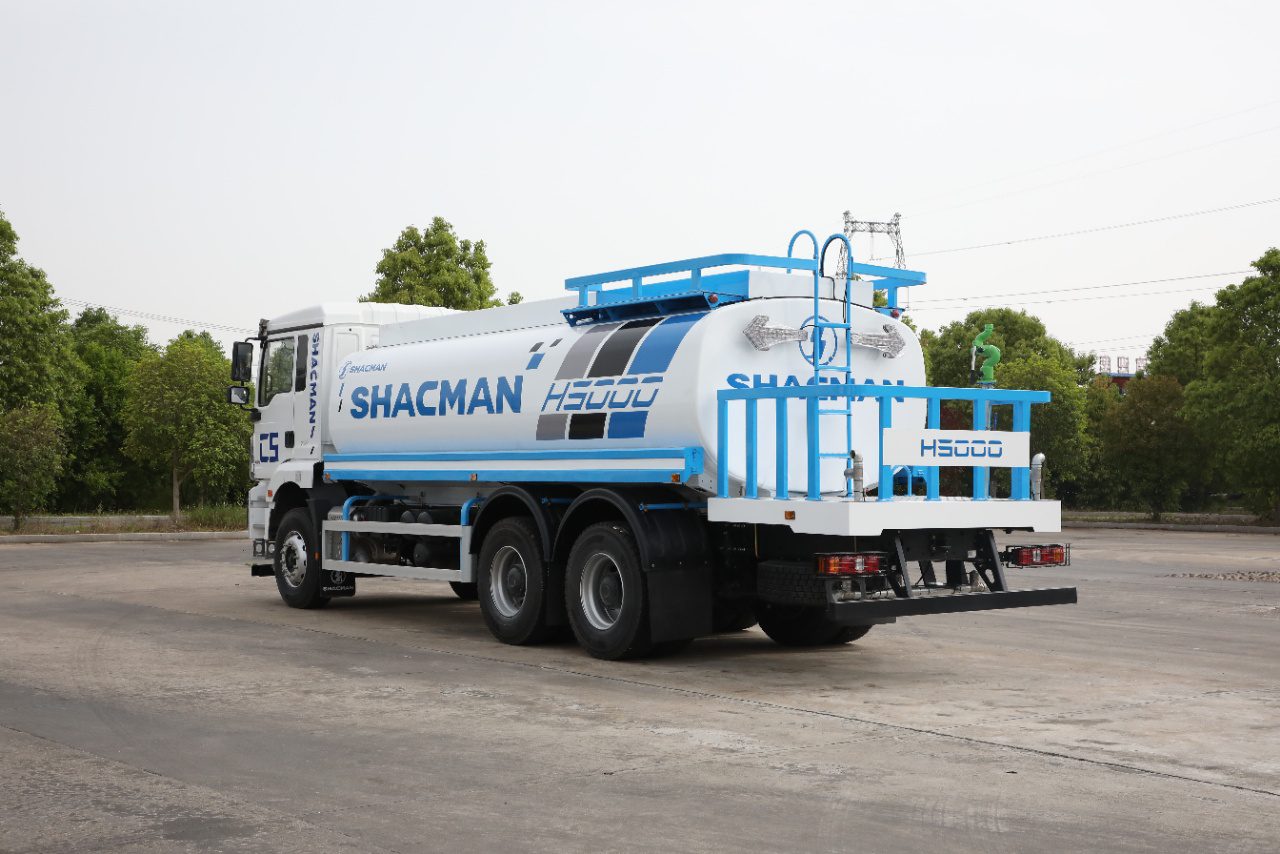

Rear operation platform: Large platform with Patterned plate installation, Platform guardrails raised and widened, Stairway with aluminum alloy Patterned plate installation, Guardrails raised and widened for enhanced safety
Rear bumper: Thickened and reinforced
Standard equipment: Dual head safety work lights
Painting: Powder coating process (8-step process)
Tank interior electro-coating anti-corrosion.
|
