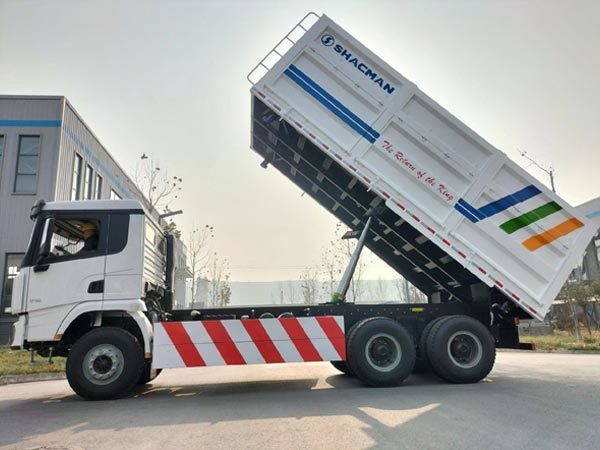

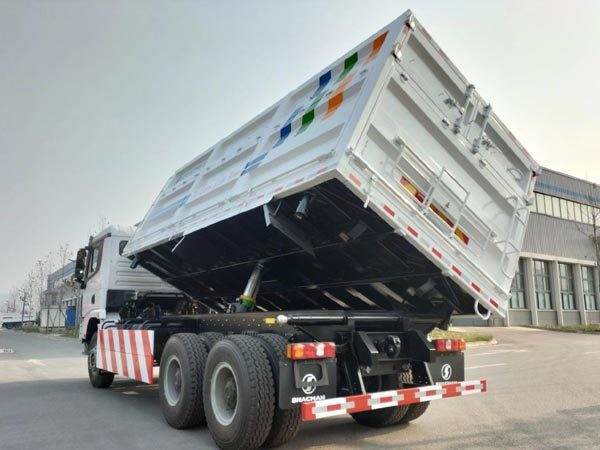

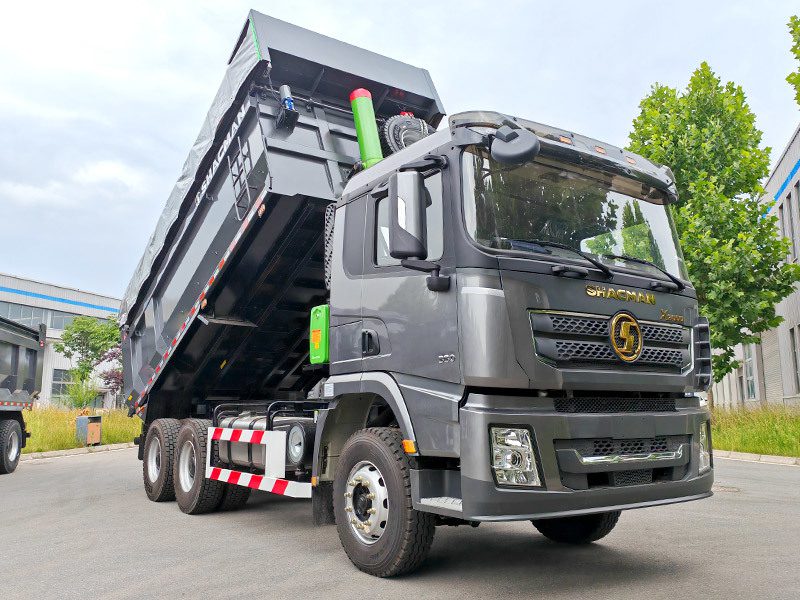

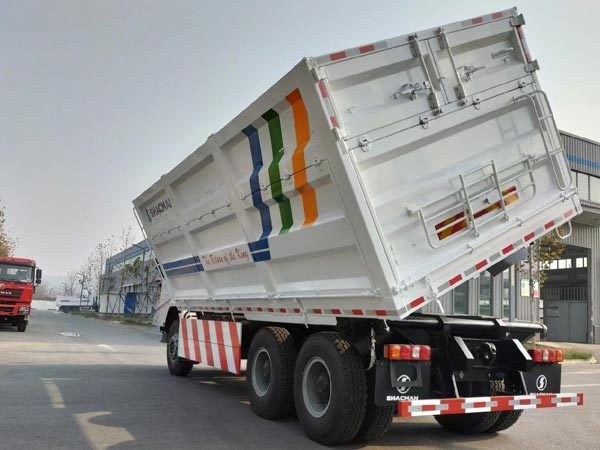

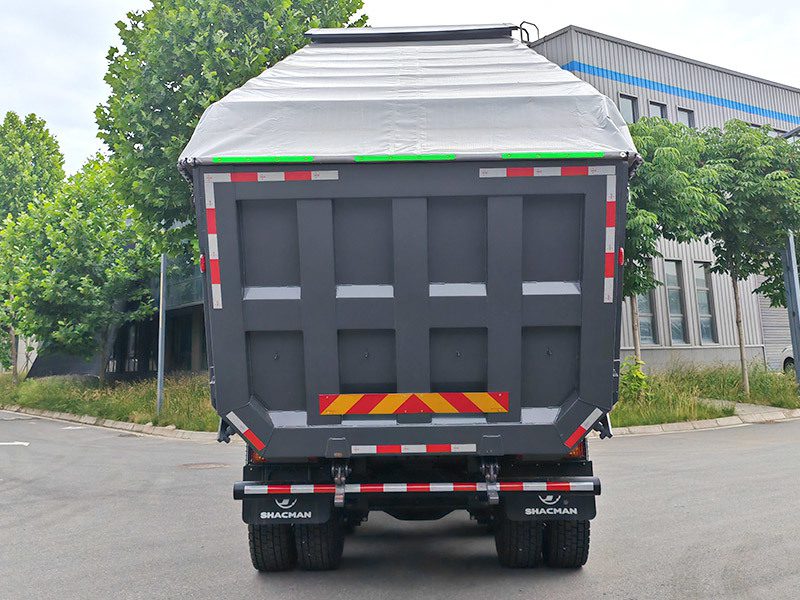

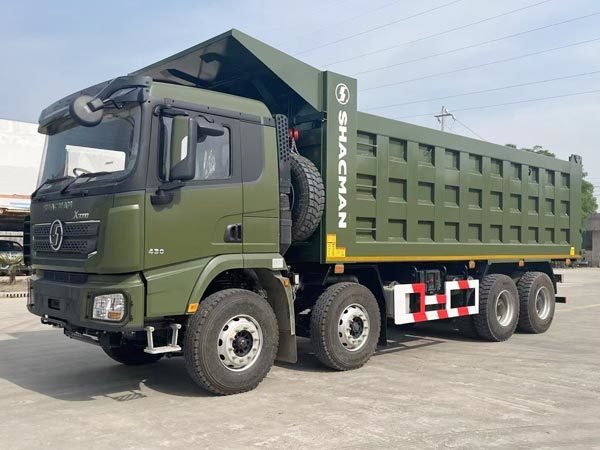

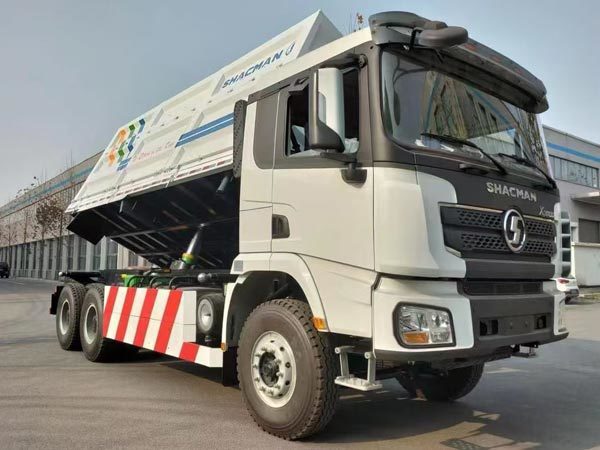

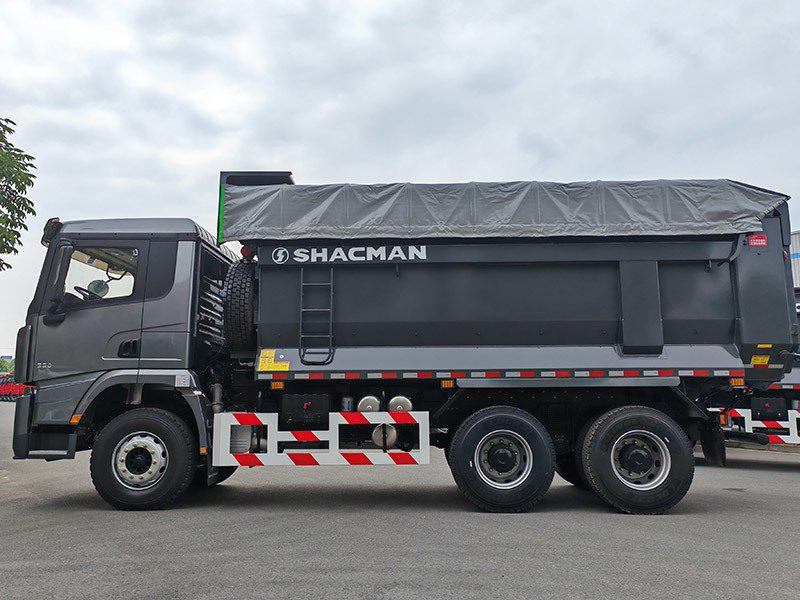

Shacman X3000 series is the latest product to be introduced. This vehicle series boasts many new innovations to increase performance, efficiency and comfort.
Special engine MAP, double cylinder load dump air compressor, throttle off technology, optimized fan control logic
New European style cabin design, full CFD optimization, drag coefficient decreased to 0.53
Intelligent electrical network architecture: Volvo electric design system
Engine inlet and cooling module, large air inlet cross section, higher air intake, patented cooling system, low air inlet resistance
MAN new single layer lightweight structure frame, formed from 6000T high strength hydraulic press
Assembled from the world’s top components and assemblies with the quality of European trucks and the first Chinese truck manufacturer to pass the European ECE-R29 standard heavy truck collision test.
Vehicle attendance rate 16.6% higher than competing products
Weichai high powered engines joint with AVL, BOSCH efforts to build golden power system
Cummins high powered engines, five key systems leading the world
FAST 12 speed transmission, unique structure of twin shaft main box, auxiliary box using fine pitch helical gear designHande 7.5 tons axle and 13 tons maintenance free 2.714 ratio single reduction axle
Internationally famous brand – Williams pedal mechanism, imported ZF steering machine, Eaton clutch
Model | SX32556T384 | |
Drive type | 6×4 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 3775+1400 |
Performance | Maximum speed/(km/h) | 40~55/75 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP10.380E22 | |
Power/(kw/HP) | 280kW / 380Hp | |
Maximum torque / (N.M)/rpm | 2060 N·M | |
Displacement/(L) | 11.596 L | |
Emission standard | Euro II | |
Gear box | Brand | FAST |
Model | 12JSD200T-B+QH50 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+7) | |
Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
Axles | Brand | HANDE |
Front axle | 9.5T front axle MAN technology | |
Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Inner dimension of loading space(mm) | 5600X2300X1500 |
Material thickness of loading(mm) | Bottom8,Side6 | |
Lifting mode | Multistage front lifting hydraulic system | |
Cab | Type | SHACMAN X3000 Medium-length flat cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. |
