Truck Details

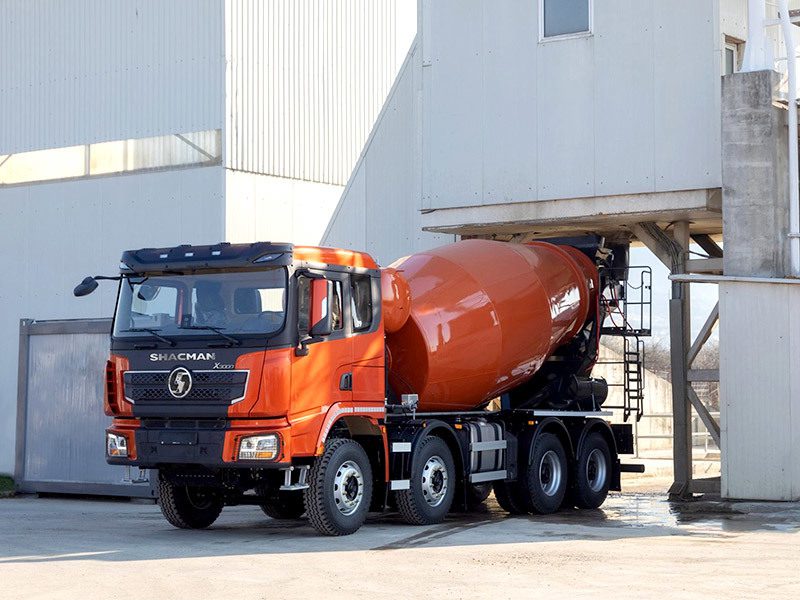

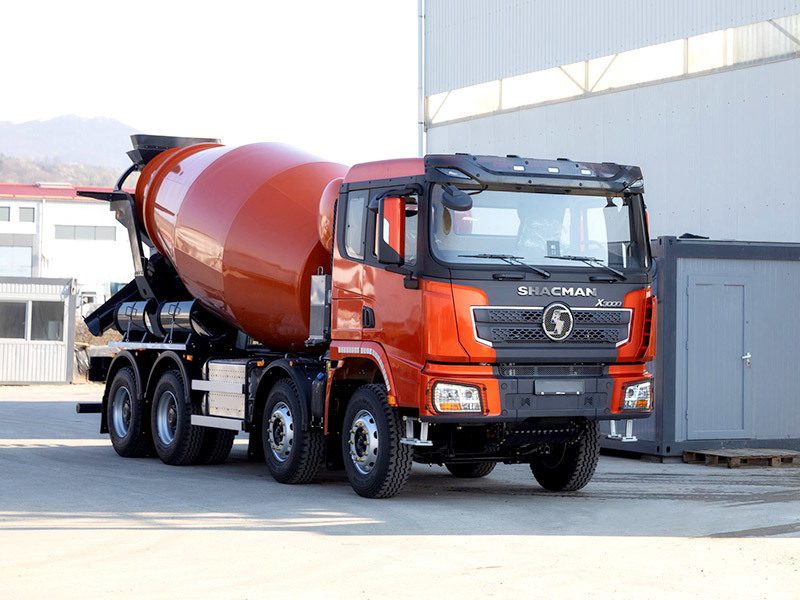

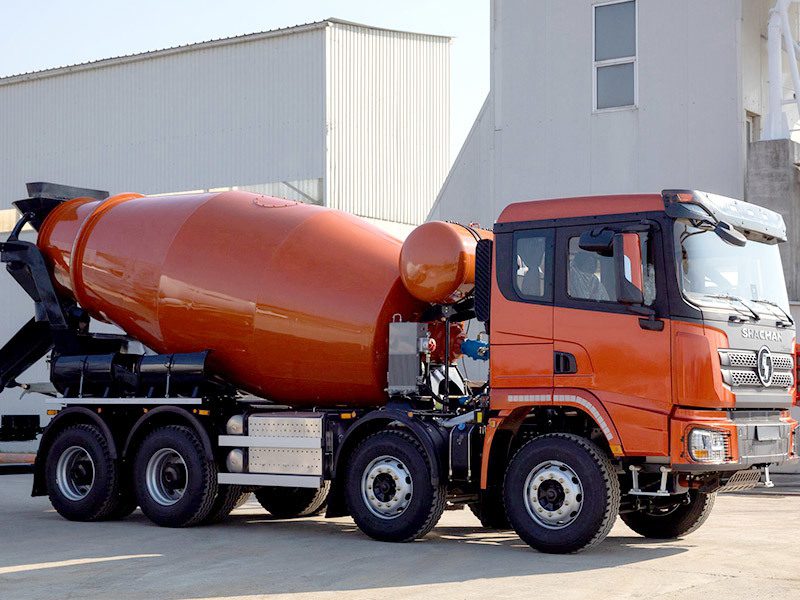

The Shacman X3000 cement mixer truck adopts advanced MAN technology to strengthen the chassis, with the characteristics of low center of gravity, high-strength wide straight beam, etc. The main and auxiliary beams are stamped and formed by a 6,000-ton press at one time, ensuring the firmness and durability of the vehicle. Its large-capacity mixer truck chassis adopts a three-layer 8+7+8 crossbeam structure. The widened frame design gives the vehicle super strong carrying capacity, which can meet the modification needs of large-capacity mixer trucks and is very suitable for concrete transportation operations under complex road conditions

The upper body and chassis of the Shacman X3000 cement mixer truck adopt an integrated design, which maximizes the vehicle performance and significantly improves the vehicle’s attendance rate. Shacman has established close cooperative relations with more than 120 professional modification companies across the country, including well-known companies such as Sany Heavy Industry, CIMC Vehicles, and Tangshan Yate, and can meet the diverse professional needs of users.

Platform	Shacman X3000
Drive type	8X4
Vehicle model	SX5315GSN5V456
Vehicle Weight	GVW：15 tons
	GCW：35 tons
			Frame	850×300(8+7)mm
Engine	Weichai	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 300 PS – 420 PS
		Torque: 1200 Nm – 2100 Nm
	Cummins	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 420 PS
		Torque: 1200 Nm – 2100 Nm
Transmission	12JSD200T+QH70
Clutch	φ430
Steering gear	ZF8098
Axle	Front axle: MAN 9.5 ton
	Rear axle: MAN 16-ton single or double reduction
	Gear ratio: 4.769 – 5.92
Suspension	Multi-leaf spring front and rear setup
Tires	315 / 80R22.5
	12R22.5
	12.00R20
Fuel tank	400 – 700 liter aluminum or steel tank
Dimensions(LxWxH)	11600X2490X3250
Volume(m³)	16
Wheelbase	1800+4575+1400mm
Approach/Departure angle(°)	20/12
Max.gradeability(%)	27
Cab	Type	Shacman X3000, lengthened flat roof
	Equipments	◆Rear window ◆Manual sunroof ◆Hydraulic driver seat with seatbelts ◆Hydraulic suspension of the cab ◆Electronic air conditioning with temperature control ◆Electric window ◆Radio with MP3 piayer
	Optional	● Air-cushioned driver’s seat ●Central locking

FAQ

Frequently Asked Questions

Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.

What are the certifications for your products?

We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.

Do you provide custom made Products service?

Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.

What ports of shipment are there?

Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.

what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW；Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French

About product warranty?

Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
