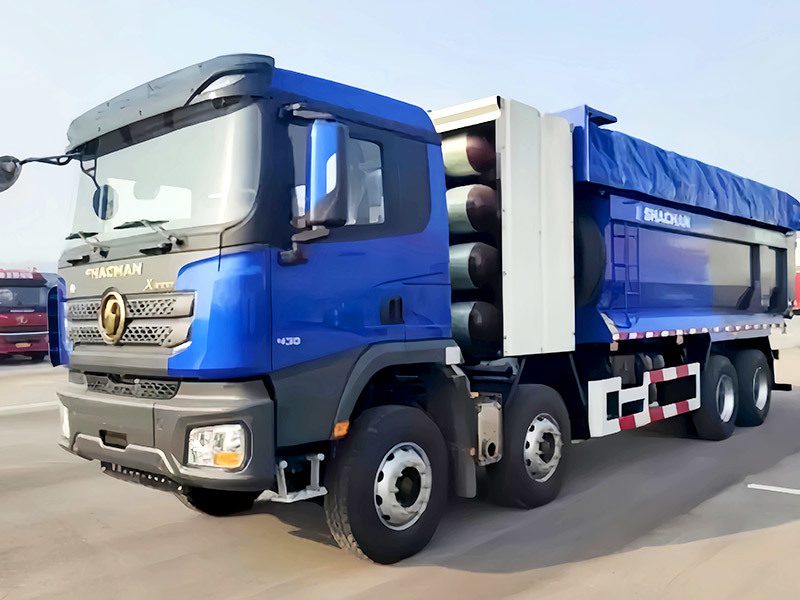

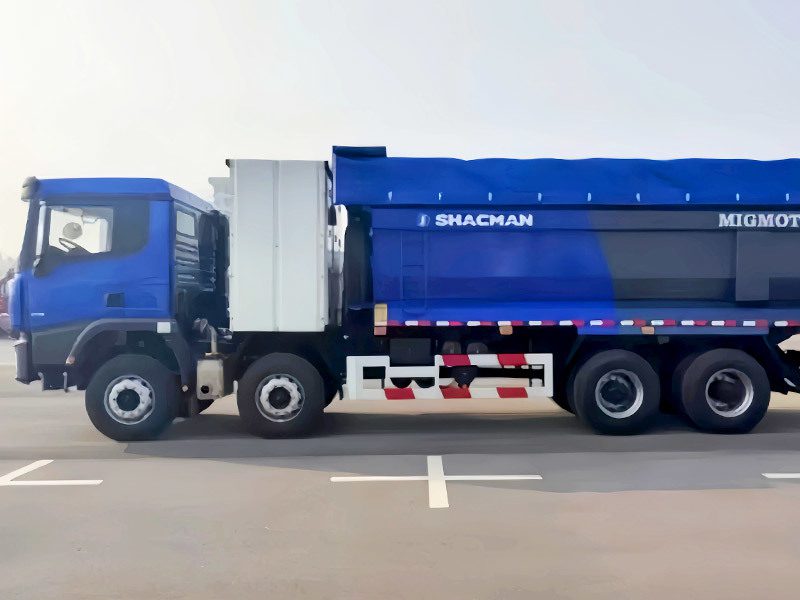

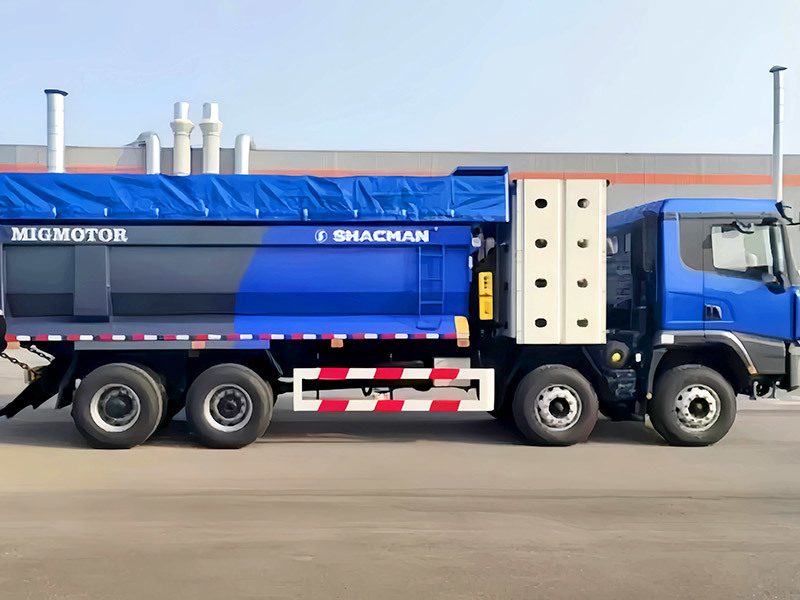

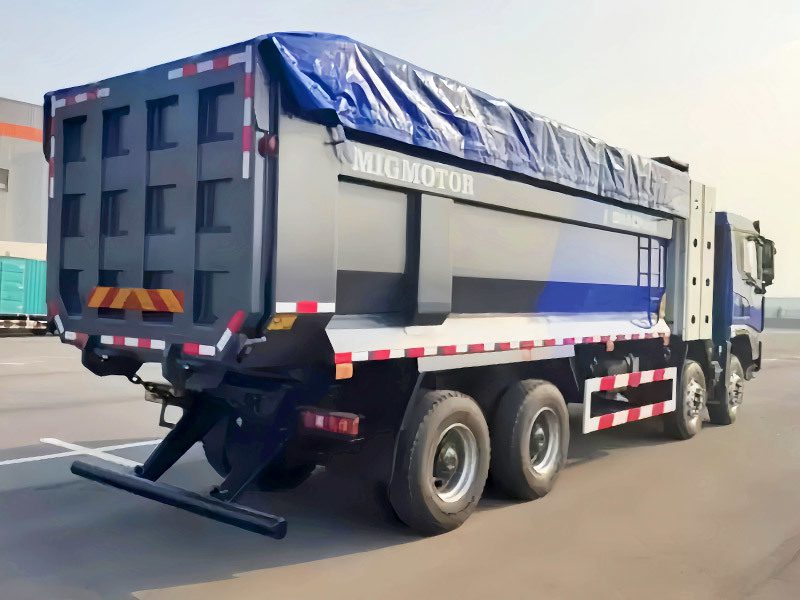

Shacman X3000 8×4 Standard Dump Truck is made of high-strength steel plate, which makes the vehicle’s center of gravity lower, lighter weight, and stronger carrying capacity. We have carefully designed and manufactured this product with strong carrying capacity, long service life, easy procurement of accessories, and easy maintenance. It is one of the best choices for customers.
Model | SX33184V486TR | |
Drive type | 8×4 | |
Weight | Gross Vehicle Weight | ≤70 |
Dimensions | Wheelbase/(mm) | 1800+4775+1400 |
Performance | Maximum speed/(km/h) | 45~55/75 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP13NG430E52 CNG | |
Power/(kw/HP) | 316kw / 430Hp | |
Maximum torque / (N.M)/rpm | 2060 N·M | |
Displacement/(L) | 11.596 L | |
Emission standard | Euro V | |
Gearbox | Brand | FAST |
Model | 12JSD200TA-B-QH50 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | desert air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 970-850×320(8+7+8) | |
Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
Axles | Brand | HANDE |
Front axle | 9.5T front axle MAN technology | |
Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 | |
Tires | Type | 12.00R20 |
Gas cylinders | Type | Gas cylinders 8×150L cylinders/ECE standard gas cylinders/dual refueling integrated refueling compartment, snap-in NGV1+pin type (Russia)/steel shroud |
Electrics | Type | 24V |
Battery | 180Ah Maintenance-free battery | |
Inner dimension of loading space(mm) | 6800X2300X1500 | |
Material thickness of loading(mm) | Bottom12,Side10 | |
Lifting mode | Multistage front lifting hydraulic system | |
Cab | Type | SHACMAN X3000 Mid-length flat roof cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension, ordinary rearview mirror, electric automatic thermostatic air conditioning, electric window shaker, manual flip, metal bumper, three-stage boarding pedal, desert air filter, water tank protection grille, taillight protection grille, iron gas storage brief, spare tire carrier, four-channel ABS, 180Ah maintenance-free battery, an electrostatic towing belt, 2kg fire extinguisher, parking wedge, SHACMAN logo, full English logo; rear surround guard, dual side door chrome horsepower mark, sunshade decorative light. |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
