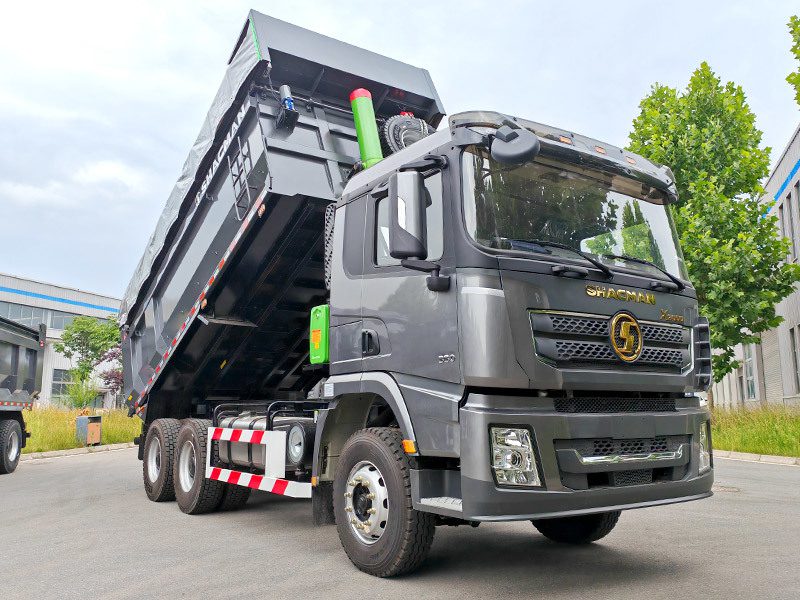

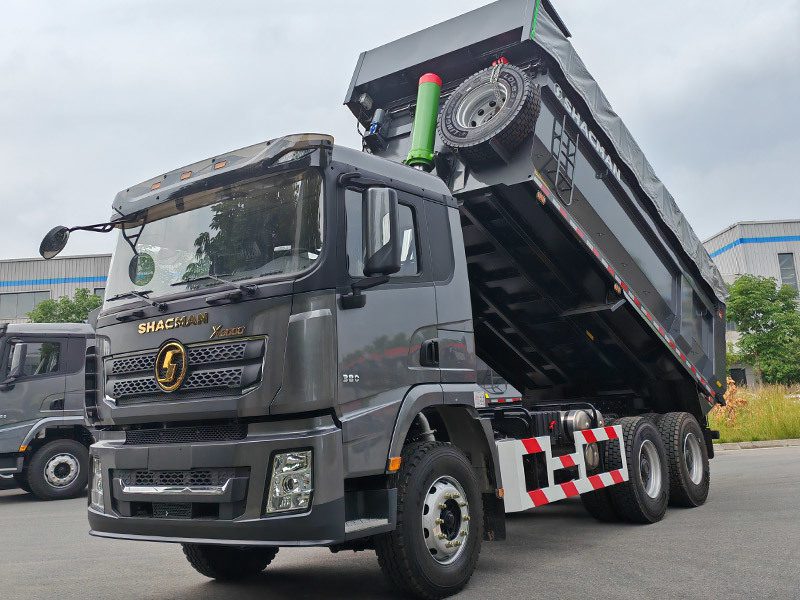

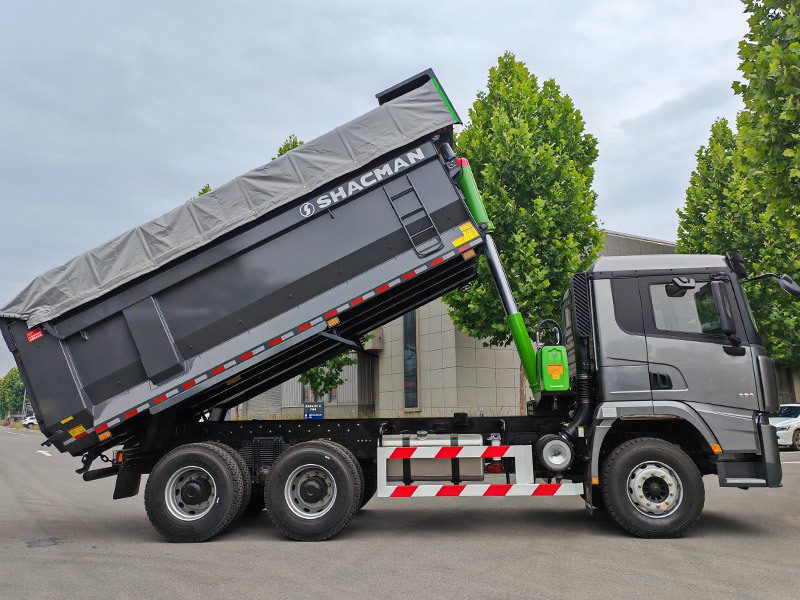

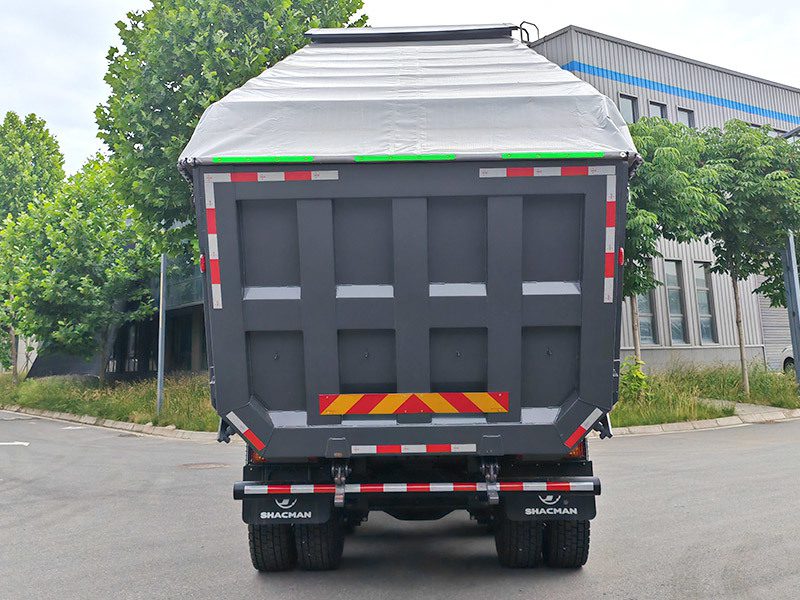

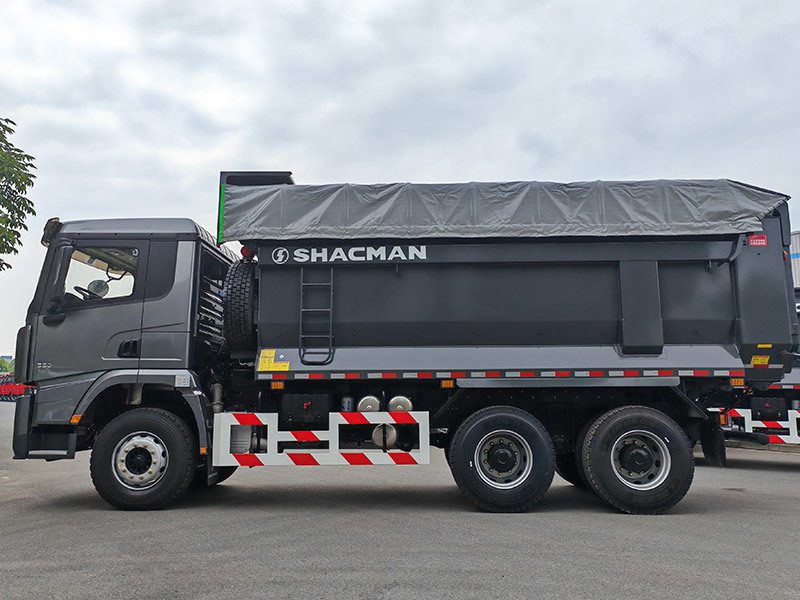

SHACMAN X3000 is committed to building high-end logistics transportation leaders. It has outstanding performance in fuel economy, reliability, intelligence, safety and comfort. It is fully qualified for the requirements of modern high speed and large horse power logistics transportation, the users said the comfort and fuel-saving are as same as European and American trucks.
Model | SX32556T384 | |
Drive type | 6×4 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 3775+1400 |
Performance | Maximum speed/(km/h) | 40~55/75 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP10.380E22 | |
Power/(kw/HP) | 280kW / 380Hp | |
Maximum torque / (N.M)/rpm | 2060 N·M | |
Displacement/(L) | 11.596 L | |
Emission standard | Euro II | |
Gear box | Brand | FAST |
Model | 12JSD200T-B+QH50 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+7) | |
Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
Axles | Brand | HANDE |
Front axle | 9.5T front axle MAN technology | |
Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Inner dimension of loading space(mm) | 5600X2300X1500 |
Material thickness of loading(mm) | Bottom8,Side6 | |
Lifting mode | Multistage front lifting hydraulic system | |
Cab | Type | SHACMAN X3000 Medium-length flat cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
