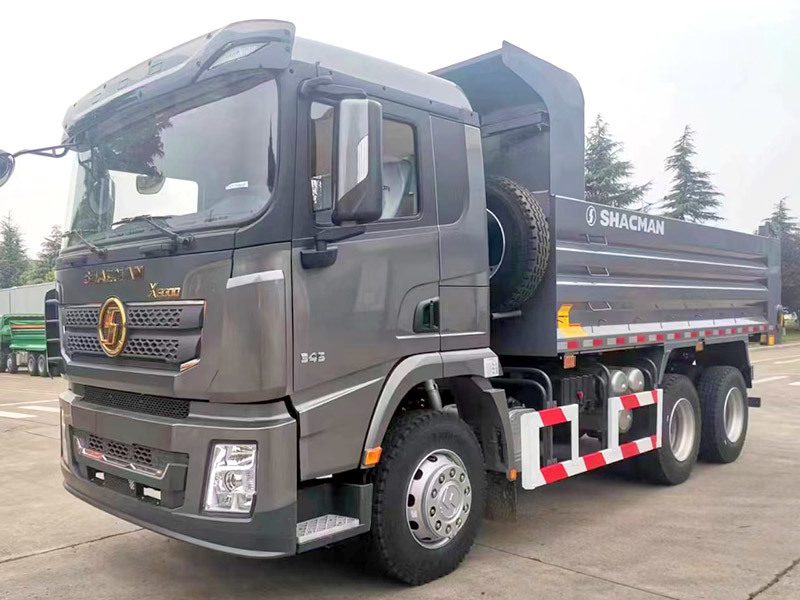

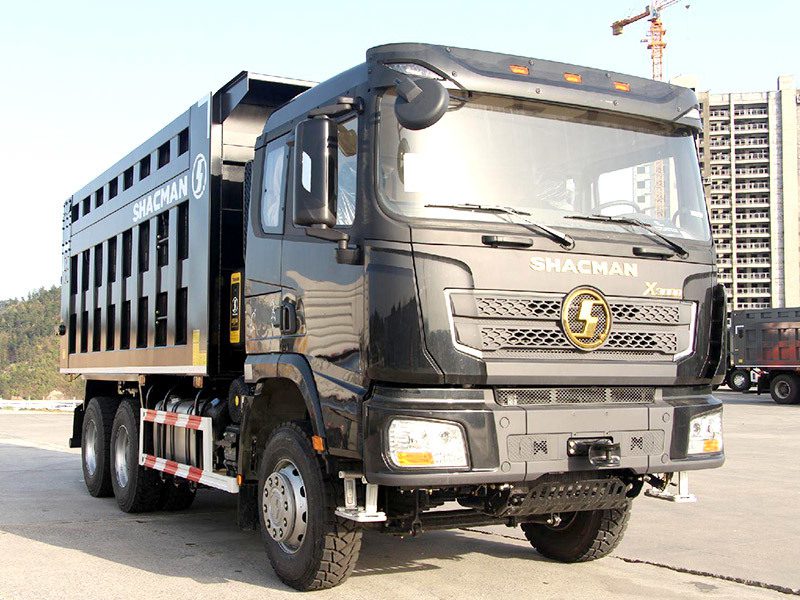

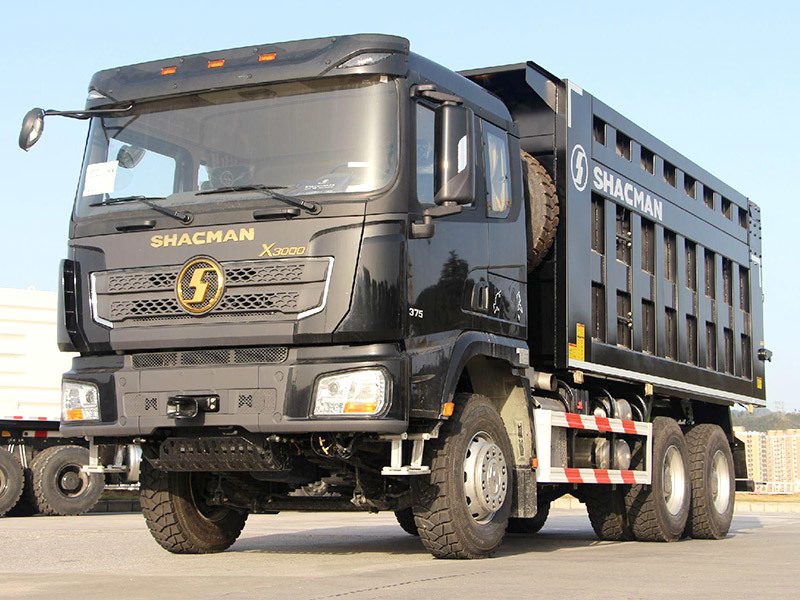

Shacman X3000 6×4 Standard Dump Truck is a dump truck with low fuel consumption, high efficiency, time-saving, and labor-saving features built by us. This dump truck uses high-quality metal material as the frame, with high hardness and long service life. The internal use of advanced high-quality generators, strong power, good stability, and excellent quality.
Model | SX32555V384 | |
Drive Type | 6×4 | |
Engine | Model | ISME345 30 |
Gearbox | Model | FFSAT 12JSD200T-B+QH50 |
Clutch | Type | φ345 Diaphragm spring clutch |
Air inlet | Type | Oil bath filter |
Brakes | Type | Drum brake |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Suspension | Type | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
Axle | Front axle | HANDE 9.5 TMAN front axle MAN technology |
Rear axle | HANDE 2*16T MAN axle; speed ratio: 5.262 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
Electrics | Battery | 165Ah Maintenance-free battery |
Inner dimension of loading space(mm) | 5600X2300X1500 | |
Material thickness of loading(mm) | Bottom8,Side6 | |
Lifting mode | Multistage front lifting hydraulic system | |
Cab | Type | SHACMAN X3000 extended high cab |
Hydraulic main seat, four-point hydraulic suspension cab, lever rear-view mirror, electric air conditioner, electric window shaker, 165Ah Maintenance-free battery, SHACMAN logo, full English logo. |
Have more questions? Don’t hesitate to reach out! We’re always here and happy to help.
We have ISO,OTTC,EAC,GCC,CE, third parties’ inspections are all available such SGS, BV ect.
Trucks We have a fixed model for each country, suitable for local use.For trailer,if you have your own design , we can produce according to your specification and drawing.
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Lianyungang ports, you can specify other ports according to your needs.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Spanish,French
Shacman Truck 12 months unlimited mileage;Trailer warranty 1 year;And we have service outlets in South America, Africa and many other countries.
