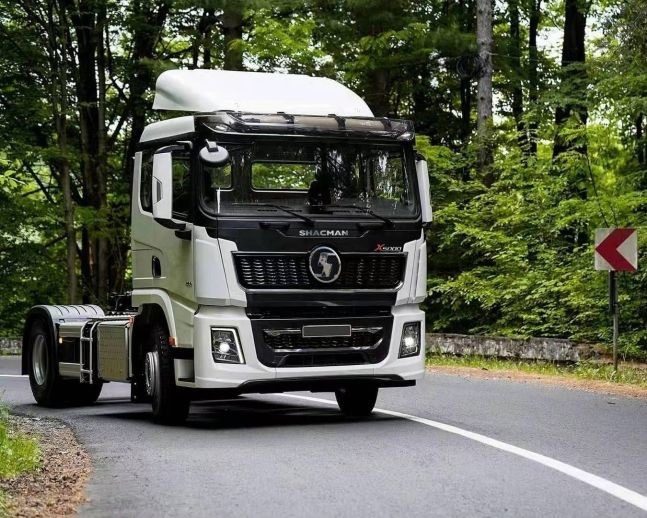

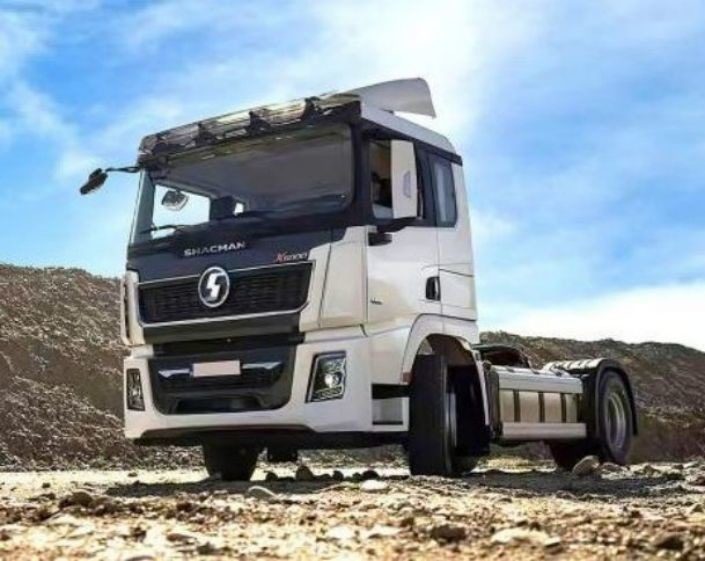

The X5000 4X2 Tractor Truck’s versatility allows it to be utilized across various industries, including logistics, construction, mining, and agriculture. Its powerful engine, towing capacity, and durability make it suitable for a wide range of applications, accommodating diverse transportation needs.
Model | SX41884V361 | |
Drive type | 4×2 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 3175+1400 |
Performance | Maximum speed/(km/h) | 45~60/90 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP12.430E50 | |
Power/(kw/HP) | 316kw / 430Hp | |
Maximum torque / (N · m)/rpm | 2000 N·M | |
Displacement/(L) | 11.596 L | |
Emission standard | Euro V | |
Gear box | Brand | FAST |
Model | 12JSD200T-B | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | (940-850)X300(single 8) | |
Suspension | Front | Multi-layer plate spring |
Rear | Multi-layer plate spring | |
Axles | Brand | HANDE |
Front axle | 7.5T front axle MAN technology | |
Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.266 | |
Tires | Type | 12R22.5 |
Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN X5000 Extended high roof cab |
Equipment | Air main seat, four-point air-suspended cab, electronically controlled automatic temperature-controlled air conditioning, electric window rollers, manual flip, telescopic axle maneuvering, regular 50 saddle, split fenders, 165Ah maintenance-free battery, SHACMAN logo, full English logo. |
